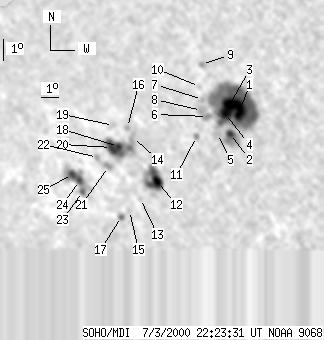

SOHO MDI 2000-07-03 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97 | 551 | 67 | 381 | -19.12 | 49.02 | -38.45 | 122.24 | 0.6947 | -493.5 | -207.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-03 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34 | 262 | 22 | 172 | -17.86 | 52.49 | -34.97 | 122.73 | 0.6509 | -1573.5 | -689.1 | |
| 5 | 33 | 3 | 22 | -18.95 | 51.72 | -35.75 | 123.67 | 0.6662 | -727.0 | -254.7 | |
| -1 | -1 | -1 | -1 | -17.71 | 51.96 | -35.50 | 122.17 | 0.6558 | 999999 | 999999 | |
| 14 | -1 | 9 | -1 | -18.10 | 51.66 | -35.80 | 122.50 | 0.6615 | -1018.9 | 999999 | |
| 0 | 11 | 0 | 7 | -18.98 | 51.03 | -36.43 | 123.24 | 0.6737 | -439.0 | -249.0 | |
| 0 | 8 | 0 | 5 | -18.27 | 50.69 | -36.77 | 122.08 | 0.6732 | -475.0 | -348.1 | |
| 0 | 5 | 0 | 3 | -17.55 | 50.61 | -36.86 | 121.06 | 0.6700 | -444.0 | -277.7 | |
| 0 | 10 | 0 | 6 | -18.02 | 50.44 | -37.02 | 121.59 | 0.6745 | 227.0 | 108.1 | |
| 0 | 5 | 0 | 4 | -16.07 | 50.89 | -36.57 | 119.22 | 0.6584 | -678.0 | -630.8 | |
| 0 | 3 | 0 | 2 | -17.00 | 50.58 | -36.88 | 120.31 | 0.6671 | -323.0 | -316.3 | |
| 0 | 5 | 0 | 4 | -19.15 | 49.88 | -37.58 | 122.72 | 0.6871 | -568.0 | -360.5 | |
| 12 | 58 | 9 | 42 | -21.18 | 47.15 | -40.31 | 123.64 | 0.7268 | -857.8 | -343.1 | |
| 0 | 3 | 0 | 2 | -21.97 | 45.92 | -41.54 | 123.89 | 0.7432 | -239.0 | -177.8 | |
| 0 | 8 | 0 | 6 | -19.32 | 46.35 | -41.11 | 120.87 | 0.7252 | 992.0 | 917.3 | |
| 0 | 4 | 0 | 3 | -22.53 | 45.08 | -42.38 | 124.09 | 0.7542 | 557.0 | 402.1 | |
| 0 | 4 | 0 | 3 | -18.90 | 46.20 | -41.26 | 120.26 | 0.7246 | 784.0 | 696.7 | |
| 1 | 6 | 1 | 5 | -22.82 | 44.50 | -42.96 | 124.12 | 0.7611 | 788.0 | 493.6 | |
| 5 | 53 | 3 | 39 | -19.74 | 45.43 | -42.03 | 120.90 | 0.7367 | 1209.5 | 652.7 | |
| 0 | 6 | 0 | 4 | -18.85 | 45.43 | -42.03 | 119.78 | 0.7324 | 721.0 | 676.9 | |
| 13 | -18 | 9 | -18 | -19.80 | 45.01 | -42.45 | 120.75 | 0.7413 | 762.2 | 999999 | |
| 0 | 8 | 0 | 6 | -20.64 | 44.55 | -42.91 | 121.54 | 0.7499 | 761.0 | 618.9 | |
| 0 | 5 | 0 | 4 | -20.27 | 44.04 | -43.42 | 120.83 | 0.7532 | 664.0 | 615.3 | |
| 2 | 54 | 2 | 42 | -21.81 | 42.57 | -44.89 | 121.93 | 0.7743 | 543.0 | 536.3 | |
| 5 | -23 | 4 | -23 | -21.33 | 42.58 | -44.88 | 121.37 | 0.7721 | 742.5 | 999999 | |
| 6 | -23 | 5 | -23 | -21.08 | 42.26 | -45.21 | 120.92 | 0.7741 | 720.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
