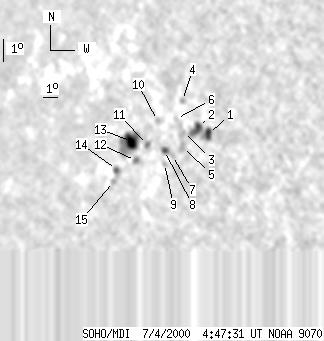

SOHO MDI 2000-07-04 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 156 | 20 | 133 | 19.19 | 30.23 | -53.70 | 68.72 | 0.8186 | 590.7 | 9.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-04 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 17 | 4 | 14 | 19.68 | 33.56 | -50.37 | 67.41 | 0.7877 | 675.0 | 383.8 | |
| 3 | 19 | 3 | 15 | 19.90 | 32.80 | -51.13 | 67.33 | 0.7957 | 663.6 | 170.8 | |
| 0 | 5 | 0 | 4 | 19.65 | 31.89 | -52.04 | 67.84 | 0.8040 | -182.0 | -225.1 | |
| 0 | 4 | 0 | 3 | 20.96 | 31.19 | -52.74 | 66.41 | 0.8132 | 419.0 | 419.3 | |
| 0 | 11 | 0 | 9 | 19.03 | 32.10 | -51.83 | 68.55 | 0.8008 | -312.0 | -347.4 | |
| 0 | 2 | 0 | 2 | 20.20 | 31.14 | -52.79 | 67.34 | 0.8122 | 98.0 | 179.8 | |
| 0 | 3 | 0 | 2 | 18.68 | 31.57 | -52.36 | 69.10 | 0.8052 | -432.0 | -390.2 | |
| 1 | 8 | 1 | 7 | 18.86 | 30.93 | -53.00 | 69.01 | 0.8116 | -505.5 | -371.9 | |
| 0 | 4 | 0 | 3 | 18.33 | 31.17 | -52.76 | 69.61 | 0.8085 | -311.0 | -333.9 | |
| 0 | 4 | 0 | 4 | 20.06 | 29.86 | -54.07 | 67.78 | 0.8238 | 195.0 | 128.5 | |
| 0 | 6 | 0 | 5 | 19.05 | 29.64 | -54.30 | 69.03 | 0.8241 | 93.0 | 54.5 | |
| 0 | 6 | 0 | 5 | 18.36 | 29.09 | -54.84 | 69.96 | 0.8281 | -418.0 | -374.8 | |
| 13 | 56 | 12 | 50 | 19.12 | 28.43 | -55.50 | 69.17 | 0.8353 | 777.9 | 130.3 | |
| 0 | 7 | 0 | 6 | 17.93 | 27.89 | -56.04 | 70.67 | 0.8384 | -538.0 | -522.6 | |
| 0 | 4 | 0 | 4 | 17.44 | 27.91 | -56.03 | 71.25 | 0.8376 | -644.0 | -548.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
