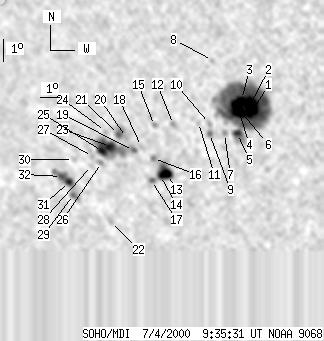

SOHO MDI 2000-07-04 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86 | 582 | 55 | 372 | -18.99 | 49.24 | -32.04 | 126.66 | 0.6252 | -666.1 | -254.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-04 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 338 | 13 | 206 | -18.00 | 52.56 | -28.72 | 127.98 | 0.5820 | -1830.0 | -655.1 | |
| -1 | -1 | -1 | -1 | -17.71 | 52.52 | -28.76 | 127.52 | 0.5801 | 999999 | 999999 | |
| 5 | -1 | 3 | -1 | -17.55 | 52.12 | -29.16 | 126.93 | 0.5834 | -1656.1 | 999999 | |
| 12 | -1 | 7 | -1 | -18.11 | 51.92 | -29.36 | 127.55 | 0.5900 | -1200.9 | 999999 | |
| 5 | -1 | 3 | -1 | -19.01 | 51.66 | -29.63 | 128.57 | 0.6001 | -782.8 | 999999 | |
| 8 | -1 | 5 | -1 | -17.77 | 51.79 | -29.49 | 126.96 | 0.5888 | -1277.1 | 999999 | |
| 0 | 4 | 0 | 3 | -19.03 | 51.02 | -30.26 | 128.04 | 0.6071 | -377.0 | -433.8 | |
| 0 | 4 | 0 | 3 | -15.94 | 51.02 | -30.27 | 123.62 | 0.5842 | -784.0 | -631.6 | |
| 0 | 6 | 0 | 4 | -19.05 | 50.29 | -31.00 | 127.44 | 0.6154 | -629.0 | -406.2 | |
| 0 | 4 | 0 | 2 | -18.62 | 50.37 | -30.91 | 126.93 | 0.6112 | -526.0 | -431.2 | |
| 0 | 3 | 0 | 2 | -18.60 | 49.84 | -31.44 | 126.45 | 0.6169 | -485.0 | -315.6 | |
| 0 | 5 | 0 | 3 | -18.72 | 48.58 | -32.70 | 125.62 | 0.6317 | 729.0 | 669.0 | |
| 13 | 38 | 9 | 25 | -20.90 | 47.76 | -33.52 | 127.87 | 0.6558 | -934.3 | -668.0 | |
| -13 | -13 | -13 | -13 | -20.95 | 47.39 | -33.89 | 127.66 | 0.6601 | 999999 | 999999 | |
| 0 | 4 | 0 | 3 | -18.80 | 47.61 | -33.67 | 124.98 | 0.6429 | -273.0 | -241.4 | |
| 0 | 6 | 0 | 4 | -20.22 | 47.22 | -34.07 | 126.58 | 0.6569 | 144.0 | 55.9 | |
| 0 | 9 | 0 | 6 | -21.19 | 46.87 | -34.42 | 127.57 | 0.6672 | -317.0 | -282.1 | |
| 0 | 4 | 0 | 3 | -19.73 | 46.73 | -34.55 | 125.57 | 0.6587 | 744.0 | 551.8 | |
| 0 | 5 | 0 | 3 | -19.91 | 46.27 | -35.01 | 125.49 | 0.6648 | 63.0 | -86.3 | |
| 0 | 3 | 0 | 2 | -19.36 | 46.05 | -35.23 | 124.61 | 0.6636 | 950.0 | 802.7 | |
| 0 | 13 | 0 | 9 | -19.25 | 45.67 | -35.62 | 124.19 | 0.6670 | 793.0 | 891.0 | |
| 0 | 6 | 0 | 4 | -23.08 | 44.20 | -37.09 | 128.02 | 0.7065 | 622.0 | 480.2 | |
| 8 | 71 | 6 | 48 | -19.78 | 45.11 | -36.17 | 124.51 | 0.6763 | 1236.1 | 578.1 | |
| 0 | 2 | 0 | 2 | -19.14 | 45.02 | -36.27 | 123.61 | 0.6733 | 618.0 | 543.6 | |
| 6 | -23 | 4 | -23 | -20.01 | 44.63 | -36.65 | 124.49 | 0.6828 | 758.6 | 999999 | |
| 0 | 4 | 0 | 3 | -20.50 | 44.44 | -36.84 | 124.98 | 0.6878 | 563.0 | 557.5 | |
| 0 | 8 | 0 | 5 | -20.25 | 44.03 | -37.25 | 124.40 | 0.6905 | 652.0 | 606.7 | |
| 0 | 3 | 0 | 2 | -20.65 | 43.87 | -37.42 | 124.79 | 0.6946 | 513.0 | 409.0 | |
| 0 | 9 | 0 | 7 | -21.96 | 42.49 | -38.79 | 125.54 | 0.7164 | 431.0 | 422.5 | |
| 0 | 3 | 0 | 2 | -20.42 | 42.97 | -38.32 | 123.93 | 0.7026 | 561.0 | 521.6 | |
| 5 | 30 | 3 | 21 | -21.39 | 42.45 | -38.83 | 124.82 | 0.7135 | 777.0 | 572.2 | |
| 3 | -31 | 2 | -31 | -21.19 | 42.08 | -39.21 | 124.34 | 0.7161 | 712.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
