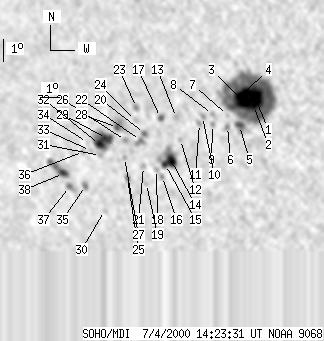

SOHO MDI 2000-07-04 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99 | 589 | 61 | 364 | -19.04 | 49.27 | -29.37 | 129.04 | 0.5967 | -725.1 | -220.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-04 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 315 | 16 | 187 | -17.87 | 52.52 | -26.12 | 130.37 | 0.5520 | -1853.4 | -670.3 | |
| -1 | -1 | -1 | -1 | -18.17 | 52.38 | -26.26 | 130.65 | 0.5562 | 999999 | 999999 | |
| 8 | -1 | 5 | -1 | -18.06 | 51.98 | -26.66 | 130.08 | 0.5596 | -1389.7 | 999999 | |
| 19 | -1 | 11 | -1 | -17.67 | 51.95 | -26.69 | 129.49 | 0.5567 | -1574.3 | 999999 | |
| 5 | 12 | 3 | 7 | -19.05 | 51.57 | -27.06 | 131.07 | 0.5727 | -791.6 | -371.1 | |
| 0 | 5 | 0 | 3 | -19.11 | 51.00 | -27.64 | 130.59 | 0.5794 | -726.0 | -522.2 | |
| 0 | 3 | 0 | 2 | -18.63 | 51.08 | -27.56 | 130.01 | 0.5745 | -437.0 | -250.3 | |
| 0 | 3 | 0 | 2 | -18.61 | 50.37 | -28.26 | 129.30 | 0.5820 | -757.0 | -582.5 | |
| 0 | 4 | 0 | 3 | -19.04 | 50.29 | -28.34 | 129.82 | 0.5865 | -635.0 | -400.5 | |
| 0 | 4 | 0 | 3 | -18.71 | 49.88 | -28.76 | 128.97 | 0.5883 | -572.0 | -498.2 | |
| 0 | 4 | 0 | 3 | -19.02 | 49.68 | -28.96 | 129.21 | 0.5930 | -329.0 | -273.3 | |
| 0 | 3 | 0 | 2 | -19.73 | 48.62 | -30.02 | 129.24 | 0.6102 | -432.0 | -309.7 | |
| 0 | 4 | 0 | 2 | -18.79 | 48.61 | -30.02 | 127.94 | 0.6029 | 712.0 | 552.0 | |
| 9 | 46 | 6 | 29 | -20.66 | 47.98 | -30.66 | 129.91 | 0.6243 | -1089.2 | -412.1 | |
| 3 | -14 | 2 | -14 | -20.84 | 47.64 | -31.00 | 129.86 | 0.6293 | -620.6 | 999999 | |
| 0 | 4 | 0 | 3 | -21.37 | 47.36 | -31.27 | 130.32 | 0.6363 | -430.0 | -323.7 | |
| 2 | 5 | 1 | 3 | -18.82 | 47.83 | -30.80 | 127.31 | 0.6117 | -644.5 | -373.0 | |
| 0 | 4 | 0 | 3 | -21.08 | 47.14 | -31.50 | 129.74 | 0.6363 | -493.0 | -379.2 | |
| 0 | 2 | 0 | 1 | -21.71 | 46.48 | -32.16 | 130.01 | 0.6479 | -309.0 | -230.5 | |
| 0 | 7 | 0 | 4 | -19.53 | 46.89 | -31.74 | 127.50 | 0.6272 | 1056.0 | 853.2 | |
| 0 | 5 | 0 | 3 | -20.97 | 46.51 | -32.12 | 129.08 | 0.6420 | 14.0 | 85.7 | |
| 0 | 9 | 0 | 6 | -19.84 | 46.63 | -32.01 | 127.69 | 0.6324 | 436.0 | 254.7 | |
| 0 | 5 | 0 | 3 | -18.42 | 46.74 | -31.90 | 125.86 | 0.6209 | 724.0 | 725.6 | |
| 0 | 5 | 0 | 3 | -18.98 | 46.57 | -32.07 | 126.50 | 0.6268 | 728.0 | 689.8 | |
| 0 | 6 | 0 | 4 | -21.47 | 45.58 | -33.06 | 128.99 | 0.6554 | 690.0 | 443.7 | |
| 0 | 5 | 0 | 3 | -19.86 | 45.87 | -32.77 | 127.12 | 0.6407 | -9.0 | 28.1 | |
| 0 | 3 | 0 | 2 | -20.60 | 45.64 | -32.99 | 127.92 | 0.6484 | 847.0 | 646.8 | |
| 3 | 18 | 2 | 12 | -19.32 | 45.60 | -33.04 | 126.18 | 0.6397 | 854.7 | 954.1 | |
| 8 | 51 | 5 | 33 | -19.81 | 44.92 | -33.71 | 126.33 | 0.6504 | 1247.4 | 771.9 | |
| 0 | 3 | 0 | 2 | -22.97 | 43.97 | -34.66 | 129.64 | 0.6823 | 504.0 | 482.8 | |
| 0 | 3 | 0 | 2 | -20.56 | 44.43 | -34.20 | 126.94 | 0.6608 | 596.0 | 517.3 | |
| 9 | -29 | 6 | -29 | -20.08 | 44.50 | -34.13 | 126.37 | 0.6568 | 877.2 | 999999 | |
| 0 | 3 | 0 | 2 | -20.36 | 43.97 | -34.67 | 126.34 | 0.6643 | 528.0 | 591.0 | |
| 0 | 2 | 0 | 1 | -20.02 | 43.90 | -34.73 | 125.84 | 0.6627 | 510.0 | 508.3 | |
| 0 | 7 | 0 | 4 | -21.90 | 43.29 | -35.35 | 127.81 | 0.6817 | 830.0 | 622.2 | |
| 0 | 4 | 0 | 3 | -20.42 | 43.59 | -35.04 | 126.14 | 0.6686 | 622.0 | 485.0 | |
| 0 | 7 | 0 | 5 | -21.98 | 42.42 | -36.21 | 127.29 | 0.6909 | 392.0 | 449.0 | |
| 6 | 28 | 4 | 19 | -21.42 | 42.27 | -36.37 | 126.48 | 0.6888 | 673.7 | 518.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
