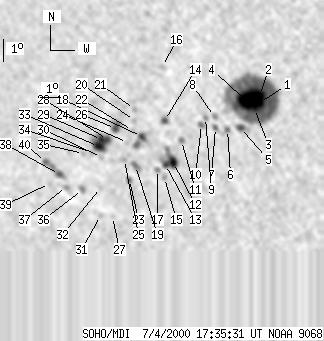

SOHO MDI 2000-07-04 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96 | 607 | 58 | 368 | -18.96 | 49.50 | -27.37 | 130.86 | 0.5746 | -648.4 | -249.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-04 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47 | 333 | 28 | 195 | -17.98 | 52.58 | -24.29 | 132.52 | 0.5330 | -1750.4 | -670.5 | |
| -1 | -1 | -1 | -1 | -17.68 | 52.62 | -24.25 | 132.13 | 0.5297 | 999999 | 999999 | |
| 4 | -1 | 2 | -1 | -18.24 | 52.31 | -24.56 | 132.60 | 0.5383 | -1349.8 | 999999 | |
| -1 | -1 | -1 | -1 | -17.91 | 51.95 | -24.92 | 131.72 | 0.5393 | 999999 | 999999 | |
| 3 | 13 | 2 | 8 | -19.07 | 51.54 | -25.34 | 132.92 | 0.5544 | -836.8 | -583.9 | |
| 0 | 4 | 0 | 3 | -19.17 | 50.91 | -25.96 | 132.40 | 0.5620 | -763.0 | -517.1 | |
| 0 | 6 | 0 | 3 | -19.10 | 50.36 | -26.51 | 131.73 | 0.5673 | -582.0 | -366.7 | |
| 0 | 5 | 0 | 3 | -18.63 | 50.40 | -26.47 | 131.10 | 0.5627 | -510.0 | -519.6 | |
| 0 | 5 | 0 | 3 | -18.68 | 49.97 | -26.90 | 130.74 | 0.5679 | -758.0 | -583.8 | |
| 0 | 6 | 0 | 3 | -18.99 | 49.72 | -27.15 | 130.93 | 0.5732 | -690.0 | -402.9 | |
| 0 | 5 | 0 | 3 | -19.71 | 48.64 | -28.23 | 130.86 | 0.5909 | -608.0 | -494.0 | |
| 9 | 42 | 5 | 26 | -20.67 | 48.06 | -28.81 | 131.61 | 0.6052 | -1016.0 | -424.7 | |
| 2 | -12 | 1 | -12 | -20.77 | 47.66 | -29.22 | 131.36 | 0.6103 | -616.0 | 999999 | |
| 3 | 6 | 2 | 4 | -18.87 | 47.99 | -28.88 | 129.09 | 0.5911 | -676.9 | -347.1 | |
| 0 | 4 | 0 | 3 | -21.34 | 47.48 | -29.39 | 131.95 | 0.6168 | -679.0 | -429.5 | |
| 0 | 6 | 0 | 3 | -16.57 | 48.30 | -28.57 | 126.08 | 0.5693 | 641.0 | 419.4 | |
| 0 | 5 | 0 | 3 | -21.00 | 47.22 | -29.66 | 131.26 | 0.6167 | -499.0 | -328.2 | |
| 4 | 20 | 2 | 12 | -19.59 | 46.74 | -30.13 | 128.96 | 0.6105 | 959.9 | 447.6 | |
| 0 | 9 | 0 | 6 | -20.86 | 46.17 | -30.70 | 130.15 | 0.6265 | 40.0 | -62.6 | |
| 0 | 4 | 0 | 2 | -18.91 | 46.53 | -30.34 | 127.85 | 0.6074 | 900.0 | 733.4 | |
| 0 | 4 | 0 | 2 | -18.44 | 46.63 | -30.24 | 127.28 | 0.6027 | 923.0 | 717.1 | |
| 0 | 5 | 0 | 3 | -19.35 | 46.35 | -30.52 | 128.29 | 0.6127 | 837.0 | 662.4 | |
| 0 | 6 | 0 | 4 | -21.48 | 45.72 | -31.15 | 130.58 | 0.6360 | 682.0 | 433.7 | |
| 0 | 2 | 0 | 1 | -19.87 | 45.99 | -30.88 | 128.69 | 0.6206 | -180.0 | -160.3 | |
| 0 | 5 | 0 | 3 | -20.62 | 45.68 | -31.19 | 129.41 | 0.6297 | 701.0 | 597.1 | |
| 4 | 15 | 3 | 10 | -19.29 | 45.53 | -31.34 | 127.51 | 0.6212 | 1015.2 | 1000.0 | |
| 0 | 2 | 0 | 1 | -23.15 | 44.44 | -32.43 | 131.60 | 0.6617 | 483.0 | 476.2 | |
| 3 | 45 | 2 | 29 | -19.77 | 45.03 | -31.85 | 127.76 | 0.6303 | 1182.6 | 814.0 | |
| 5 | -28 | 3 | -28 | -19.78 | 44.72 | -32.15 | 127.52 | 0.6336 | 1284.0 | 999999 | |
| 0 | 2 | 0 | 2 | -20.57 | 44.54 | -32.33 | 128.41 | 0.6412 | 377.0 | 369.1 | |
| 0 | 3 | 0 | 2 | -23.12 | 43.83 | -33.04 | 131.08 | 0.6675 | 447.0 | 349.9 | |
| 0 | 3 | 0 | 2 | -21.88 | 44.16 | -32.71 | 129.80 | 0.6549 | 640.0 | 626.4 | |
| 9 | -28 | 6 | -28 | -20.09 | 44.50 | -32.37 | 127.76 | 0.6382 | 989.1 | 999999 | |
| 0 | 2 | 0 | 2 | -20.36 | 44.09 | -32.78 | 127.79 | 0.6446 | 605.0 | 591.7 | |
| 0 | 4 | 0 | 2 | -20.42 | 43.67 | -33.20 | 127.53 | 0.6494 | 740.0 | 622.5 | |
| 0 | 7 | 0 | 5 | -22.00 | 43.21 | -33.66 | 129.20 | 0.6654 | 894.0 | 627.6 | |
| 0 | 7 | 0 | 5 | -21.90 | 42.41 | -34.46 | 128.47 | 0.6728 | 514.0 | 474.2 | |
| 3 | 8 | 2 | 5 | -21.38 | 42.19 | -34.68 | 127.65 | 0.6715 | 688.1 | 583.6 | |
| 0 | 2 | 0 | 2 | -21.80 | 41.56 | -35.31 | 127.71 | 0.6808 | 321.0 | 230.8 | |
| 0 | 12 | 0 | 8 | -20.84 | 41.61 | -35.26 | 126.54 | 0.6738 | 322.0 | 549.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
