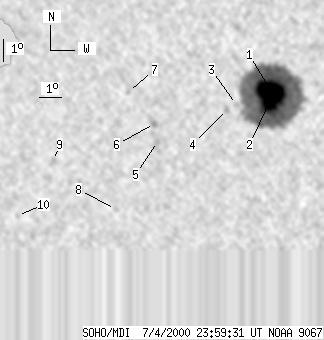

SOHO MDI 2000-07-04 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 550 | 45 | 301 | -20.10 | 63.87 | -9.47 | 158.93 | 0.4288 | -1877.2 | -540.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-04 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 515 | 45 | 281 | -19.69 | 64.39 | -8.95 | 159.48 | 0.4195 | -1958.2 | -608.3 | |
| -1 | -1 | -1 | -1 | -20.21 | 64.23 | -9.11 | 159.61 | 0.4281 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -20.27 | 62.86 | -10.48 | 156.91 | 0.4369 | -417.0 | -401.3 | |
| 0 | 4 | 0 | 2 | -20.49 | 62.41 | -10.93 | 156.26 | 0.4429 | -448.0 | -352.8 | |
| 0 | 4 | 0 | 2 | -21.93 | 59.29 | -14.05 | 152.12 | 0.4837 | 721.0 | 752.5 | |
| 0 | 5 | 0 | 3 | -21.14 | 59.23 | -14.11 | 151.19 | 0.4737 | 809.0 | 753.7 | |
| 0 | 3 | 0 | 2 | -19.77 | 58.23 | -15.11 | 147.92 | 0.4637 | 727.0 | 666.6 | |
| 0 | 4 | 0 | 2 | -24.98 | 57.04 | -16.30 | 151.73 | 0.5391 | 404.0 | 351.2 | |
| 0 | 9 | 0 | 5 | -22.85 | 54.53 | -18.81 | 145.91 | 0.5323 | 630.0 | 523.9 | |
| 0 | 3 | 0 | 2 | -25.35 | 52.46 | -20.88 | 145.98 | 0.5779 | 776.0 | 619.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
