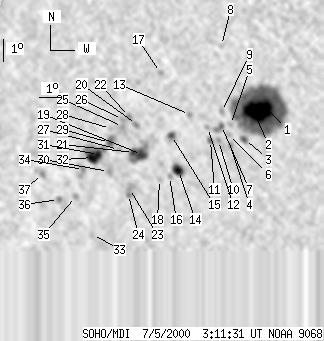

SOHO MDI 2000-07-05 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97 | 627 | 56 | 364 | -18.78 | 49.41 | -22.17 | 136.55 | 0.5185 | -642.2 | -206.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-05 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 330 | 11 | 186 | -17.69 | 52.57 | -19.01 | 138.98 | 0.4747 | -2125.6 | -702.4 | |
| 33 | -1 | 19 | -1 | -17.91 | 52.06 | -19.52 | 138.57 | 0.4823 | -1569.6 | 999999 | |
| 2 | 7 | 1 | 4 | -19.08 | 51.47 | -20.10 | 139.39 | 0.5010 | -668.5 | -524.8 | |
| 0 | 6 | 0 | 3 | -19.35 | 50.81 | -20.76 | 138.87 | 0.5105 | -685.0 | -515.7 | |
| 0 | 5 | 0 | 3 | -18.45 | 50.93 | -20.65 | 137.77 | 0.4997 | -518.0 | -428.5 | |
| 0 | 3 | 0 | 2 | -18.88 | 50.78 | -20.79 | 138.18 | 0.5057 | -395.0 | -393.0 | |
| 0 | 11 | 0 | 6 | -18.50 | 50.52 | -21.06 | 137.29 | 0.5044 | -1085.0 | -710.1 | |
| 0 | 3 | 0 | 1 | -15.11 | 50.91 | -20.66 | 132.65 | 0.4651 | -680.0 | -507.3 | |
| 0 | 5 | 0 | 3 | -17.90 | 50.59 | -20.98 | 136.54 | 0.4973 | -891.0 | -654.4 | |
| 0 | 3 | 0 | 2 | -19.14 | 50.30 | -21.28 | 137.91 | 0.5135 | -676.0 | -511.8 | |
| 0 | 5 | 0 | 3 | -19.15 | 49.94 | -21.64 | 137.46 | 0.5172 | -617.0 | -475.8 | |
| 0 | 4 | 0 | 2 | -18.60 | 49.88 | -21.70 | 136.60 | 0.5120 | -481.0 | -477.9 | |
| 0 | 5 | 0 | 3 | -18.06 | 49.14 | -22.44 | 134.90 | 0.5143 | -467.0 | -538.2 | |
| 8 | 19 | 5 | 12 | -20.48 | 48.28 | -23.30 | 137.22 | 0.5476 | -1036.7 | -696.4 | |
| 3 | 7 | 2 | 4 | -18.98 | 48.19 | -23.38 | 135.06 | 0.5334 | -461.7 | -292.2 | |
| 0 | 3 | 0 | 2 | -20.76 | 47.82 | -23.76 | 137.04 | 0.5549 | -493.0 | -342.9 | |
| 0 | 5 | 0 | 3 | -16.31 | 48.06 | -23.51 | 130.97 | 0.5092 | 966.0 | 566.4 | |
| 0 | 5 | 0 | 3 | -20.90 | 47.33 | -24.25 | 136.66 | 0.5611 | -411.0 | -264.6 | |
| 10 | 45 | 6 | 27 | -19.83 | 46.67 | -24.90 | 134.50 | 0.5575 | 1129.8 | 648.7 | |
| 0 | 7 | 0 | 4 | -18.55 | 46.65 | -24.92 | 132.69 | 0.5456 | 999.0 | 780.5 | |
| 4 | -19 | 2 | -19 | -19.76 | 46.31 | -25.26 | 134.00 | 0.5605 | 1041.2 | 999999 | |
| 0 | 5 | 0 | 3 | -18.22 | 46.38 | -25.19 | 131.91 | 0.5455 | 945.0 | 775.5 | |
| 0 | 10 | 0 | 6 | -21.33 | 45.84 | -25.73 | 135.59 | 0.5801 | 599.0 | 64.9 | |
| 0 | 4 | 0 | 3 | -21.59 | 45.75 | -25.83 | 135.83 | 0.5835 | 865.0 | 645.2 | |
| 0 | 10 | 0 | 6 | -18.65 | 45.99 | -25.59 | 132.11 | 0.5538 | 1152.0 | 932.5 | |
| 0 | 4 | 0 | 2 | -18.35 | 46.03 | -25.54 | 131.74 | 0.5505 | 1053.0 | 913.9 | |
| 0 | 5 | 0 | 3 | -19.65 | 45.63 | -25.94 | 133.12 | 0.5666 | 767.0 | 650.3 | |
| 0 | 3 | 0 | 2 | -18.75 | 45.41 | -26.16 | 131.65 | 0.5609 | 763.0 | 718.9 | |
| 2 | 12 | 1 | 7 | -19.36 | 45.26 | -26.31 | 132.33 | 0.5679 | 873.4 | 889.8 | |
| 0 | 8 | 0 | 5 | -20.61 | 44.99 | -26.59 | 133.75 | 0.5821 | 843.0 | 711.6 | |
| 5 | 48 | 3 | 29 | -19.89 | 44.65 | -26.93 | 132.43 | 0.5792 | 1363.3 | 746.2 | |
| 10 | -31 | 6 | -31 | -20.03 | 44.34 | -27.24 | 132.31 | 0.5836 | 954.6 | 999999 | |
| 0 | 4 | 0 | 3 | -23.41 | 43.63 | -27.95 | 135.96 | 0.6209 | 503.0 | 436.3 | |
| 0 | 14 | 0 | 9 | -20.56 | 43.81 | -27.77 | 132.50 | 0.5939 | 869.0 | 692.1 | |
| 0 | 6 | 0 | 3 | -21.75 | 43.17 | -28.40 | 133.44 | 0.6107 | 616.0 | 556.1 | |
| 0 | 5 | 0 | 3 | -21.91 | 42.31 | -29.27 | 132.83 | 0.6207 | 687.0 | 477.8 | |
| 0 | 11 | 0 | 7 | -20.80 | 41.77 | -29.80 | 130.90 | 0.6170 | 768.0 | 587.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
