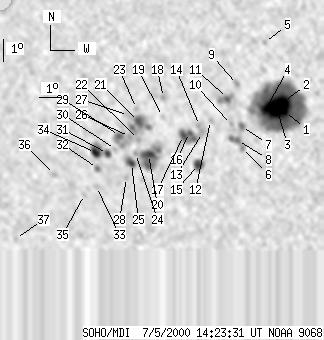

SOHO MDI 2000-07-05 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99 | 676 | 55 | 382 | -18.52 | 49.29 | -16.10 | 145.12 | 0.4579 | -693.5 | -221.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-05 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 337 | 4 | 184 | -17.92 | 52.47 | -12.93 | 149.61 | 0.4225 | -1716.3 | -730.3 | |
| 45 | -1 | 25 | -1 | -17.50 | 52.46 | -12.94 | 149.05 | 0.4169 | -1961.8 | 999999 | |
| -2 | -1 | -2 | -1 | -17.71 | 52.14 | -13.25 | 148.72 | 0.4224 | 999999 | 999999 | |
| -2 | -1 | -2 | -1 | -17.76 | 51.71 | -13.68 | 147.98 | 0.4266 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -15.02 | 51.82 | -13.57 | 144.29 | 0.3899 | -883.0 | -713.8 | |
| 0 | 5 | 0 | 3 | -19.49 | 50.53 | -14.87 | 148.05 | 0.4590 | -781.0 | -611.1 | |
| 0 | 8 | 0 | 5 | -18.59 | 50.57 | -14.83 | 146.99 | 0.4471 | -1065.0 | -865.9 | |
| 0 | 10 | 0 | 6 | -19.19 | 50.34 | -15.06 | 147.36 | 0.4567 | -758.0 | -759.2 | |
| 0 | 4 | 0 | 2 | -16.81 | 50.55 | -14.85 | 144.53 | 0.4245 | -940.0 | -719.0 | |
| 0 | 3 | 0 | 2 | -18.51 | 50.14 | -15.25 | 146.15 | 0.4497 | -804.0 | -631.9 | |
| 0 | 15 | 0 | 8 | -17.41 | 50.07 | -15.33 | 144.53 | 0.4365 | -984.0 | -777.3 | |
| 0 | 3 | 0 | 2 | -18.36 | 49.25 | -16.15 | 144.43 | 0.4557 | -762.0 | -634.3 | |
| 0 | 9 | 0 | 5 | -18.88 | 48.85 | -16.55 | 144.47 | 0.4657 | -866.0 | -750.0 | |
| 0 | 8 | 0 | 5 | -18.58 | 48.75 | -16.65 | 143.91 | 0.4630 | -871.0 | -753.0 | |
| 7 | 14 | 4 | 8 | -20.26 | 48.52 | -16.87 | 145.73 | 0.4856 | -973.8 | -655.7 | |
| 2 | 30 | 1 | 17 | -18.89 | 48.28 | -17.12 | 143.58 | 0.4710 | -906.0 | -645.3 | |
| 4 | -16 | 2 | -16 | -19.02 | 48.00 | -17.40 | 143.32 | 0.4752 | -717.7 | 999999 | |
| 0 | 4 | 0 | 2 | -17.42 | 47.29 | -18.10 | 140.00 | 0.4631 | 1060.0 | 812.8 | |
| 0 | 3 | 0 | 2 | -18.23 | 47.16 | -18.23 | 140.96 | 0.4737 | -396.0 | -295.9 | |
| 9 | 55 | 5 | 32 | -19.87 | 46.35 | -19.05 | 142.00 | 0.5004 | 1064.3 | 471.6 | |
| 6 | 40 | 3 | 23 | -18.46 | 46.08 | -19.32 | 139.69 | 0.4870 | 1453.3 | 1043.0 | |
| 0 | 4 | 0 | 2 | -19.23 | 45.98 | -19.41 | 140.63 | 0.4966 | 865.0 | 690.8 | |
| 0 | 3 | 0 | 2 | -17.91 | 46.05 | -19.34 | 138.87 | 0.4811 | 821.0 | 811.0 | |
| 0 | 4 | 0 | 2 | -19.84 | 45.77 | -19.62 | 141.14 | 0.5055 | 773.0 | 615.7 | |
| 5 | 13 | 3 | 8 | -20.28 | 45.54 | -19.86 | 141.39 | 0.5126 | 877.7 | 837.1 | |
| 0 | 8 | 0 | 5 | -19.11 | 45.60 | -19.80 | 139.92 | 0.4990 | 1187.0 | 949.4 | |
| 0 | 4 | 0 | 2 | -18.21 | 45.66 | -19.73 | 138.76 | 0.4884 | 975.0 | 914.8 | |
| 0 | 4 | 0 | 2 | -20.89 | 45.23 | -20.17 | 141.75 | 0.5224 | 803.0 | 622.0 | |
| 2 | 24 | 1 | 14 | -19.08 | 45.16 | -20.24 | 139.26 | 0.5030 | 1318.0 | 944.8 | |
| 0 | 3 | 0 | 2 | -19.69 | 44.90 | -20.50 | 139.74 | 0.5122 | 750.0 | 653.5 | |
| 4 | 35 | 2 | 21 | -19.87 | 44.51 | -20.88 | 139.47 | 0.5179 | 869.8 | 694.3 | |
| 0 | 7 | 0 | 4 | -20.53 | 43.97 | -21.43 | 139.63 | 0.5303 | 888.0 | 642.0 | |
| 0 | 4 | 0 | 3 | -21.31 | 43.80 | -21.59 | 140.43 | 0.5403 | 503.0 | 468.8 | |
| 8 | -31 | 5 | -31 | -19.84 | 43.98 | -21.42 | 138.72 | 0.5228 | 1000.8 | 999999 | |
| 0 | 4 | 0 | 2 | -21.68 | 43.19 | -22.20 | 140.13 | 0.5499 | 701.0 | 586.4 | |
| 0 | 5 | 0 | 3 | -20.84 | 41.95 | -23.45 | 137.55 | 0.5532 | 742.0 | 549.8 | |
| 0 | 3 | 0 | 2 | -23.71 | 39.56 | -25.83 | 138.50 | 0.6043 | 545.0 | 523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
