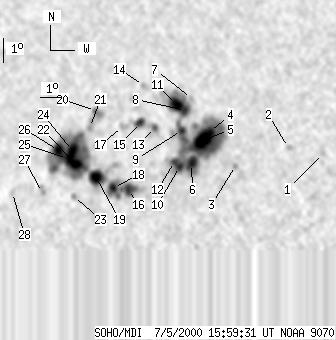

SOHO MDI 2000-07-05 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171 | 908 | 104 | 551 | 18.62 | 32.04 | -32.48 | 61.86 | 0.5787 | 195.6 | 33.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-05 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 18.67 | 40.72 | -23.79 | 55.03 | 0.4684 | 785.0 | 590.5 | |
| 0 | 4 | 0 | 2 | 18.88 | 39.12 | -25.39 | 56.21 | 0.4902 | 528.0 | 443.8 | |
| 0 | 4 | 0 | 2 | 18.08 | 36.78 | -27.74 | 59.64 | 0.5147 | -688.0 | -478.1 | |
| 33 | 342 | 20 | 202 | 19.44 | 35.29 | -29.23 | 58.46 | 0.5423 | 1647.3 | 564.3 | |
| -4 | -4 | -4 | -4 | 19.11 | 35.11 | -29.40 | 59.15 | 0.5424 | 999999 | 999999 | |
| 13 | -4 | 8 | -4 | 18.11 | 34.68 | -29.83 | 61.15 | 0.5420 | 1282.9 | 999999 | |
| 0 | 3 | 0 | 2 | 20.78 | 34.13 | -30.38 | 57.14 | 0.5651 | 741.0 | 608.9 | |
| 7 | 93 | 4 | 56 | 20.27 | 33.95 | -30.57 | 58.08 | 0.5642 | 1344.6 | 557.8 | |
| 5 | -4 | 3 | -4 | 19.44 | 33.93 | -30.58 | 59.44 | 0.5594 | 813.9 | 999999 | |
| 5 | -4 | 3 | -4 | 17.97 | 34.13 | -30.39 | 61.76 | 0.5483 | 970.1 | 999999 | |
| 19 | -8 | 11 | -8 | 20.51 | 33.45 | -31.06 | 58.06 | 0.5717 | 1115.1 | 999999 | |
| 3 | -4 | 2 | -4 | 18.16 | 33.85 | -30.67 | 61.61 | 0.5530 | 414.6 | 999999 | |
| 3 | 11 | 2 | 6 | 19.53 | 32.63 | -31.88 | 60.17 | 0.5760 | -1014.7 | -705.2 | |
| 0 | 8 | 0 | 5 | 21.24 | 31.62 | -32.89 | 58.15 | 0.5981 | -418.0 | -377.1 | |
| 7 | 15 | 4 | 9 | 19.71 | 31.84 | -32.67 | 60.38 | 0.5868 | 786.7 | 435.0 | |
| 8 | 67 | 5 | 40 | 16.95 | 31.83 | -32.68 | 64.84 | 0.5727 | -1399.3 | -962.5 | |
| 0 | 9 | 0 | 6 | 19.52 | 30.98 | -33.53 | 61.21 | 0.5963 | 496.0 | 367.8 | |
| 8 | -16 | 5 | -16 | 17.01 | 31.08 | -33.43 | 65.15 | 0.5828 | -1197.9 | 999999 | |
| 19 | 302 | 11 | 189 | 17.39 | 30.15 | -34.36 | 65.03 | 0.5964 | -1239.9 | -425.6 | |
| 0 | 17 | 0 | 11 | 20.13 | 29.45 | -35.06 | 61.14 | 0.6181 | -22.0 | -45.9 | |
| 0 | 12 | 0 | 8 | 19.42 | 29.32 | -35.19 | 62.29 | 0.6162 | -553.0 | -558.8 | |
| 11 | -19 | 7 | -19 | 17.89 | 29.02 | -35.49 | 64.81 | 0.6128 | -1509.4 | 999999 | |
| 0 | 5 | 0 | 3 | 16.58 | 29.16 | -35.35 | 66.79 | 0.6056 | -833.0 | -614.3 | |
| 22 | -19 | 14 | -19 | 18.45 | 28.69 | -35.83 | 64.11 | 0.6195 | -1131.2 | 999999 | |
| -24 | -19 | -24 | -19 | 18.12 | 28.51 | -36.01 | 64.71 | 0.6202 | 999999 | 999999 | |
| 8 | -19 | 5 | -19 | 18.43 | 27.97 | -36.55 | 64.49 | 0.6282 | 1168.0 | 999999 | |
| 0 | 8 | 0 | 5 | 16.69 | 27.55 | -36.97 | 67.34 | 0.6265 | -670.0 | -437.3 | |
| 0 | 4 | 0 | 3 | 16.63 | 25.99 | -38.53 | 68.05 | 0.6457 | -323.0 | -424.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
