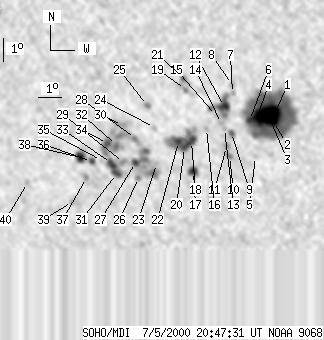

SOHO MDI 2000-07-05 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118 | 752 | 63 | 410 | -18.53 | 49.28 | -12.58 | 151.44 | 0.4294 | -841.7 | -227.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-05 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 326 | 29 | 176 | -17.60 | 52.44 | -9.43 | 156.48 | 0.3930 | -1990.1 | -726.1 | |
| -1 | -1 | -1 | -1 | -18.03 | 52.33 | -9.54 | 156.70 | 0.3999 | 999999 | 999999 | |
| -1 | -1 | -1 | -1 | -17.77 | 52.13 | -9.73 | 156.00 | 0.3975 | 999999 | 999999 | |
| -1 | -1 | -1 | -1 | -17.78 | 51.67 | -10.20 | 155.00 | 0.4007 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -19.53 | 51.47 | -10.39 | 156.45 | 0.4272 | -405.0 | -458.0 | |
| 4 | -1 | 2 | -1 | -17.99 | 51.32 | -10.55 | 154.50 | 0.4062 | -1104.3 | 999999 | |
| 0 | 3 | 0 | 1 | -16.86 | 50.67 | -11.20 | 151.78 | 0.3948 | -955.0 | -726.8 | |
| 0 | 5 | 0 | 3 | -16.48 | 50.69 | -11.18 | 151.35 | 0.3893 | -872.0 | -653.2 | |
| 0 | 8 | 0 | 4 | -18.52 | 50.52 | -11.35 | 153.45 | 0.4191 | -1214.0 | -899.2 | |
| 0 | 5 | 0 | 3 | -19.55 | 50.36 | -11.51 | 154.26 | 0.4347 | -960.0 | -829.3 | |
| 0 | 4 | 0 | 2 | -19.12 | 50.26 | -11.60 | 153.61 | 0.4294 | -951.0 | -872.7 | |
| 8 | 44 | 4 | 24 | -17.41 | 50.29 | -11.57 | 151.69 | 0.4054 | -1262.7 | -917.5 | |
| 0 | 3 | 0 | 2 | -18.35 | 50.23 | -11.63 | 152.68 | 0.4189 | -759.0 | -633.0 | |
| 0 | 4 | 0 | 2 | -18.14 | 50.12 | -11.75 | 152.21 | 0.4168 | -929.0 | -817.7 | |
| 0 | 3 | 0 | 1 | -17.80 | 49.93 | -11.94 | 151.43 | 0.4135 | -700.0 | -635.8 | |
| 0 | 4 | 0 | 2 | -18.36 | 49.46 | -12.40 | 151.19 | 0.4247 | -1080.0 | -875.2 | |
| 6 | 15 | 3 | 8 | -20.22 | 48.75 | -13.11 | 152.00 | 0.4553 | -1027.2 | -654.5 | |
| 7 | 68 | 4 | 37 | -18.92 | 48.78 | -13.09 | 150.56 | 0.4377 | -1121.1 | -691.4 | |
| 0 | 8 | 0 | 4 | -16.72 | 48.69 | -13.18 | 147.57 | 0.4089 | 578.0 | 453.4 | |
| 3 | -18 | 2 | -18 | -19.19 | 48.45 | -13.41 | 150.28 | 0.4437 | -694.2 | 999999 | |
| 0 | 10 | 0 | 6 | -16.25 | 48.63 | -13.23 | 146.82 | 0.4032 | 1061.0 | 742.0 | |
| 4 | -18 | 2 | -18 | -18.93 | 48.22 | -13.65 | 149.54 | 0.4422 | -760.9 | 999999 | |
| 0 | 2 | 0 | 1 | -19.89 | 47.18 | -14.69 | 148.87 | 0.4631 | 743.0 | 571.6 | |
| 0 | 4 | 0 | 2 | -18.35 | 47.23 | -14.63 | 147.05 | 0.4427 | -299.0 | -269.7 | |
| 0 | 5 | 0 | 3 | -17.42 | 47.01 | -14.86 | 145.41 | 0.4327 | 1062.0 | 921.1 | |
| 0 | 4 | 0 | 2 | -20.51 | 46.33 | -15.54 | 148.19 | 0.4779 | -557.0 | -406.6 | |
| 4 | 68 | 2 | 38 | -19.87 | 46.26 | -15.60 | 147.31 | 0.4702 | 1093.2 | 504.3 | |
| 0 | 36 | 0 | 20 | -18.83 | 46.36 | -15.50 | 146.18 | 0.4563 | 1210.0 | 1027.2 | |
| 0 | 5 | 0 | 3 | -19.88 | 45.74 | -16.13 | 146.46 | 0.4748 | 1048.0 | 968.3 | |
| 0 | 13 | 0 | 7 | -18.29 | 45.85 | -16.01 | 144.60 | 0.4540 | 1238.0 | 1030.6 | |
| 6 | 27 | 3 | 15 | -20.36 | 45.38 | -16.49 | 146.48 | 0.4838 | 840.9 | 835.3 | |
| 0 | 5 | 0 | 3 | -19.15 | 45.51 | -16.36 | 145.17 | 0.4678 | 1391.0 | 1251.9 | |
| 6 | -31 | 4 | -31 | -19.93 | 45.20 | -16.66 | 145.68 | 0.4800 | 1192.8 | 999999 | |
| 4 | 18 | 2 | 10 | -19.07 | 45.12 | -16.75 | 144.45 | 0.4702 | 1283.7 | 1020.6 | |
| 0 | 3 | 0 | 1 | -19.81 | 44.78 | -17.09 | 144.86 | 0.4823 | 760.0 | 663.4 | |
| 3 | 8 | 2 | 4 | -19.86 | 44.33 | -17.54 | 144.24 | 0.4869 | 852.2 | 738.7 | |
| 0 | 5 | 0 | 3 | -20.56 | 44.03 | -17.84 | 144.66 | 0.4979 | 858.0 | 644.7 | |
| 8 | 18 | 4 | 10 | -19.70 | 43.86 | -18.00 | 143.32 | 0.4891 | 1069.8 | 751.2 | |
| 0 | 14 | 0 | 8 | -21.62 | 43.26 | -18.60 | 144.85 | 0.5171 | 766.0 | 585.5 | |
| 0 | 4 | 0 | 3 | -20.83 | 41.34 | -20.52 | 141.23 | 0.5254 | 715.0 | 612.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
