| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 51 | 6 | 38 | -20.50 | 16.51 | -43.59 | 121.21 | 0.7567 | -604.1 | -113.8 | |
|
previous
or next observation for the same group /

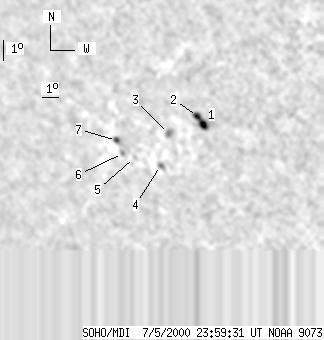

back to the solar disc SOHO MDI 2000-07-05 23:59:31 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 23 | 4 | 17 | -19.90 | 18.69 | -41.41 | 121.60 | 0.7326 | -742.5 | -570.8 | |
| 3 | -1 | 2 | -1 | -19.57 | 18.46 | -41.64 | 121.06 | 0.7332 | -811.3 | 999999 | |
| 0 | 8 | 0 | 6 | -20.38 | 16.52 | -43.58 | 121.04 | 0.7566 | -603.0 | -432.7 | |
| 0 | 6 | 0 | 5 | -21.81 | 15.50 | -44.60 | 122.24 | 0.7729 | 676.0 | 608.8 | |
| 0 | 3 | 0 | 2 | -21.53 | 14.03 | -46.07 | 121.20 | 0.7854 | 834.0 | 730.6 | |
| 0 | 4 | 0 | 3 | -21.39 | 13.35 | -46.75 | 120.71 | 0.7911 | 359.0 | 293.6 | |
| 0 | 7 | 0 | 5 | -20.83 | 13.21 | -46.89 | 120.00 | 0.7901 | 555.0 | 517.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
