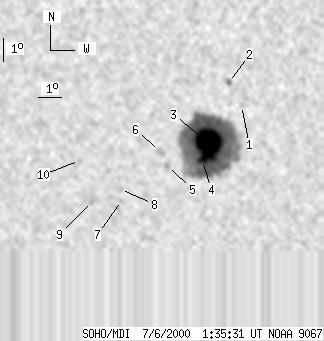

SOHO MDI 2000-07-06 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 520 | 45 | 281 | -19.88 | 64.22 | 5.00 | 191.68 | 0.4069 | -1814.0 | -602.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | -18.19 | 65.69 | 6.47 | 196.18 | 0.3860 | -795.0 | -715.0 | |
| 0 | 6 | 0 | 3 | -17.20 | 65.11 | 5.89 | 195.52 | 0.3682 | 1034.0 | 687.2 | |
| 76 | 487 | 41 | 264 | -19.81 | 64.36 | 5.14 | 192.03 | 0.4060 | -1929.9 | -629.7 | |
| 7 | -3 | 4 | -3 | -20.54 | 64.13 | 4.91 | 191.14 | 0.4167 | -1279.2 | 999999 | |
| 0 | 5 | 0 | 3 | -20.80 | 62.65 | 3.43 | 187.75 | 0.4168 | -916.0 | -706.3 | |
| 0 | 10 | 0 | 5 | -20.14 | 62.30 | 3.08 | 187.17 | 0.4058 | -562.0 | -501.8 | |
| 0 | 2 | 0 | 1 | -22.28 | 60.71 | 1.50 | 183.18 | 0.4373 | -739.0 | -645.4 | |
| 0 | 2 | 0 | 1 | -21.79 | 60.67 | 1.45 | 183.15 | 0.4296 | -804.0 | -681.0 | |
| 0 | 3 | 0 | 1 | -22.32 | 59.43 | 0.21 | 180.45 | 0.4373 | 686.0 | 614.1 | |
| 0 | 3 | 0 | 2 | -20.53 | 58.92 | -0.30 | 179.32 | 0.4089 | 647.0 | 535.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
