groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9070 200 1122 116 643 18.46 32.41 -26.80 58.04 0.5053 299.4 22.2


previous   or   next   observation for the same group / back to the solar disc

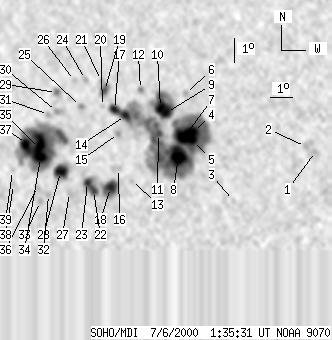

SOHO MDI 2000-07-06 01:35:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 6 0 3 18.34 41.15 -18.07 48.65 0.3938 747.0 690.2
2 0 4 0 2 18.54 40.69 -18.53 48.94 0.4014 871.0 724.9
3 0 3 0 2 16.28 37.76 -21.45 57.32 0.4189 574.0 522.8
4 32 533 18 300 19.05 35.59 -23.62 54.23 0.4688 1705.3 409.8
5 6 -4 4 -4 18.68 35.60 -23.61 54.90 0.4657 2067.9 999999
6 0 5 0 3 20.61 34.97 -24.24 52.10 0.4891 675.0 528.3
7 -4 -4 -4 -4 18.83 35.21 -24.00 55.01 0.4719 999999 999999
8 32 -4 18 -4 18.05 35.06 -24.16 56.63 0.4679 1617.5 999999
9 11 81 6 46 19.80 34.23 -24.99 54.26 0.4917 1436.9 617.0
10 12 -9 7 -9 20.00 33.91 -25.30 54.21 0.4971 1106.9 999999
11 2 -4 1 -4 18.93 34.00 -25.22 56.03 0.4879 934.6 999999
12 0 5 0 3 20.72 32.84 -26.37 53.99 0.5157 577.0 383.0
13 0 3 0 2 16.98 33.06 -26.16 60.45 0.4867 -526.0 -405.7
14 6 -4 3 -4 19.63 32.34 -26.88 56.30 0.5139 -1104.9 999999
15 0 5 0 3 18.88 32.14 -27.08 57.77 0.5112 -611.0 -605.5
16 0 12 0 7 17.45 32.38 -26.84 60.13 0.4987 -508.0 -342.1
17 7 -4 4 -4 19.86 31.77 -27.44 56.38 0.5226 927.6 999999
18 15 88 8 50 16.67 32.13 -27.09 61.76 0.4971 -1416.9 -856.8
19 4 14 3 8 20.63 31.15 -28.07 55.62 0.5357 754.4 454.3
20 0 3 0 2 19.97 31.18 -28.04 56.69 0.5307 372.0 442.8
21 0 5 0 3 21.04 30.92 -28.30 55.14 0.5414 -492.0 -410.1
22 7 -18 4 -18 16.52 31.36 -27.86 62.60 0.5066 -1242.1 999999
23 5 -18 3 -18 16.84 31.03 -28.19 62.27 0.5128 -1243.4 999999
24 0 5 0 3 21.06 30.14 -29.08 55.74 0.5509 675.0 456.8
25 0 6 0 4 19.94 30.13 -29.09 57.58 0.5435 -813.0 -596.4
26 0 5 0 3 21.01 29.61 -29.60 56.24 0.5568 430.0 266.9
27 0 6 0 3 16.41 30.25 -28.97 63.58 0.5208 -800.0 -739.8
28 15 38 9 22 17.25 29.68 -29.54 62.48 0.5330 -1235.3 -717.6
29 0 7 0 4 20.48 28.85 -30.37 57.65 0.5628 732.0 580.6
30 0 8 0 5 19.70 29.02 -30.20 58.80 0.5558 -636.0 -632.1
31 0 4 0 2 19.57 28.65 -30.56 59.28 0.5595 -672.0 -540.8
32 0 4 0 2 16.30 29.27 -29.95 64.41 0.5333 -714.0 -646.7
33 0 6 0 3 16.01 28.94 -30.28 65.14 0.5362 -619.0 -600.8
34 33 254 20 151 17.79 28.62 -30.60 62.25 0.5498 -1464.9 -485.3
35 -34 -34 -34 -34 18.16 28.50 -30.72 61.71 0.5533 999999 999999
36 0 5 0 3 16.61 28.69 -30.53 64.23 0.5426 -749.0 -648.7
37 13 -34 8 -34 18.34 27.83 -31.39 61.83 0.5629 1109.4 999999
38 0 3 0 2 16.66 27.52 -31.69 64.85 0.5582 -220.0 -255.0
39 0 4 0 2 17.22 27.37 -31.85 63.98 0.5630 -396.0 -398.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
