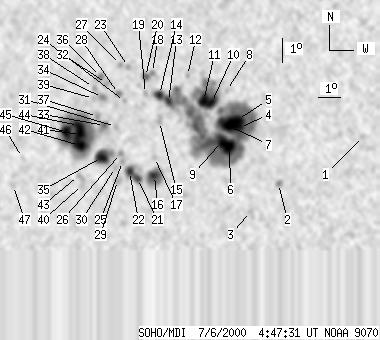

SOHO MDI 2000-07-06 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 194 | 1178 | 110 | 667 | 18.52 | 32.62 | -24.84 | 56.17 | 0.4805 | 341.2 | 59.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 18.39 | 41.21 | -16.25 | 45.70 | 0.3725 | 743.0 | 442.5 | |
| 0 | 4 | 0 | 2 | 16.40 | 37.74 | -19.71 | 55.00 | 0.3967 | 810.0 | 753.5 | |
| 0 | 9 | 0 | 5 | 15.25 | 36.63 | -20.82 | 58.86 | 0.4023 | -519.0 | -194.3 | |
| 45 | 681 | 25 | 379 | 18.65 | 35.74 | -21.71 | 52.88 | 0.4414 | 1771.3 | 452.3 | |
| -4 | -4 | -4 | -4 | 18.98 | 35.60 | -21.85 | 52.42 | 0.4459 | 999999 | 999999 | |
| 14 | -4 | 8 | -4 | 17.86 | 35.39 | -22.06 | 54.80 | 0.4392 | 1921.8 | 999999 | |
| -4 | -4 | -4 | -4 | 18.68 | 35.28 | -22.17 | 53.35 | 0.4474 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | 20.16 | 34.93 | -22.52 | 51.03 | 0.4644 | 722.0 | 597.0 | |
| 12 | -4 | 7 | -4 | 18.06 | 35.01 | -22.44 | 54.85 | 0.4458 | 1338.8 | 999999 | |
| 10 | -4 | 6 | -4 | 19.65 | 34.33 | -23.13 | 52.62 | 0.4674 | 1442.9 | 999999 | |
| 11 | -4 | 6 | -4 | 19.72 | 33.95 | -23.50 | 52.90 | 0.4727 | 1229.4 | 999999 | |
| 0 | 3 | 0 | 2 | 20.74 | 33.04 | -24.41 | 52.07 | 0.4920 | 537.0 | 359.7 | |
| 6 | -4 | 3 | -4 | 19.64 | 32.34 | -25.11 | 54.67 | 0.4918 | -1181.7 | 999999 | |
| 7 | -4 | 4 | -4 | 19.92 | 31.88 | -25.58 | 54.63 | 0.4997 | 853.1 | 999999 | |
| 0 | 9 | 0 | 5 | 18.81 | 32.06 | -25.39 | 56.42 | 0.4891 | -809.0 | -564.9 | |
| 10 | 37 | 5 | 21 | 16.60 | 32.17 | -25.28 | 60.44 | 0.4725 | -1390.9 | -981.1 | |
| 0 | 3 | 0 | 2 | 17.34 | 32.06 | -25.39 | 59.14 | 0.4787 | -687.0 | -605.2 | |
| 0 | 9 | 0 | 5 | 20.82 | 31.39 | -26.07 | 53.55 | 0.5126 | 586.0 | 246.7 | |
| 0 | 5 | 0 | 3 | 19.95 | 31.22 | -26.24 | 55.20 | 0.5081 | 695.0 | 512.5 | |
| 3 | 11 | 2 | 7 | 20.65 | 31.09 | -26.37 | 54.12 | 0.5149 | 878.5 | 502.0 | |
| 4 | 42 | 3 | 24 | 16.46 | 31.41 | -26.04 | 61.35 | 0.4818 | -1260.0 | -845.5 | |
| 6 | -21 | 3 | -21 | 16.74 | 31.00 | -26.45 | 61.16 | 0.4890 | -1180.7 | 999999 | |
| 0 | 5 | 0 | 3 | 21.04 | 30.20 | -27.25 | 54.26 | 0.5285 | 671.0 | 453.6 | |
| 0 | 3 | 0 | 2 | 19.59 | 30.29 | -27.16 | 56.63 | 0.5171 | -811.0 | -649.1 | |
| 0 | 3 | 0 | 2 | 17.13 | 30.61 | -26.84 | 60.73 | 0.4966 | -486.0 | -517.8 | |
| 0 | 5 | 0 | 3 | 17.46 | 30.47 | -26.98 | 60.25 | 0.5005 | 354.0 | 266.3 | |
| 0 | 4 | 0 | 2 | 21.11 | 29.81 | -27.65 | 54.49 | 0.5339 | 620.0 | 489.2 | |
| 0 | 6 | 0 | 4 | 19.91 | 29.95 | -27.51 | 56.37 | 0.5236 | -870.0 | -608.9 | |
| 0 | 7 | 0 | 4 | 16.36 | 30.50 | -26.95 | 62.26 | 0.4933 | -981.0 | -781.3 | |
| 0 | 4 | 0 | 2 | 16.88 | 30.33 | -27.12 | 61.42 | 0.4988 | -676.0 | -553.8 | |
| 0 | 5 | 0 | 3 | 18.55 | 30.05 | -27.40 | 58.63 | 0.5130 | -639.0 | -459.1 | |
| 0 | 6 | 0 | 4 | 20.31 | 29.30 | -28.16 | 56.24 | 0.5344 | -588.0 | -419.4 | |
| 2 | 12 | 1 | 7 | 18.58 | 29.53 | -27.93 | 59.00 | 0.5199 | -984.8 | -696.3 | |
| 0 | 8 | 0 | 4 | 19.73 | 29.22 | -28.23 | 57.28 | 0.5314 | -1032.0 | -796.6 | |
| 13 | 38 | 7 | 22 | 17.27 | 29.61 | -27.84 | 61.26 | 0.5107 | -1339.7 | -781.9 | |
| 0 | 7 | 0 | 4 | 20.59 | 28.95 | -28.50 | 56.06 | 0.5405 | 905.0 | 622.5 | |
| 0 | 7 | 0 | 4 | 18.94 | 29.13 | -28.32 | 58.69 | 0.5273 | -783.0 | -597.6 | |
| 0 | 5 | 0 | 3 | 20.13 | 28.71 | -28.74 | 57.02 | 0.5404 | -448.0 | -286.7 | |
| 0 | 3 | 0 | 2 | 19.67 | 28.80 | -28.65 | 57.70 | 0.5363 | -457.0 | -374.0 | |
| 0 | 3 | 0 | 2 | 16.15 | 28.90 | -28.55 | 63.80 | 0.5137 | -797.0 | -774.2 | |
| 21 | 209 | 13 | 122 | 18.18 | 28.46 | -28.99 | 60.50 | 0.5312 | -1355.0 | -449.0 | |
| 14 | -41 | 8 | -41 | 17.73 | 28.49 | -28.96 | 61.26 | 0.5281 | -1544.2 | 999999 | |
| 0 | 8 | 0 | 4 | 16.51 | 28.65 | -28.80 | 63.32 | 0.5190 | -820.0 | -694.8 | |
| -41 | -41 | -41 | -41 | 18.55 | 28.29 | -29.16 | 60.00 | 0.5355 | 999999 | 999999 | |
| 16 | -41 | 9 | -41 | 18.24 | 27.82 | -29.63 | 60.85 | 0.5397 | 950.0 | 999999 | |
| 0 | 4 | 0 | 2 | 17.16 | 25.85 | -31.60 | 63.96 | 0.5594 | -591.0 | -552.3 | |
| 0 | 4 | 0 | 2 | 16.01 | 25.63 | -31.83 | 66.04 | 0.5568 | -582.0 | -455.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
