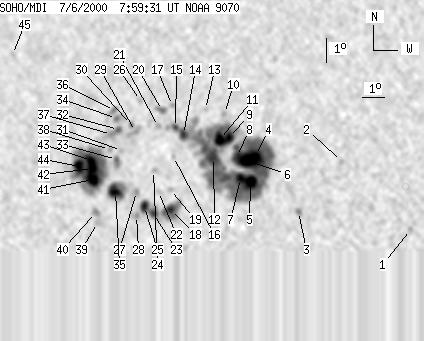

SOHO MDI 2000-07-06 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190 | 1234 | 106 | 686 | 18.49 | 32.77 | -22.91 | 54.27 | 0.4557 | 338.9 | 90.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 15.96 | 42.68 | -13.01 | 44.93 | 0.3077 | -725.0 | -505.6 | |
| 0 | 4 | 0 | 2 | 18.69 | 39.50 | -16.19 | 45.02 | 0.3750 | 789.0 | 606.7 | |
| 0 | 6 | 0 | 3 | 16.62 | 37.83 | -17.85 | 52.02 | 0.3743 | 1005.0 | 763.3 | |
| 38 | 761 | 21 | 418 | 18.87 | 35.69 | -19.99 | 50.35 | 0.4219 | 1938.9 | 460.7 | |
| 14 | -4 | 8 | -4 | 17.80 | 35.60 | -20.09 | 52.59 | 0.4134 | 1946.9 | 999999 | |
| -4 | -4 | -4 | -4 | 18.66 | 35.32 | -20.37 | 51.25 | 0.4246 | 999999 | 999999 | |
| 9 | -4 | 5 | -4 | 17.91 | 35.14 | -20.54 | 52.94 | 0.4202 | 1296.1 | 999999 | |
| 7 | -4 | 4 | -4 | 18.81 | 34.85 | -20.83 | 51.54 | 0.4317 | 1140.9 | 999999 | |
| 7 | -4 | 4 | -4 | 19.58 | 34.39 | -21.30 | 50.66 | 0.4443 | 1401.7 | 999999 | |
| 0 | 5 | 0 | 3 | 20.57 | 34.06 | -21.62 | 49.26 | 0.4572 | 397.0 | 322.1 | |
| 13 | -4 | 7 | -4 | 19.49 | 33.99 | -21.69 | 51.30 | 0.4483 | 1322.3 | 999999 | |
| 17 | -4 | 9 | -4 | 18.75 | 33.83 | -21.86 | 52.89 | 0.4439 | 514.1 | 999999 | |
| 0 | 4 | 0 | 2 | 20.72 | 33.17 | -22.51 | 50.06 | 0.4690 | 182.0 | 212.6 | |
| 6 | -4 | 3 | -4 | 19.66 | 32.33 | -23.36 | 52.87 | 0.4702 | -1265.8 | 999999 | |
| 2 | -4 | 1 | -4 | 19.94 | 31.92 | -23.77 | 52.81 | 0.4775 | 808.2 | 999999 | |
| 0 | 2 | 0 | 1 | 18.75 | 32.01 | -23.68 | 54.88 | 0.4668 | -876.0 | -710.4 | |
| 0 | 4 | 0 | 2 | 20.85 | 31.63 | -24.06 | 51.53 | 0.4885 | 468.0 | 427.2 | |
| 5 | 39 | 3 | 22 | 16.58 | 32.18 | -23.51 | 58.88 | 0.4484 | -1512.4 | -969.6 | |
| 0 | 3 | 0 | 2 | 17.39 | 32.07 | -23.62 | 57.39 | 0.4557 | -708.0 | -636.8 | |
| 0 | 9 | 0 | 5 | 20.63 | 31.20 | -24.48 | 52.35 | 0.4919 | 896.0 | 673.2 | |
| 0 | 6 | 0 | 3 | 19.96 | 31.13 | -24.56 | 53.58 | 0.4874 | 719.0 | 477.4 | |
| 0 | 5 | 0 | 3 | 17.30 | 31.54 | -24.15 | 58.09 | 0.4620 | 305.0 | 181.6 | |
| 4 | 36 | 2 | 20 | 16.40 | 31.43 | -24.25 | 59.94 | 0.4572 | -1311.0 | -909.6 | |
| 0 | 4 | 0 | 2 | 18.15 | 31.19 | -24.50 | 56.81 | 0.4728 | 496.0 | 538.6 | |
| 8 | -23 | 5 | -23 | 16.67 | 30.99 | -24.70 | 59.81 | 0.4650 | -1168.1 | 999999 | |
| 0 | 5 | 0 | 3 | 21.02 | 30.10 | -25.58 | 52.78 | 0.5082 | 590.0 | 404.5 | |
| 0 | 5 | 0 | 3 | 17.28 | 30.54 | -25.15 | 59.06 | 0.4751 | -187.0 | 14.3 | |
| 0 | 5 | 0 | 3 | 16.30 | 30.67 | -25.01 | 60.82 | 0.4667 | -1044.0 | -918.2 | |
| 0 | 12 | 0 | 7 | 19.73 | 30.10 | -25.59 | 54.99 | 0.4983 | -991.0 | -794.2 | |
| 0 | 5 | 0 | 3 | 20.01 | 29.86 | -25.82 | 54.72 | 0.5034 | -777.0 | -680.6 | |
| 0 | 4 | 0 | 2 | 18.93 | 29.58 | -26.11 | 56.87 | 0.4990 | -414.0 | -435.1 | |
| 0 | 11 | 0 | 6 | 19.79 | 29.29 | -26.40 | 55.63 | 0.5088 | -1035.0 | -781.8 | |
| 0 | 11 | 0 | 6 | 18.56 | 29.41 | -26.28 | 57.69 | 0.4985 | -1104.0 | -708.7 | |
| 0 | 9 | 0 | 5 | 20.24 | 29.11 | -26.57 | 55.01 | 0.5143 | -631.0 | -369.9 | |
| 15 | 43 | 8 | 25 | 17.25 | 29.57 | -26.11 | 59.94 | 0.4876 | -1329.4 | -834.9 | |
| 0 | 7 | 0 | 4 | 20.57 | 28.96 | -26.73 | 54.60 | 0.5186 | 548.0 | 517.2 | |
| 0 | 1 | 0 | 0 | 19.58 | 29.00 | -26.69 | 56.26 | 0.5109 | -772.0 | -826.3 | |
| 0 | 4 | 0 | 2 | 18.96 | 29.02 | -26.67 | 57.32 | 0.5064 | -727.0 | -573.9 | |
| 0 | 8 | 0 | 5 | 15.97 | 28.93 | -26.76 | 62.86 | 0.4883 | -809.0 | -678.5 | |
| 0 | 8 | 0 | 4 | 16.37 | 28.78 | -26.91 | 62.22 | 0.4927 | -805.0 | -731.0 | |
| 16 | 200 | 9 | 115 | 17.71 | 28.43 | -27.26 | 60.03 | 0.5056 | -1543.2 | -471.0 | |
| 18 | -41 | 10 | -41 | 18.16 | 28.35 | -27.33 | 59.29 | 0.5095 | -1397.0 | 999999 | |
| -42 | -41 | -42 | -41 | 18.49 | 28.25 | -27.44 | 58.80 | 0.5129 | 999999 | 999999 | |
| 11 | -41 | 7 | -41 | 18.22 | 27.73 | -27.96 | 59.67 | 0.5180 | 905.6 | 999999 | |
| 0 | 5 | 0 | 3 | 22.75 | 23.46 | -32.22 | 55.49 | 0.5989 | 571.0 | 490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
