SOHO MDI 2000-07-06 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 171 | 1172 | 97 | 640 | 18.48 | 32.89 | -20.15 | 50.96 | 0.4209 | 342.4 | 103.2 | |
|
previous
or next observation for the same group /

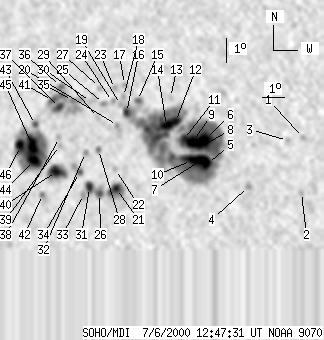

back to the solar disc SOHO MDI 2000-07-06 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 18.80 | 40.12 | -12.92 | 38.65 | 0.3403 | 673.0 | 538.1 | |
| 0 | 4 | 0 | 2 | 16.56 | 40.20 | -12.84 | 43.23 | 0.3123 | 716.0 | 625.5 | |
| 0 | 6 | 0 | 3 | 18.67 | 39.44 | -13.59 | 40.31 | 0.3457 | 709.0 | 595.0 | |
| 0 | 6 | 0 | 3 | 16.77 | 37.93 | -15.11 | 47.25 | 0.3414 | 1015.0 | 838.6 | |
| 25 | 647 | 13 | 348 | 17.67 | 36.08 | -16.96 | 48.42 | 0.3732 | 1805.4 | 593.2 | |
| 18 | -5 | 10 | -5 | 18.65 | 35.89 | -17.15 | 46.70 | 0.3855 | 1955.6 | 999999 | |
| -5 | -5 | -5 | -5 | 17.79 | 35.76 | -17.28 | 48.67 | 0.3782 | 999999 | 999999 | |
| 3 | -5 | 2 | -5 | 18.32 | 35.66 | -17.38 | 47.73 | 0.3848 | 1950.5 | 999999 | |
| 15 | -5 | 8 | -5 | 18.56 | 35.33 | -17.71 | 47.76 | 0.3912 | 1814.4 | 999999 | |
| -5 | -5 | -5 | -5 | 17.78 | 35.37 | -17.67 | 49.29 | 0.3830 | 999999 | 999999 | |
| 7 | -5 | 4 | -5 | 18.64 | 34.93 | -18.11 | 48.22 | 0.3967 | 1309.8 | 999999 | |
| 7 | -5 | 4 | -5 | 19.37 | 34.49 | -18.55 | 47.43 | 0.4092 | 1391.8 | 999999 | |
| 0 | 5 | 0 | 3 | 20.35 | 34.15 | -18.89 | 46.09 | 0.4232 | 249.0 | 267.5 | |
| 11 | -5 | 6 | -5 | 19.20 | 34.11 | -18.93 | 48.30 | 0.4120 | 1475.2 | 999999 | |
| 0 | 8 | 0 | 4 | 20.20 | 32.69 | -20.35 | 48.36 | 0.4386 | 633.0 | 470.5 | |
| 4 | 19 | 2 | 10 | 19.70 | 32.26 | -20.78 | 49.83 | 0.4389 | -1222.6 | -868.2 | |
| 0 | 4 | 0 | 2 | 20.85 | 32.01 | -21.03 | 48.07 | 0.4527 | 788.0 | 672.3 | |
| 0 | 4 | 0 | 2 | 20.35 | 32.03 | -21.01 | 48.92 | 0.4477 | -104.0 | 47.5 | |
| 0 | 4 | 0 | 2 | 20.02 | 31.94 | -21.09 | 49.63 | 0.4457 | 779.0 | 406.1 | |
| 0 | 7 | 0 | 4 | 19.15 | 31.93 | -21.11 | 51.26 | 0.4380 | -828.0 | -782.1 | |
| 6 | 31 | 3 | 17 | 16.58 | 32.20 | -20.84 | 56.07 | 0.4126 | -1459.8 | -953.4 | |
| 0 | 4 | 0 | 2 | 17.35 | 32.07 | -20.97 | 54.63 | 0.4207 | -880.0 | -701.1 | |
| 0 | 5 | 0 | 3 | 20.68 | 31.58 | -21.46 | 48.91 | 0.4561 | 490.0 | 457.0 | |
| 0 | 3 | 0 | 2 | 20.14 | 31.57 | -21.47 | 49.89 | 0.4512 | 614.0 | 506.3 | |
| 0 | 6 | 0 | 3 | 20.04 | 31.17 | -21.87 | 50.53 | 0.4552 | 659.0 | 488.6 | |
| 3 | 29 | 2 | 16 | 16.36 | 31.48 | -21.56 | 57.36 | 0.4206 | -1332.9 | -995.1 | |
| 0 | 4 | 0 | 2 | 20.70 | 30.89 | -22.15 | 49.69 | 0.4644 | 499.0 | 425.8 | |
| 0 | 5 | 0 | 3 | 18.15 | 31.21 | -21.83 | 54.04 | 0.4384 | 738.0 | 563.2 | |
| 0 | 4 | 0 | 2 | 19.46 | 31.03 | -22.01 | 51.76 | 0.4518 | -808.0 | -580.1 | |
| 0 | 7 | 0 | 4 | 20.11 | 30.57 | -22.47 | 51.11 | 0.4630 | 243.0 | 231.2 | |
| 7 | -26 | 4 | -26 | 16.59 | 31.00 | -22.04 | 57.39 | 0.4287 | -1158.7 | 999999 | |
| 0 | 4 | 0 | 2 | 18.02 | 30.64 | -22.40 | 54.94 | 0.4445 | 518.0 | 397.6 | |
| 0 | 6 | 0 | 3 | 16.30 | 30.77 | -22.27 | 58.23 | 0.4296 | -979.0 | -868.1 | |
| 2 | 13 | 1 | 7 | 17.19 | 30.48 | -22.56 | 56.73 | 0.4401 | 361.8 | 147.0 | |
| 0 | 42 | 0 | 24 | 20.14 | 29.74 | -23.30 | 51.99 | 0.4732 | -961.0 | -767.2 | |
| 1 | 56 | 1 | 32 | 20.70 | 29.09 | -23.95 | 51.69 | 0.4858 | 448.8 | -354.0 | |
| 5 | -36 | 3 | -36 | 19.83 | 29.19 | -23.85 | 53.12 | 0.4775 | -1145.1 | 999999 | |
| 0 | 3 | 0 | 2 | 18.60 | 29.38 | -23.66 | 55.17 | 0.4653 | -724.0 | -632.7 | |
| 0 | 3 | 0 | 2 | 18.27 | 29.43 | -23.61 | 55.73 | 0.4621 | -843.0 | -622.8 | |
| 12 | 38 | 7 | 21 | 17.21 | 29.44 | -23.60 | 57.76 | 0.4540 | -1395.6 | -948.4 | |
| 3 | -36 | 2 | -36 | 20.11 | 28.82 | -24.22 | 53.00 | 0.4843 | -703.2 | 999999 | |
| 0 | 5 | 0 | 3 | 16.26 | 28.93 | -24.11 | 60.12 | 0.4540 | -798.0 | -761.0 | |
| 3 | 7 | 2 | 4 | 19.11 | 28.20 | -24.84 | 55.42 | 0.4841 | -539.2 | -312.5 | |
| 11 | 178 | 6 | 100 | 17.63 | 28.33 | -24.71 | 58.01 | 0.4715 | -1619.6 | -568.1 | |
| 17 | -44 | 10 | -44 | 18.24 | 28.20 | -24.84 | 57.00 | 0.4777 | -1419.4 | 999999 | |
| 11 | -44 | 7 | -44 | 18.19 | 27.65 | -25.39 | 57.60 | 0.4843 | 884.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
