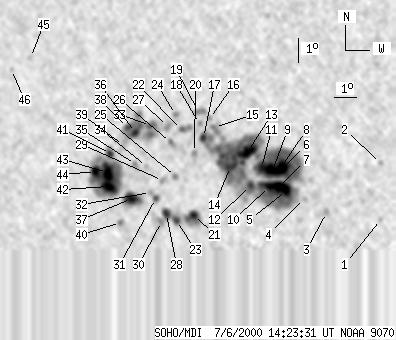

SOHO MDI 2000-07-06 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 189 | 1261 | 103 | 687 | 18.49 | 32.76 | -19.40 | 49.96 | 0.4115 | 286.8 | 92.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 16.53 | 40.25 | -11.91 | 41.21 | 0.3015 | 976.0 | 695.7 | |
| 0 | 4 | 0 | 2 | 18.82 | 40.10 | -12.06 | 36.79 | 0.3317 | 886.0 | 677.3 | |
| 0 | 4 | 0 | 2 | 16.78 | 37.94 | -14.22 | 45.55 | 0.3308 | 1015.0 | 902.1 | |
| 0 | 4 | 0 | 2 | 17.34 | 36.95 | -15.20 | 46.16 | 0.3485 | -203.0 | -84.1 | |
| 10 | 732 | 5 | 392 | 17.65 | 36.15 | -16.01 | 46.90 | 0.3614 | 1899.9 | 498.9 | |
| 13 | -5 | 7 | -5 | 18.59 | 35.89 | -16.27 | 45.41 | 0.3745 | 2013.4 | 999999 | |
| 12 | -5 | 6 | -5 | 17.81 | 35.79 | -16.37 | 47.18 | 0.3674 | 1790.1 | 999999 | |
| 20 | -5 | 10 | -5 | 18.34 | 35.65 | -16.51 | 46.31 | 0.3746 | 1861.0 | 999999 | |
| -8 | -5 | -8 | -5 | 18.46 | 35.46 | -16.69 | 46.37 | 0.3780 | 999999 | 999999 | |
| 7 | -5 | 4 | -5 | 17.80 | 35.40 | -16.76 | 47.83 | 0.3720 | 1402.4 | 999999 | |
| 9 | -5 | 5 | -5 | 18.58 | 34.97 | -17.18 | 46.93 | 0.3850 | 1313.6 | 999999 | |
| 3 | -5 | 2 | -5 | 17.83 | 34.57 | -17.59 | 49.08 | 0.3823 | 1083.7 | 999999 | |
| 17 | -5 | 9 | -5 | 19.22 | 34.29 | -17.87 | 46.72 | 0.3997 | 1497.2 | 999999 | |
| 9 | -5 | 5 | -5 | 18.59 | 33.61 | -18.55 | 48.95 | 0.4014 | 371.3 | 999999 | |
| 0 | 14 | 0 | 8 | 20.18 | 32.71 | -19.45 | 47.20 | 0.4278 | 854.0 | 282.5 | |
| 0 | 4 | 0 | 2 | 20.55 | 32.43 | -19.72 | 46.90 | 0.4346 | 803.0 | 608.3 | |
| 4 | -5 | 2 | -5 | 19.76 | 32.27 | -19.89 | 48.57 | 0.4288 | -1297.5 | 999999 | |
| 0 | 4 | 0 | 2 | 20.33 | 32.01 | -20.14 | 47.86 | 0.4373 | 239.0 | 223.0 | |
| 0 | 10 | 0 | 5 | 20.83 | 31.90 | -20.26 | 47.12 | 0.4435 | 706.0 | 632.9 | |
| 0 | 5 | 0 | 3 | 19.13 | 31.95 | -20.21 | 50.17 | 0.4268 | -1110.0 | -848.7 | |
| 7 | 33 | 4 | 18 | 16.56 | 32.21 | -19.95 | 55.04 | 0.4007 | -1440.5 | -841.1 | |
| 0 | 12 | 0 | 7 | 20.07 | 31.24 | -20.92 | 49.34 | 0.4440 | 669.0 | 458.0 | |
| 4 | 25 | 2 | 14 | 16.34 | 31.48 | -20.68 | 56.39 | 0.4085 | -1287.0 | -1035.7 | |
| 0 | 4 | 0 | 2 | 20.68 | 30.88 | -21.28 | 48.68 | 0.4539 | 558.0 | 440.0 | |
| 0 | 7 | 0 | 4 | 18.13 | 31.22 | -20.93 | 53.03 | 0.4267 | 546.0 | 505.4 | |
| 0 | 6 | 0 | 4 | 19.52 | 30.82 | -21.34 | 50.86 | 0.4440 | -974.0 | -689.7 | |
| 0 | 9 | 0 | 5 | 20.18 | 30.59 | -21.57 | 49.94 | 0.4527 | 458.0 | 401.4 | |
| 6 | -23 | 3 | -23 | 16.62 | 31.01 | -21.15 | 56.36 | 0.4170 | -1234.3 | 999999 | |
| 0 | 6 | 0 | 3 | 17.96 | 30.67 | -21.49 | 54.04 | 0.4323 | 610.0 | 475.8 | |
| 0 | 5 | 0 | 3 | 16.29 | 30.82 | -21.33 | 57.26 | 0.4169 | -940.0 | -879.7 | |
| 2 | 7 | 1 | 4 | 17.22 | 30.45 | -21.71 | 55.77 | 0.4291 | 446.0 | 173.6 | |
| 0 | 3 | 0 | 2 | 17.46 | 30.19 | -21.96 | 55.57 | 0.4344 | 23.0 | 79.8 | |
| 3 | 108 | 2 | 60 | 20.20 | 29.81 | -22.35 | 50.81 | 0.4622 | -873.0 | -536.9 | |
| 0 | 3 | 0 | 2 | 18.51 | 29.87 | -22.28 | 53.87 | 0.4470 | -960.0 | -705.2 | |
| 0 | 5 | 0 | 3 | 18.58 | 29.37 | -22.79 | 54.29 | 0.4540 | -945.0 | -684.7 | |
| 5 | -33 | 3 | -33 | 19.90 | 29.17 | -22.99 | 52.08 | 0.4674 | -1068.2 | 999999 | |
| 14 | 36 | 8 | 20 | 17.19 | 29.37 | -22.78 | 56.98 | 0.4430 | -1390.4 | -950.8 | |
| 3 | -33 | 2 | -33 | 20.10 | 28.77 | -23.38 | 52.16 | 0.4739 | -692.3 | 999999 | |
| 0 | 10 | 0 | 5 | 19.35 | 28.71 | -23.45 | 53.58 | 0.4685 | -634.0 | -384.5 | |
| 0 | 7 | 0 | 4 | 16.21 | 29.01 | -23.15 | 59.34 | 0.4407 | -887.0 | -798.9 | |
| 4 | 185 | 2 | 104 | 19.01 | 28.16 | -23.99 | 54.77 | 0.4726 | -760.2 | -555.2 | |
| 9 | -41 | 5 | -41 | 17.66 | 28.27 | -23.89 | 57.20 | 0.4609 | -1702.2 | 999999 | |
| 20 | -41 | 11 | -41 | 18.23 | 28.14 | -24.01 | 56.24 | 0.4669 | -1429.3 | 999999 | |
| 8 | -41 | 5 | -41 | 18.25 | 27.59 | -24.57 | 56.73 | 0.4742 | 1015.8 | 999999 | |
| 0 | 4 | 0 | 2 | 22.89 | 23.64 | -28.52 | 52.46 | 0.5568 | 592.0 | 453.0 | |
| 0 | 2 | 0 | 1 | 22.36 | 22.83 | -29.33 | 53.96 | 0.5624 | 547.0 | 496.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
