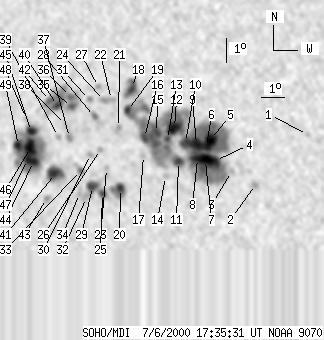

SOHO MDI 2000-07-06 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 224 | 1292 | 119 | 694 | 18.39 | 32.74 | -17.65 | 47.63 | 0.3896 | 271.0 | 93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 18.89 | 40.11 | -10.28 | 32.47 | 0.3157 | 770.0 | 608.9 | |
| 0 | 5 | 0 | 2 | 16.82 | 38.04 | -12.35 | 41.59 | 0.3098 | 1003.0 | 1002.1 | |
| 0 | 5 | 0 | 3 | 17.34 | 36.99 | -13.41 | 42.72 | 0.3276 | 834.0 | 728.4 | |
| 27 | 734 | 14 | 390 | 17.78 | 36.27 | -14.12 | 43.22 | 0.3408 | 1853.6 | 516.2 | |
| 22 | -4 | 12 | -4 | 18.63 | 35.98 | -14.41 | 42.01 | 0.3539 | 1940.1 | 999999 | |
| -5 | -4 | -5 | -4 | 18.34 | 35.83 | -14.56 | 42.88 | 0.3521 | 999999 | 999999 | |
| -4 | -4 | -4 | -4 | 17.77 | 35.84 | -14.55 | 44.06 | 0.3456 | 999999 | 999999 | |
| -4 | -4 | -4 | -4 | 17.85 | 35.49 | -14.90 | 44.55 | 0.3504 | 999999 | 999999 | |
| 15 | -4 | 8 | -4 | 18.42 | 35.39 | -15.00 | 43.54 | 0.3579 | 1804.5 | 999999 | |
| 7 | -4 | 4 | -4 | 18.49 | 34.91 | -15.48 | 44.26 | 0.3642 | 1318.0 | 999999 | |
| 7 | -4 | 4 | -4 | 17.71 | 34.68 | -15.71 | 46.29 | 0.3584 | 1132.4 | 999999 | |
| 15 | -4 | 8 | -4 | 19.10 | 34.38 | -16.02 | 43.99 | 0.3770 | 1588.8 | 999999 | |
| 3 | -4 | 2 | -4 | 18.60 | 34.12 | -16.27 | 45.41 | 0.3745 | 1217.6 | 999999 | |
| 0 | 5 | 0 | 3 | 17.09 | 34.18 | -16.22 | 48.49 | 0.3580 | -74.0 | -11.3 | |
| 7 | -4 | 4 | -4 | 18.88 | 33.61 | -16.78 | 45.69 | 0.3833 | 1057.0 | 999999 | |
| 6 | -4 | 3 | -4 | 18.67 | 33.11 | -17.28 | 46.92 | 0.3870 | -609.3 | 999999 | |
| 0 | 4 | 0 | 2 | 17.93 | 33.14 | -17.25 | 48.37 | 0.3791 | -378.0 | -202.2 | |
| 10 | 30 | 5 | 16 | 20.72 | 32.30 | -18.09 | 44.29 | 0.4177 | 1042.0 | 713.8 | |
| 5 | -4 | 2 | -4 | 19.77 | 32.24 | -18.15 | 46.13 | 0.4084 | -1165.4 | 999999 | |
| 7 | 30 | 4 | 16 | 16.57 | 32.28 | -18.12 | 52.59 | 0.3768 | -1414.4 | -929.3 | |
| 0 | 8 | 0 | 4 | 19.06 | 31.92 | -18.47 | 47.95 | 0.4050 | -694.0 | -428.6 | |
| 0 | 9 | 0 | 5 | 20.21 | 31.47 | -18.92 | 46.43 | 0.4217 | 404.0 | 379.9 | |
| 0 | 12 | 0 | 6 | 17.37 | 31.58 | -18.81 | 51.85 | 0.3930 | 534.0 | -103.4 | |
| 0 | 8 | 0 | 4 | 20.16 | 31.17 | -19.23 | 46.95 | 0.4248 | 262.0 | 33.7 | |
| 4 | 8 | 2 | 4 | 16.35 | 31.51 | -18.88 | 54.13 | 0.3848 | -1394.6 | -1203.5 | |
| 0 | 4 | 0 | 2 | 18.14 | 31.23 | -19.16 | 50.74 | 0.4045 | 621.0 | 440.9 | |
| 0 | 3 | 0 | 2 | 20.73 | 30.82 | -19.57 | 46.39 | 0.4345 | 569.0 | 485.9 | |
| 0 | 6 | 0 | 3 | 19.49 | 30.80 | -19.59 | 48.69 | 0.4225 | -1253.0 | -917.8 | |
| 10 | 25 | 5 | 13 | 16.63 | 31.05 | -19.34 | 54.15 | 0.3932 | -1308.0 | -861.9 | |
| 0 | 5 | 0 | 3 | 17.93 | 30.82 | -19.58 | 51.74 | 0.4077 | 570.0 | 505.6 | |
| 0 | 4 | 0 | 2 | 20.19 | 30.49 | -19.90 | 47.82 | 0.4329 | 353.0 | 321.0 | |
| 0 | 13 | 0 | 7 | 16.18 | 30.83 | -19.56 | 55.41 | 0.3922 | -943.0 | -905.3 | |
| 2 | 11 | 1 | 6 | 17.27 | 30.45 | -19.94 | 53.57 | 0.4065 | 591.2 | 251.9 | |
| 0 | 8 | 0 | 4 | 16.33 | 30.51 | -19.88 | 55.48 | 0.3978 | -855.0 | -701.7 | |
| 4 | 94 | 2 | 52 | 19.88 | 29.72 | -20.67 | 49.39 | 0.4391 | -1423.2 | -375.3 | |
| 2 | -35 | 1 | -35 | 20.29 | 29.62 | -20.77 | 48.77 | 0.4441 | -694.8 | 999999 | |
| 0 | 10 | 0 | 5 | 18.60 | 29.80 | -20.59 | 51.70 | 0.4265 | -812.0 | -792.9 | |
| 0 | 3 | 0 | 2 | 19.13 | 29.55 | -20.84 | 51.00 | 0.4343 | -838.0 | -727.3 | |
| 0 | 4 | 0 | 2 | 18.64 | 29.30 | -21.09 | 52.26 | 0.4329 | -719.0 | -606.0 | |
| 6 | -35 | 3 | -35 | 19.91 | 29.09 | -21.30 | 50.13 | 0.4469 | -862.2 | 999999 | |
| 17 | 42 | 9 | 23 | 17.12 | 29.36 | -21.03 | 55.21 | 0.4194 | -1433.7 | -867.7 | |
| 3 | -35 | 2 | -35 | 20.11 | 28.70 | -21.70 | 50.24 | 0.4534 | -760.3 | 999999 | |
| 0 | 5 | 0 | 3 | 16.10 | 29.08 | -21.31 | 57.67 | 0.4150 | -844.0 | -769.1 | |
| 13 | 189 | 7 | 105 | 17.59 | 28.32 | -22.07 | 55.45 | 0.4367 | -1606.9 | -623.7 | |
| 8 | -44 | 4 | -44 | 18.81 | 28.06 | -22.33 | 53.37 | 0.4499 | -968.8 | 999999 | |
| 17 | -44 | 9 | -44 | 18.16 | 28.11 | -22.28 | 54.57 | 0.4440 | -1518.0 | 999999 | |
| -44 | -44 | -44 | -44 | 17.66 | 28.04 | -22.35 | 55.61 | 0.4409 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | 19.34 | 27.76 | -22.63 | 52.72 | 0.4581 | -420.0 | -419.4 | |
| 7 | -44 | 4 | -44 | 18.23 | 27.56 | -22.83 | 55.04 | 0.4516 | 900.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
