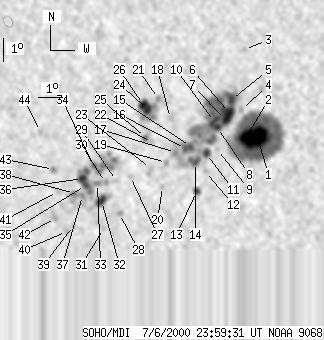

SOHO MDI 2000-07-06 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136 | 937 | 72 | 500 | -18.10 | 49.36 | 2.50 | 186.61 | 0.3761 | -950.3 | -239.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-06 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 336 | 28 | 180 | -17.87 | 51.97 | 5.11 | 193.04 | 0.3770 | -2053.9 | -640.7 | |
| -1 | -1 | -1 | -1 | -17.91 | 51.47 | 4.61 | 191.78 | 0.3759 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | -14.20 | 51.34 | 4.48 | 193.92 | 0.3162 | -521.0 | -416.2 | |
| 0 | 4 | 0 | 2 | -16.72 | 51.27 | 4.41 | 191.98 | 0.3563 | -710.0 | -592.8 | |
| 7 | 215 | 4 | 114 | -16.30 | 50.85 | 3.99 | 191.10 | 0.3481 | -1447.1 | -812.5 | |
| 17 | -5 | 9 | -5 | -16.84 | 50.78 | 3.92 | 190.61 | 0.3567 | -1798.9 | 999999 | |
| -6 | -5 | -6 | -5 | -17.14 | 50.62 | 3.76 | 190.03 | 0.3610 | 999999 | 999999 | |
| 4 | -5 | 2 | -5 | -17.48 | 50.29 | 3.43 | 189.02 | 0.3655 | -1407.6 | 999999 | |
| 0 | 4 | 0 | 2 | -18.41 | 50.31 | 3.45 | 188.66 | 0.3806 | -158.0 | -158.0 | |
| 6 | -5 | 3 | -5 | -17.22 | 50.16 | 3.30 | 188.80 | 0.3611 | -1443.2 | 999999 | |
| 6 | 16 | 3 | 9 | -18.58 | 49.85 | 2.99 | 187.47 | 0.3823 | -1036.7 | -898.5 | |
| 0 | 4 | 0 | 2 | -19.36 | 49.82 | 2.96 | 187.13 | 0.3946 | -745.0 | -571.0 | |
| 4 | 9 | 2 | 5 | -20.22 | 49.46 | 2.60 | 186.02 | 0.4077 | -893.5 | -747.0 | |
| 3 | 16 | 2 | 9 | -18.97 | 49.40 | 2.54 | 186.23 | 0.3876 | -1082.6 | -995.4 | |
| 3 | 18 | 2 | 9 | -18.28 | 49.18 | 2.32 | 185.89 | 0.3762 | -1411.5 | -1110.3 | |
| 2 | -15 | 1 | -15 | -18.37 | 48.97 | 2.11 | 185.34 | 0.3772 | -1208.1 | 999999 | |
| 0 | 17 | 0 | 9 | -18.54 | 48.56 | 1.70 | 184.26 | 0.3794 | -274.0 | -340.7 | |
| 0 | 8 | 0 | 4 | -17.09 | 48.33 | 1.47 | 183.98 | 0.3556 | 578.0 | 561.7 | |
| 0 | 4 | 0 | 2 | -18.97 | 48.18 | 1.32 | 183.26 | 0.3859 | -967.0 | -697.1 | |
| 0 | 3 | 0 | 1 | -20.00 | 48.02 | 1.16 | 182.73 | 0.4024 | -633.0 | -654.2 | |
| 0 | 7 | 0 | 4 | -16.24 | 47.83 | 0.97 | 182.75 | 0.3413 | 1232.0 | 963.8 | |
| 0 | 3 | 0 | 2 | -18.11 | 47.55 | 0.69 | 181.78 | 0.3716 | 610.0 | 555.1 | |
| 0 | 10 | 0 | 5 | -19.22 | 47.51 | 0.65 | 181.59 | 0.3896 | -463.0 | -413.8 | |
| 5 | 53 | 3 | 28 | -16.71 | 47.38 | 0.52 | 181.44 | 0.3486 | 1483.9 | 762.3 | |
| 0 | 10 | 0 | 5 | -17.90 | 47.30 | 0.44 | 181.14 | 0.3680 | 1128.0 | 832.1 | |
| 7 | -24 | 3 | -24 | -16.50 | 47.22 | 0.35 | 180.99 | 0.3451 | 1522.4 | 999999 | |
| 0 | 4 | 0 | 2 | -19.57 | 46.68 | -0.19 | 179.56 | 0.3950 | 802.0 | 573.8 | |
| 0 | 4 | 0 | 2 | -21.17 | 46.21 | -0.65 | 178.54 | 0.4208 | 708.0 | 690.6 | |
| 0 | 5 | 0 | 3 | -19.74 | 46.09 | -0.77 | 178.16 | 0.3980 | 391.0 | 381.5 | |
| 0 | 4 | 0 | 2 | -19.83 | 45.62 | -1.24 | 177.07 | 0.3997 | 958.0 | 827.6 | |
| 0 | 3 | 0 | 2 | -21.83 | 45.52 | -1.34 | 177.11 | 0.4317 | 689.0 | 584.1 | |
| 10 | 23 | 5 | 12 | -20.61 | 45.45 | -1.41 | 176.78 | 0.4123 | 1207.2 | 798.4 | |
| 0 | 6 | 0 | 3 | -19.87 | 45.29 | -1.58 | 176.29 | 0.4007 | 1180.0 | 1062.9 | |
| 0 | 56 | 0 | 30 | -19.09 | 45.13 | -1.74 | 175.76 | 0.3885 | 1481.0 | 1007.3 | |
| 3 | 40 | 2 | 22 | -19.96 | 44.78 | -2.08 | 175.12 | 0.4027 | 1309.8 | 1132.6 | |
| 6 | -35 | 3 | -35 | -19.66 | 44.66 | -2.20 | 174.76 | 0.3981 | 1312.8 | 999999 | |
| 0 | 13 | 0 | 7 | -20.39 | 44.65 | -2.21 | 174.91 | 0.4098 | 1303.0 | 901.8 | |
| 0 | 10 | 0 | 5 | -20.30 | 44.31 | -2.55 | 174.12 | 0.4090 | 1031.0 | 997.5 | |
| 0 | 4 | 0 | 2 | -21.70 | 44.24 | -2.62 | 174.33 | 0.4311 | 611.0 | 575.9 | |
| 0 | 4 | 0 | 2 | -21.96 | 43.94 | -2.92 | 173.75 | 0.4358 | 776.0 | 622.3 | |
| 0 | 3 | 0 | 2 | -20.22 | 43.59 | -3.27 | 172.45 | 0.4090 | 690.0 | 553.5 | |
| 0 | 10 | 0 | 6 | -21.40 | 43.48 | -3.38 | 172.60 | 0.4277 | 932.0 | 698.8 | |
| 0 | 4 | 0 | 2 | -19.27 | 43.44 | -3.42 | 171.76 | 0.3942 | 1189.0 | 1035.9 | |
| 0 | 3 | 0 | 2 | -17.65 | 42.93 | -3.93 | 169.79 | 0.3697 | 997.0 | 775.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
