SOHO MDI 2000-07-07 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 226 | 1376 | 119 | 724 | 18.26 | 32.94 | -13.04 | 39.41 | 0.3363 | 108.1 | 118.2 | |
|
previous
or next observation for the same group /

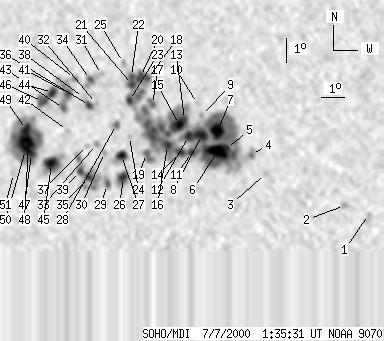

back to the solar disc SOHO MDI 2000-07-07 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 10 | 0 | 5 | 15.19 | 42.56 | -3.42 | 16.00 | 0.2100 | 775.0 | 536.1 | |
| 0 | 5 | 0 | 2 | 15.55 | 41.56 | -4.42 | 19.70 | 0.2211 | -1012.0 | -837.7 | |
| 0 | 4 | 0 | 2 | 16.83 | 38.25 | -7.73 | 29.32 | 0.2642 | 1005.0 | 873.5 | |
| 0 | 17 | 0 | 9 | 17.60 | 37.63 | -8.35 | 29.73 | 0.2804 | 1270.0 | 840.5 | |
| 2 | 660 | 1 | 343 | 17.83 | 36.56 | -9.42 | 32.28 | 0.2929 | 1833.5 | 649.5 | |
| 26 | -5 | 13 | -5 | 17.71 | 36.19 | -9.79 | 33.52 | 0.2946 | 1893.7 | 999999 | |
| 17 | -5 | 9 | -5 | 18.56 | 36.14 | -9.84 | 32.02 | 0.3068 | 1852.7 | 999999 | |
| 14 | -5 | 8 | -5 | 18.35 | 35.47 | -10.50 | 34.10 | 0.3100 | 1639.1 | 999999 | |
| 0 | 5 | 0 | 2 | 19.17 | 35.42 | -10.56 | 32.71 | 0.3216 | 650.0 | 445.8 | |
| 0 | 4 | 0 | 2 | 19.66 | 35.22 | -10.76 | 32.34 | 0.3301 | 292.0 | 325.6 | |
| 4 | -5 | 2 | -5 | 17.65 | 35.09 | -10.88 | 36.43 | 0.3044 | 936.5 | 999999 | |
| 6 | -5 | 3 | -5 | 18.30 | 34.93 | -11.05 | 35.53 | 0.3146 | 1609.8 | 999999 | |
| 2 | -5 | 1 | -5 | 19.00 | 34.71 | -11.27 | 34.72 | 0.3258 | 1119.8 | 999999 | |
| 5 | -5 | 3 | -5 | 17.65 | 34.63 | -11.35 | 37.57 | 0.3090 | 1246.7 | 999999 | |
| 8 | -5 | 4 | -5 | 18.79 | 34.51 | -11.47 | 35.57 | 0.3250 | 1645.2 | 999999 | |
| 7 | -5 | 4 | -5 | 17.93 | 34.06 | -11.92 | 38.32 | 0.3183 | 1170.3 | 999999 | |
| 0 | 9 | 0 | 5 | 19.60 | 33.29 | -12.69 | 36.76 | 0.3472 | 1037.0 | 543.2 | |
| 3 | 97 | 2 | 52 | 20.67 | 32.99 | -12.99 | 35.49 | 0.3639 | 1203.5 | 344.8 | |
| 2 | 17 | 1 | 9 | 17.59 | 33.19 | -12.79 | 40.96 | 0.3234 | -539.3 | -547.0 | |
| 6 | -18 | 3 | -18 | 20.75 | 32.67 | -13.30 | 35.98 | 0.3678 | 1188.0 | 999999 | |
| 4 | -18 | 2 | -18 | 20.41 | 32.36 | -13.62 | 37.20 | 0.3667 | 1003.1 | 999999 | |
| 3 | -18 | 1 | -18 | 20.74 | 32.28 | -13.70 | 36.76 | 0.3715 | 932.6 | 999999 | |
| 5 | -18 | 3 | -18 | 19.75 | 32.28 | -13.69 | 38.53 | 0.3592 | -1148.3 | 999999 | |
| 0 | 3 | 0 | 1 | 18.27 | 32.41 | -13.57 | 41.15 | 0.3400 | -764.0 | -627.9 | |
| 0 | 6 | 0 | 3 | 21.32 | 31.88 | -14.10 | 36.56 | 0.3826 | 490.0 | 336.4 | |
| 8 | 27 | 4 | 14 | 16.60 | 32.28 | -13.70 | 45.05 | 0.3221 | -1469.1 | -867.2 | |
| 8 | 23 | 4 | 12 | 17.49 | 32.13 | -13.85 | 43.36 | 0.3340 | 895.1 | 244.8 | |
| 0 | 11 | 0 | 6 | 18.76 | 31.81 | -14.17 | 41.37 | 0.3522 | 926.0 | 506.6 | |
| 3 | 11 | 1 | 6 | 16.30 | 31.62 | -14.36 | 47.03 | 0.3267 | -1295.9 | -1001.0 | |
| 0 | 4 | 0 | 2 | 17.60 | 31.39 | -14.59 | 44.55 | 0.3437 | 611.0 | 376.8 | |
| 0 | 9 | 0 | 5 | 20.81 | 30.96 | -15.01 | 39.12 | 0.3854 | 563.0 | 13.8 | |
| 0 | 3 | 0 | 2 | 19.61 | 30.87 | -15.11 | 41.49 | 0.3723 | 190.0 | 79.4 | |
| 0 | 4 | 0 | 2 | 17.92 | 31.02 | -14.96 | 44.56 | 0.3515 | 727.0 | 470.4 | |
| 3 | 13 | 2 | 7 | 20.59 | 30.50 | -15.47 | 40.32 | 0.3876 | -999.4 | -760.3 | |
| 5 | 79 | 3 | 42 | 16.58 | 30.83 | -15.15 | 47.86 | 0.3392 | -1461.7 | -742.2 | |
| 5 | 12 | 3 | 6 | 19.52 | 30.57 | -15.41 | 42.19 | 0.3745 | -1212.9 | -703.5 | |
| 0 | 4 | 0 | 2 | 17.88 | 30.64 | -15.34 | 45.36 | 0.3554 | 514.0 | 426.6 | |
| 0 | 5 | 0 | 3 | 19.84 | 30.27 | -15.70 | 42.09 | 0.3814 | -830.0 | -713.3 | |
| 4 | -35 | 2 | -35 | 16.81 | 30.43 | -15.55 | 48.05 | 0.3466 | -1070.9 | 999999 | |
| 0 | 6 | 0 | 3 | 20.62 | 29.80 | -16.18 | 41.48 | 0.3954 | 507.0 | 352.0 | |
| 4 | 47 | 2 | 25 | 20.00 | 29.60 | -16.38 | 42.95 | 0.3905 | -1491.2 | -746.5 | |
| 0 | 3 | 0 | 2 | 18.48 | 29.71 | -16.26 | 45.72 | 0.3726 | -1015.0 | -897.6 | |
| 3 | -41 | 1 | -41 | 19.38 | 29.45 | -16.53 | 44.38 | 0.3854 | -1363.1 | 999999 | |
| 6 | 42 | 3 | 23 | 20.03 | 28.89 | -17.08 | 44.05 | 0.3987 | -382.1 | -191.9 | |
| 14 | 46 | 8 | 25 | 17.12 | 29.15 | -16.83 | 49.51 | 0.3654 | -1547.4 | -949.3 | |
| 6 | -44 | 3 | -44 | 19.65 | 28.49 | -17.48 | 45.39 | 0.3991 | -336.1 | 999999 | |
| 33 | 186 | 18 | 100 | 17.51 | 28.24 | -17.74 | 50.07 | 0.3805 | -1709.0 | -644.2 | |
| -47 | -47 | -47 | -47 | 17.96 | 28.06 | -17.91 | 49.40 | 0.3870 | 999999 | 999999 | |
| 10 | -47 | 5 | -47 | 18.49 | 27.92 | -18.06 | 48.54 | 0.3940 | -1275.5 | 999999 | |
| -47 | -47 | -47 | -47 | 17.67 | 27.96 | -18.01 | 50.15 | 0.3855 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | 16.68 | 27.54 | -18.44 | 52.88 | 0.3816 | -649.0 | -469.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
