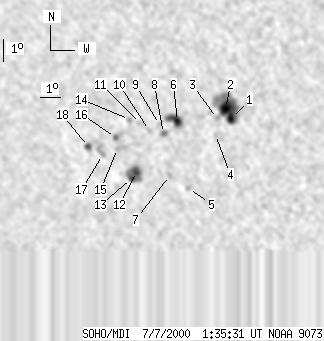

SOHO MDI 2000-07-07 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 216 | 22 | 133 | -20.10 | 17.20 | -28.78 | 131.22 | 0.6020 | -479.2 | -141.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 85 | 4 | 51 | -19.34 | 20.02 | -25.96 | 132.90 | 0.5660 | -1001.6 | -755.0 | |
| 11 | -1 | 7 | -1 | -18.92 | 19.81 | -26.17 | 132.10 | 0.5644 | -1439.0 | 999999 | |
| 0 | 4 | 0 | 2 | -19.36 | 19.36 | -26.62 | 132.24 | 0.5732 | -528.0 | -593.5 | |
| 0 | 4 | 0 | 2 | -20.05 | 19.14 | -26.84 | 132.96 | 0.5817 | -320.0 | -323.8 | |
| 0 | 5 | 0 | 3 | -22.46 | 17.34 | -28.63 | 134.31 | 0.6211 | 845.0 | 621.3 | |
| 7 | 26 | 4 | 16 | -19.55 | 17.43 | -28.55 | 130.59 | 0.5954 | -1150.6 | -744.5 | |
| 0 | 4 | 0 | 3 | -21.92 | 16.54 | -29.44 | 132.87 | 0.6245 | 943.0 | 668.1 | |
| 0 | 6 | 0 | 4 | -20.09 | 16.64 | -29.34 | 130.59 | 0.6082 | -675.0 | -507.6 | |
| 0 | 3 | 0 | 2 | -19.70 | 16.53 | -29.45 | 129.97 | 0.6062 | 207.0 | 149.9 | |
| 0 | 4 | 0 | 2 | -19.98 | 15.98 | -29.99 | 129.86 | 0.6142 | -414.0 | -310.3 | |
| 0 | 2 | 0 | 1 | -19.69 | 15.61 | -30.37 | 129.14 | 0.6160 | 104.0 | -95.1 | |
| 5 | 32 | 3 | 20 | -21.80 | 14.93 | -31.05 | 131.29 | 0.6396 | 1362.2 | 900.4 | |
| 4 | -12 | 2 | -12 | -22.11 | 14.60 | -31.37 | 131.41 | 0.6454 | 549.4 | 999999 | |
| 0 | 4 | 0 | 3 | -19.54 | 15.10 | -30.88 | 128.49 | 0.6202 | -503.0 | -359.0 | |
| 0 | 10 | 0 | 7 | -20.82 | 14.22 | -31.76 | 129.44 | 0.6393 | 682.0 | 548.5 | |
| 0 | 6 | 0 | 4 | -20.34 | 14.23 | -31.75 | 128.83 | 0.6356 | 916.0 | 663.9 | |
| 0 | 13 | 0 | 8 | -21.11 | 13.40 | -32.58 | 129.14 | 0.6500 | 372.0 | 699.5 | |
| 3 | 8 | 2 | 5 | -20.78 | 12.77 | -33.21 | 128.22 | 0.6541 | 739.1 | 592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
