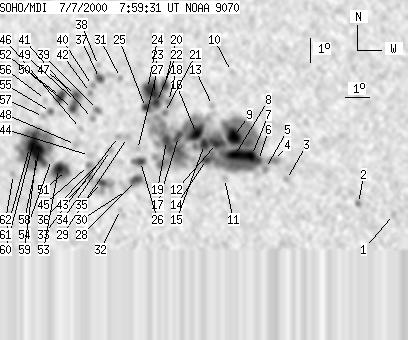

SOHO MDI 2000-07-07 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 222 | 1442 | 115 | 749 | 18.30 | 33.25 | -9.20 | 30.90 | 0.2961 | 252.8 | 147.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 15.39 | 42.89 | 0.44 | 357.92 | 0.2048 | 929.0 | 617.1 | |
| 0 | 5 | 0 | 2 | 15.83 | 41.45 | -1.00 | 4.54 | 0.2129 | -1070.0 | -762.3 | |
| 0 | 5 | 0 | 3 | 16.80 | 38.46 | -3.98 | 16.27 | 0.2385 | 1006.0 | 741.1 | |
| 0 | 11 | 0 | 5 | 17.57 | 37.95 | -4.50 | 17.24 | 0.2535 | 1079.0 | 1021.2 | |
| 0 | 8 | 0 | 4 | 17.24 | 37.58 | -4.87 | 18.99 | 0.2502 | 1284.0 | 1084.2 | |
| 4 | 793 | 2 | 409 | 17.57 | 37.28 | -5.17 | 19.61 | 0.2570 | 1212.6 | 562.2 | |
| 27 | -6 | 14 | -6 | 17.77 | 36.98 | -5.47 | 20.36 | 0.2619 | 1976.2 | 999999 | |
| -7 | -6 | -7 | -6 | 17.76 | 36.27 | -6.18 | 22.74 | 0.2663 | 999999 | 999999 | |
| 18 | -6 | 9 | -6 | 18.54 | 36.20 | -6.25 | 21.82 | 0.2788 | 1777.7 | 999999 | |
| 0 | 4 | 0 | 2 | 21.22 | 36.01 | -6.44 | 19.06 | 0.3215 | 895.0 | 679.6 | |
| 0 | 5 | 0 | 2 | 16.82 | 35.89 | -6.56 | 25.57 | 0.2546 | -522.0 | -235.0 | |
| 4 | -6 | 2 | -6 | 18.25 | 35.50 | -6.95 | 24.44 | 0.2789 | 1889.7 | 999999 | |
| 0 | 3 | 0 | 2 | 19.81 | 35.26 | -7.18 | 22.86 | 0.3042 | 473.0 | 598.1 | |
| 5 | -6 | 3 | -6 | 17.59 | 35.11 | -7.34 | 26.74 | 0.2719 | 1011.4 | 999999 | |
| 8 | -6 | 4 | -6 | 18.20 | 35.00 | -7.45 | 26.04 | 0.2818 | 1625.3 | 999999 | |
| 12 | -6 | 6 | -6 | 18.65 | 34.64 | -7.81 | 26.36 | 0.2911 | 1517.2 | 999999 | |
| 6 | -6 | 3 | -6 | 18.52 | 33.89 | -8.56 | 28.72 | 0.2951 | 1225.5 | 999999 | |
| 0 | 10 | 0 | 5 | 19.96 | 33.38 | -9.06 | 27.72 | 0.3198 | 1220.0 | 945.1 | |
| 7 | -6 | 4 | -6 | 18.35 | 33.39 | -9.06 | 30.39 | 0.2968 | 836.6 | 999999 | |
| 6 | 96 | 3 | 50 | 20.62 | 33.17 | -9.27 | 27.25 | 0.3309 | 1161.9 | 542.3 | |
| 0 | 10 | 0 | 5 | 19.50 | 33.24 | -9.21 | 28.81 | 0.3144 | 946.0 | 516.8 | |
| 6 | -20 | 3 | -20 | 19.91 | 32.87 | -9.57 | 29.08 | 0.3231 | 405.6 | 999999 | |
| 21 | -20 | 11 | -20 | 20.24 | 32.72 | -9.72 | 28.93 | 0.3290 | 1339.9 | 999999 | |
| -23 | -20 | -23 | -20 | 20.49 | 32.45 | -10.00 | 29.21 | 0.3346 | 999999 | 999999 | |
| 4 | -20 | 2 | -20 | 19.70 | 32.42 | -10.03 | 30.56 | 0.3239 | -1170.9 | 999999 | |
| 6 | 17 | 3 | 9 | 17.48 | 32.34 | -10.11 | 34.86 | 0.2942 | 1071.7 | 613.4 | |
| 0 | 2 | 0 | 1 | 17.97 | 32.18 | -10.26 | 34.28 | 0.3023 | -558.0 | -514.6 | |
| 8 | 19 | 4 | 10 | 16.71 | 32.21 | -10.23 | 36.83 | 0.2852 | -1390.1 | -937.9 | |
| 0 | 4 | 0 | 2 | 18.46 | 31.73 | -10.72 | 34.47 | 0.3131 | 816.0 | 693.6 | |
| 0 | 11 | 0 | 5 | 16.30 | 31.81 | -10.63 | 38.79 | 0.2839 | -898.0 | -690.7 | |
| 0 | 3 | 0 | 2 | 20.93 | 31.26 | -11.19 | 31.27 | 0.3507 | 513.0 | 383.4 | |
| 0 | 3 | 0 | 1 | 15.53 | 31.61 | -10.84 | 41.18 | 0.2765 | -698.0 | -658.3 | |
| 0 | 4 | 0 | 2 | 18.50 | 31.34 | -11.10 | 35.33 | 0.3172 | 797.0 | 645.8 | |
| 0 | 5 | 0 | 2 | 17.92 | 31.04 | -11.40 | 37.19 | 0.3126 | 858.0 | 707.3 | |
| 4 | 32 | 2 | 17 | 16.61 | 30.74 | -11.70 | 40.71 | 0.2993 | -1425.8 | -975.9 | |
| 0 | 3 | 0 | 2 | 17.46 | 30.61 | -11.84 | 39.16 | 0.3114 | -776.0 | -714.8 | |
| 5 | 15 | 3 | 8 | 20.88 | 30.35 | -12.09 | 33.32 | 0.3579 | -1126.1 | -541.3 | |
| 0 | 3 | 0 | 1 | 21.41 | 30.26 | -12.18 | 32.64 | 0.3658 | -167.0 | -209.7 | |
| 0 | 9 | 0 | 5 | 19.59 | 30.37 | -12.08 | 35.51 | 0.3409 | -1312.0 | -891.2 | |
| 0 | 4 | 0 | 2 | 20.58 | 30.07 | -12.37 | 34.41 | 0.3566 | -792.0 | -611.2 | |
| 0 | 5 | 0 | 3 | 19.22 | 30.18 | -12.27 | 36.60 | 0.3379 | -1015.0 | -863.2 | |
| 0 | 4 | 0 | 2 | 20.29 | 30.01 | -12.44 | 35.04 | 0.3534 | -1037.0 | -862.1 | |
| 0 | 7 | 0 | 4 | 16.85 | 30.22 | -12.22 | 41.38 | 0.3079 | -1078.0 | -812.8 | |
| 0 | 6 | 0 | 3 | 17.70 | 30.16 | -12.28 | 39.65 | 0.3190 | 477.0 | 291.0 | |
| 0 | 5 | 0 | 3 | 17.30 | 30.15 | -12.30 | 40.56 | 0.3141 | 408.0 | 420.5 | |
| 0 | 4 | 0 | 2 | 18.80 | 29.70 | -12.75 | 38.44 | 0.3375 | -696.0 | -635.1 | |
| 4 | 39 | 2 | 21 | 20.20 | 29.37 | -13.08 | 36.53 | 0.3583 | -1224.9 | -992.7 | |
| 0 | 5 | 0 | 3 | 18.15 | 29.53 | -12.91 | 40.10 | 0.3311 | -928.0 | -742.2 | |
| 1 | -47 | 0 | -47 | 19.91 | 29.39 | -13.05 | 37.00 | 0.3544 | -1491.0 | 999999 | |
| 5 | -47 | 3 | -47 | 19.62 | 29.29 | -13.16 | 37.74 | 0.3518 | -1422.4 | 999999 | |
| 4 | 47 | 2 | 25 | 17.08 | 29.23 | -13.22 | 43.03 | 0.3217 | -1443.6 | -1004.2 | |
| 9 | 21 | 5 | 11 | 20.11 | 28.73 | -13.72 | 37.98 | 0.3635 | -132.0 | -19.9 | |
| 12 | -51 | 6 | -51 | 17.16 | 28.88 | -13.56 | 43.57 | 0.3265 | -1579.1 | 999999 | |
| 0 | 3 | 0 | 2 | 17.52 | 28.56 | -13.89 | 43.44 | 0.3344 | -941.0 | -869.2 | |
| 0 | 6 | 0 | 3 | 19.48 | 28.35 | -14.10 | 39.87 | 0.3598 | -597.0 | -410.9 | |
| 0 | 4 | 0 | 2 | 19.97 | 28.09 | -14.36 | 39.45 | 0.3684 | -592.0 | -397.6 | |
| 0 | 4 | 0 | 2 | 19.27 | 28.06 | -14.38 | 40.82 | 0.3603 | -468.0 | -377.0 | |
| 8 | 188 | 4 | 99 | 17.96 | 28.01 | -14.44 | 43.57 | 0.3457 | -2035.7 | -753.6 | |
| 28 | -58 | 15 | -58 | 17.67 | 27.90 | -14.55 | 44.38 | 0.3436 | -1605.9 | 999999 | |
| -59 | -58 | -59 | -58 | 18.37 | 27.76 | -14.69 | 43.20 | 0.3531 | 999999 | 999999 | |
| -59 | -58 | -59 | -58 | 17.99 | 27.57 | -14.87 | 44.31 | 0.3510 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | 16.88 | 26.98 | -15.47 | 47.80 | 0.3460 | -815.0 | -705.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
