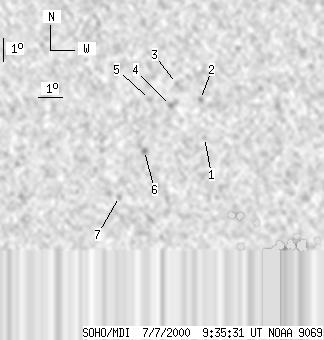

SOHO MDI 2000-07-07 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 30 | 0 | 16 | -14.39 | 40.05 | -1.52 | 175.46 | 0.3123 | -825.6 | -660.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -14.61 | 41.80 | 0.24 | 180.73 | 0.3145 | -492.0 | -556.8 | |
| 0 | 4 | 0 | 2 | -13.03 | 41.64 | 0.07 | 180.24 | 0.2881 | -716.0 | -609.2 | |
| 0 | 3 | 0 | 1 | -12.37 | 40.66 | -0.90 | 176.81 | 0.2774 | -1037.0 | -955.4 | |
| 0 | 6 | 0 | 3 | -13.28 | 40.41 | -1.15 | 176.16 | 0.2929 | -1004.0 | -729.2 | |
| 0 | 4 | 0 | 2 | -13.03 | 39.56 | -2.00 | 173.23 | 0.2901 | -613.0 | -472.2 | |
| 0 | 5 | 0 | 3 | -15.15 | 39.34 | -2.23 | 173.36 | 0.3257 | -1006.0 | -802.9 | |
| 0 | 5 | 0 | 3 | -17.09 | 38.28 | -3.28 | 171.20 | 0.3596 | -911.0 | -580.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
