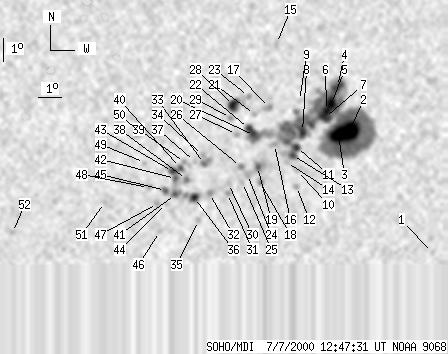

SOHO MDI 2000-07-07 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145 | 941 | 80 | 509 | -18.11 | 49.55 | 9.75 | 203.51 | 0.4075 | -831.8 | -346.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -23.25 | 56.00 | 16.20 | 209.66 | 0.5201 | 648.0 | 544.9 | |
| 53 | 622 | 29 | 337 | -17.88 | 51.86 | 12.07 | 208.54 | 0.4181 | -1991.7 | -767.3 | |
| -2 | -2 | -2 | -2 | -18.04 | 51.41 | 11.61 | 207.44 | 0.4169 | 999999 | 999999 | |
| 9 | -2 | 5 | -2 | -16.01 | 51.24 | 11.44 | 209.62 | 0.3873 | -1338.6 | 999999 | |
| 11 | -2 | 6 | -2 | -16.72 | 51.03 | 11.23 | 208.25 | 0.3956 | -1806.2 | 999999 | |
| 5 | -2 | 3 | -2 | -17.02 | 50.83 | 11.04 | 207.48 | 0.3983 | -2079.9 | 999999 | |
| 10 | -2 | 5 | -2 | -17.31 | 50.77 | 10.97 | 206.99 | 0.4020 | -1619.5 | 999999 | |
| 7 | -2 | 4 | -2 | -17.90 | 49.87 | 10.07 | 204.43 | 0.4041 | -1533.0 | 999999 | |
| 0 | 4 | 0 | 2 | -16.58 | 49.67 | 9.87 | 205.48 | 0.3837 | -380.0 | -346.1 | |
| 0 | 2 | 0 | 1 | -19.57 | 49.76 | 9.96 | 202.51 | 0.4276 | -637.0 | -586.2 | |
| 4 | -2 | 2 | -2 | -18.58 | 49.66 | 9.86 | 203.27 | 0.4126 | -1159.7 | 999999 | |
| 0 | 5 | 0 | 3 | -20.26 | 49.76 | 9.96 | 201.87 | 0.4376 | -765.0 | -630.7 | |
| 4 | -2 | 2 | -2 | -18.92 | 49.51 | 9.71 | 202.62 | 0.4166 | -1142.4 | 999999 | |
| 0 | 4 | 0 | 2 | -19.22 | 49.27 | 9.47 | 201.83 | 0.4196 | -619.0 | -576.9 | |
| 0 | 6 | 0 | 3 | -14.18 | 48.61 | 8.81 | 205.92 | 0.3412 | -366.0 | -291.6 | |
| 0 | 6 | 0 | 3 | -18.44 | 48.72 | 8.92 | 201.40 | 0.4049 | -841.0 | -670.4 | |
| 0 | 8 | 0 | 5 | -16.86 | 48.43 | 8.63 | 202.32 | 0.3798 | 1051.0 | 841.4 | |
| 0 | 4 | 0 | 2 | -20.07 | 48.21 | 8.41 | 198.89 | 0.4263 | -784.0 | -675.2 | |
| 3 | 16 | 2 | 9 | -19.38 | 48.05 | 8.25 | 199.11 | 0.4151 | -1132.4 | -942.8 | |
| 6 | 51 | 3 | 27 | -18.05 | 47.86 | 8.06 | 199.85 | 0.3941 | 597.3 | 253.9 | |
| 0 | 3 | 0 | 2 | -17.15 | 47.82 | 8.02 | 200.60 | 0.3805 | 894.0 | 754.1 | |
| 4 | -20 | 2 | -20 | -17.75 | 47.59 | 7.79 | 199.52 | 0.3882 | 1361.5 | 999999 | |
| 0 | 4 | 0 | 2 | -16.39 | 47.53 | 7.73 | 200.67 | 0.3673 | 1061.0 | 825.0 | |
| 0 | 9 | 0 | 5 | -19.72 | 47.64 | 7.84 | 197.96 | 0.4182 | -32.0 | -172.0 | |
| 0 | 4 | 0 | 2 | -20.06 | 47.45 | 7.65 | 197.28 | 0.4224 | -74.0 | -329.0 | |
| 0 | 7 | 0 | 4 | -19.37 | 47.33 | 7.53 | 197.56 | 0.4114 | -642.0 | -406.1 | |
| 0 | 4 | 0 | 2 | -18.00 | 47.10 | 7.30 | 198.16 | 0.3894 | 1111.0 | 951.8 | |
| 10 | 21 | 5 | 11 | -16.76 | 46.92 | 7.12 | 198.82 | 0.3697 | 1614.9 | 1061.1 | |
| 0 | 5 | 0 | 3 | -17.27 | 46.82 | 7.02 | 198.11 | 0.3769 | 1042.0 | 905.8 | |
| 0 | 6 | 0 | 3 | -20.10 | 46.85 | 7.05 | 195.99 | 0.4203 | 711.0 | 390.0 | |
| 0 | 5 | 0 | 3 | -20.53 | 46.83 | 7.03 | 195.65 | 0.4268 | 572.0 | 511.4 | |
| 0 | 6 | 0 | 3 | -20.53 | 46.06 | 6.26 | 194.02 | 0.4236 | 1135.0 | 920.2 | |
| 0 | 13 | 0 | 7 | -19.23 | 45.80 | 6.00 | 194.26 | 0.4026 | 1289.0 | 918.7 | |
| 0 | 3 | 0 | 2 | -18.88 | 45.70 | 5.90 | 194.26 | 0.3968 | 707.0 | 749.5 | |
| 0 | 4 | 0 | 2 | -21.70 | 45.64 | 5.84 | 192.46 | 0.4401 | 599.0 | 485.4 | |
| 5 | 18 | 3 | 10 | -20.70 | 45.43 | 5.63 | 192.56 | 0.4239 | 1205.2 | 964.7 | |
| 0 | 2 | 0 | 1 | -19.14 | 45.38 | 5.58 | 193.34 | 0.3995 | 1192.0 | 1073.0 | |
| 0 | 7 | 0 | 4 | -19.91 | 45.06 | 5.27 | 192.18 | 0.4105 | 1246.0 | 1043.7 | |
| 0 | 5 | 0 | 2 | -19.18 | 44.96 | 5.16 | 192.35 | 0.3987 | 652.0 | 577.8 | |
| 2 | 26 | 1 | 14 | -19.39 | 44.79 | 5.00 | 191.85 | 0.4015 | 1226.2 | 945.7 | |
| 3 | 13 | 2 | 7 | -20.56 | 44.62 | 4.82 | 190.86 | 0.4192 | 1251.4 | 1077.9 | |
| 3 | -40 | 2 | -40 | -19.87 | 44.60 | 4.80 | 191.16 | 0.4083 | 1122.1 | 999999 | |
| 3 | -40 | 2 | -40 | -19.56 | 44.46 | 4.66 | 191.00 | 0.4031 | 1444.8 | 999999 | |
| 0 | 4 | 0 | 2 | -20.95 | 44.25 | 4.45 | 189.88 | 0.4242 | 387.0 | 407.0 | |
| 3 | 8 | 2 | 4 | -20.39 | 44.19 | 4.39 | 190.00 | 0.4152 | 1176.1 | 1033.3 | |
| 0 | 4 | 0 | 2 | -22.18 | 43.99 | 4.19 | 188.83 | 0.4426 | 768.0 | 667.6 | |
| 0 | 5 | 0 | 3 | -20.95 | 43.87 | 4.07 | 189.04 | 0.4232 | 1120.0 | 856.8 | |
| 0 | 4 | 0 | 2 | -20.25 | 43.47 | 3.67 | 188.43 | 0.4113 | 1034.0 | 1062.6 | |
| 0 | 3 | 0 | 2 | -19.17 | 43.27 | 3.47 | 188.40 | 0.3937 | 809.0 | 654.7 | |
| 0 | 8 | 0 | 4 | -17.93 | 43.08 | 3.28 | 188.43 | 0.3734 | 1324.0 | 1001.9 | |
| 0 | 5 | 0 | 3 | -20.90 | 41.62 | 1.82 | 184.08 | 0.4183 | 871.0 | 623.7 | |
| 0 | 4 | 0 | 2 | -22.21 | 37.70 | -2.10 | 175.55 | 0.4394 | 790.0 | 671.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
