SOHO MDI 2000-07-07 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204 | 1464 | 105 | 757 | 18.44 | 33.17 | -4.86 | 17.53 | 0.2675 | 158.5 | 183.7 | |
|
previous
or next observation for the same group /

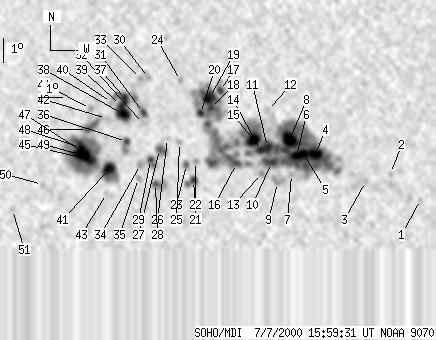

back to the solar disc SOHO MDI 2000-07-07 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 16.06 | 41.70 | 3.66 | 344.04 | 0.2244 | -951.0 | -552.5 | |
| 0 | 3 | 0 | 2 | 17.12 | 40.47 | 2.44 | 350.09 | 0.2373 | 896.0 | 726.2 | |
| 0 | 3 | 0 | 1 | 16.80 | 39.43 | 1.40 | 354.12 | 0.2294 | 915.0 | 813.8 | |
| 13 | 933 | 7 | 479 | 17.94 | 37.36 | -0.67 | 2.59 | 0.2479 | 1900.3 | 633.9 | |
| 8 | -4 | 4 | -4 | 17.94 | 36.86 | -1.17 | 4.51 | 0.2484 | 2076.2 | 999999 | |
| 7 | -4 | 4 | -4 | 17.86 | 36.57 | -1.46 | 5.65 | 0.2475 | 2122.2 | 999999 | |
| 0 | 5 | 0 | 3 | 17.08 | 36.37 | -1.66 | 6.81 | 0.2347 | 518.0 | 378.8 | |
| 18 | -4 | 9 | -4 | 18.51 | 36.27 | -1.76 | 6.48 | 0.2590 | 1830.9 | 999999 | |
| 0 | 13 | 0 | 7 | 16.76 | 35.80 | -2.24 | 9.38 | 0.2306 | -666.0 | -382.0 | |
| 9 | -4 | 4 | -4 | 17.57 | 35.54 | -2.50 | 9.81 | 0.2450 | 1006.0 | 999999 | |
| 9 | -4 | 5 | -4 | 18.22 | 35.36 | -2.67 | 10.00 | 0.2564 | 1724.3 | 999999 | |
| 0 | 3 | 0 | 1 | 19.70 | 35.34 | -2.70 | 9.11 | 0.2811 | -181.0 | -127.3 | |
| 0 | 5 | 0 | 2 | 17.12 | 35.13 | -2.91 | 11.76 | 0.2388 | -903.0 | -558.3 | |
| 4 | -4 | 2 | -4 | 18.06 | 35.07 | -2.96 | 11.18 | 0.2546 | 1867.4 | 999999 | |
| 13 | -4 | 7 | -4 | 18.51 | 34.77 | -3.26 | 11.90 | 0.2630 | 1529.5 | 999999 | |
| 2 | -4 | 1 | -4 | 17.52 | 34.08 | -3.95 | 15.34 | 0.2496 | 1351.1 | 999999 | |
| 4 | -4 | 2 | -4 | 20.52 | 33.33 | -4.70 | 14.83 | 0.3014 | 1147.9 | 999999 | |
| 4 | -4 | 2 | -4 | 19.77 | 32.93 | -5.10 | 16.77 | 0.2913 | 905.7 | 999999 | |
| 14 | -4 | 7 | -4 | 20.23 | 32.87 | -5.16 | 16.48 | 0.2988 | 1495.6 | 999999 | |
| 4 | -4 | 2 | -4 | 19.57 | 32.52 | -5.52 | 18.28 | 0.2901 | -832.1 | 999999 | |
| 0 | 5 | 0 | 3 | 17.60 | 32.37 | -5.66 | 21.32 | 0.2599 | 797.0 | 545.1 | |
| 4 | 17 | 2 | 9 | 16.82 | 32.31 | -5.72 | 22.72 | 0.2482 | -1277.2 | -832.8 | |
| 0 | 7 | 0 | 4 | 17.47 | 32.00 | -6.03 | 22.76 | 0.2603 | 573.0 | 493.4 | |
| 0 | 4 | 0 | 2 | 20.92 | 31.61 | -6.42 | 19.37 | 0.3162 | 604.0 | 482.7 | |
| 0 | 5 | 0 | 3 | 18.37 | 31.67 | -6.36 | 22.47 | 0.2763 | 512.0 | 447.1 | |
| 0 | 3 | 0 | 2 | 18.53 | 31.16 | -6.87 | 23.82 | 0.2821 | 591.0 | 496.9 | |
| 3 | 16 | 1 | 8 | 18.08 | 30.85 | -7.19 | 25.50 | 0.2775 | 1155.6 | 976.1 | |
| 2 | 19 | 1 | 10 | 16.69 | 30.73 | -7.30 | 28.32 | 0.2577 | -1397.4 | -1091.2 | |
| 4 | 14 | 2 | 7 | 17.67 | 30.49 | -7.55 | 27.31 | 0.2740 | 870.1 | 70.1 | |
| 0 | 8 | 0 | 4 | 21.04 | 30.24 | -7.79 | 22.93 | 0.3262 | -579.0 | -506.9 | |
| 4 | 15 | 2 | 8 | 19.59 | 30.10 | -7.93 | 25.31 | 0.3054 | -1223.4 | -999.0 | |
| 0 | 5 | 0 | 2 | 19.14 | 30.12 | -7.91 | 25.93 | 0.2986 | -873.0 | -660.8 | |
| 0 | 3 | 0 | 2 | 20.99 | 29.90 | -8.13 | 23.87 | 0.3278 | -737.0 | -567.9 | |
| 0 | 7 | 0 | 4 | 17.46 | 30.08 | -7.96 | 28.93 | 0.2742 | 861.0 | 657.6 | |
| 0 | 4 | 0 | 2 | 16.89 | 30.02 | -8.02 | 30.20 | 0.2665 | -855.0 | -639.8 | |
| 3 | 18 | 2 | 9 | 18.39 | 29.44 | -8.59 | 29.08 | 0.2929 | -1181.2 | -962.0 | |
| 7 | 75 | 4 | 39 | 20.16 | 29.31 | -8.73 | 26.59 | 0.3196 | -1447.8 | -840.8 | |
| 14 | -37 | 7 | -37 | 19.50 | 29.26 | -8.78 | 27.73 | 0.3104 | -1656.5 | 999999 | |
| 3 | -37 | 2 | -37 | 19.87 | 29.11 | -8.92 | 27.54 | 0.3169 | -1448.9 | 999999 | |
| 0 | 4 | 0 | 2 | 19.99 | 28.72 | -9.32 | 28.36 | 0.3217 | -468.0 | -373.0 | |
| 16 | 46 | 8 | 24 | 17.24 | 28.74 | -9.29 | 33.21 | 0.2827 | -1691.0 | -874.9 | |
| 0 | 8 | 0 | 4 | 19.33 | 28.54 | -9.49 | 29.88 | 0.3136 | -654.0 | -711.7 | |
| 0 | 2 | 0 | 1 | 16.27 | 28.71 | -9.33 | 35.40 | 0.2698 | -818.0 | -743.5 | |
| 0 | 5 | 0 | 3 | 19.73 | 27.84 | -10.20 | 30.97 | 0.3253 | 418.0 | 289.6 | |
| 31 | 175 | 16 | 91 | 17.64 | 27.92 | -10.11 | 34.61 | 0.2959 | -1808.9 | -791.3 | |
| 4 | 23 | 2 | 12 | 18.87 | 27.76 | -10.27 | 32.66 | 0.3140 | -704.3 | -623.8 | |
| -45 | -45 | -45 | -45 | 17.84 | 27.78 | -10.25 | 34.56 | 0.2999 | 999999 | 999999 | |
| -45 | -45 | -45 | -45 | 18.13 | 27.51 | -10.52 | 34.69 | 0.3063 | 999999 | 999999 | |
| -45 | -45 | -45 | -45 | 17.84 | 27.49 | -10.55 | 35.32 | 0.3027 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | 16.60 | 26.00 | -12.03 | 41.58 | 0.3023 | -733.0 | -653.9 | |
| 0 | 3 | 0 | 2 | 15.57 | 24.80 | -13.23 | 46.69 | 0.3044 | -867.0 | -690.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
