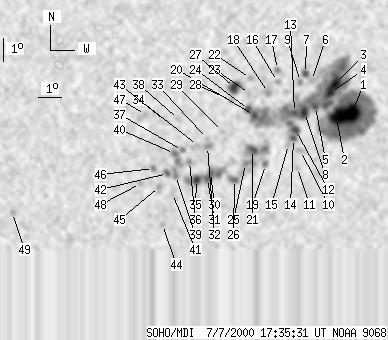

SOHO MDI 2000-07-07 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135 | 1151 | 74 | 627 | -18.31 | 49.33 | 12.18 | 208.16 | 0.4274 | -812.5 | -312.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 772 | 29 | 423 | -17.95 | 51.88 | 14.73 | 213.43 | 0.4409 | -1923.3 | -648.1 | |
| -1 | -1 | -1 | -1 | -18.11 | 51.25 | 14.10 | 212.09 | 0.4376 | 999999 | 999999 | |
| 9 | -1 | 5 | -1 | -16.66 | 51.09 | 13.94 | 213.73 | 0.4174 | -1768.2 | 999999 | |
| 8 | -1 | 4 | -1 | -17.04 | 50.91 | 13.75 | 212.86 | 0.4207 | -1819.9 | 999999 | |
| 3 | -1 | 2 | -1 | -17.62 | 50.31 | 13.16 | 210.96 | 0.4235 | -1536.0 | 999999 | |
| 0 | 7 | 0 | 4 | -16.52 | 50.06 | 12.91 | 211.94 | 0.4066 | -263.0 | -328.6 | |
| 4 | 11 | 2 | 6 | -16.22 | 49.79 | 12.64 | 211.80 | 0.4003 | -1069.9 | -732.3 | |
| 7 | -1 | 4 | -1 | -17.87 | 49.86 | 12.71 | 209.79 | 0.4232 | -1535.7 | 999999 | |
| 0 | 5 | 0 | 2 | -16.55 | 49.60 | 12.45 | 210.96 | 0.4032 | -499.0 | -411.3 | |
| 0 | 6 | 0 | 3 | -19.50 | 49.81 | 12.66 | 207.79 | 0.4450 | -719.0 | -587.1 | |
| 0 | 4 | 0 | 2 | -20.23 | 49.74 | 12.59 | 206.86 | 0.4545 | -852.0 | -587.1 | |
| 5 | -1 | 3 | -1 | -18.59 | 49.53 | 12.38 | 208.29 | 0.4305 | -1158.2 | 999999 | |
| 1 | -1 | 1 | -1 | -17.86 | 49.43 | 12.28 | 208.97 | 0.4198 | -1510.2 | 999999 | |
| 2 | -1 | 1 | -1 | -18.98 | 49.47 | 12.32 | 207.74 | 0.4353 | -1001.2 | 999999 | |
| 0 | 4 | 0 | 2 | -19.23 | 49.28 | 12.12 | 207.08 | 0.4374 | -789.0 | -607.6 | |
| 0 | 4 | 0 | 2 | -16.54 | 48.63 | 11.47 | 208.98 | 0.3953 | 565.0 | 537.7 | |
| 0 | 5 | 0 | 3 | -16.03 | 48.59 | 11.44 | 209.58 | 0.3880 | 1019.0 | 782.1 | |
| 0 | 9 | 0 | 5 | -17.00 | 48.27 | 11.12 | 207.66 | 0.3990 | 894.0 | 825.1 | |
| 0 | 5 | 0 | 3 | -20.08 | 48.35 | 11.20 | 204.42 | 0.4430 | -719.0 | -623.3 | |
| 4 | -1 | 2 | -1 | -17.97 | 47.74 | 10.59 | 205.42 | 0.4090 | 900.4 | 999999 | |
| 6 | 44 | 3 | 24 | -19.43 | 47.75 | 10.60 | 203.90 | 0.4298 | -1195.8 | -802.6 | |
| 0 | 4 | 0 | 2 | -16.40 | 47.48 | 10.33 | 206.69 | 0.3847 | 815.0 | 727.8 | |
| 0 | 4 | 0 | 2 | -17.03 | 47.47 | 10.32 | 205.92 | 0.3937 | 676.0 | 562.4 | |
| 4 | -1 | 2 | -1 | -17.71 | 47.47 | 10.32 | 205.14 | 0.4034 | 1336.2 | 999999 | |
| 0 | 35 | 0 | 19 | -20.03 | 47.49 | 10.34 | 202.80 | 0.4368 | -945.0 | -254.1 | |
| 4 | 11 | 2 | 6 | -20.72 | 47.06 | 9.91 | 201.34 | 0.4442 | 739.1 | 564.2 | |
| 11 | 25 | 6 | 13 | -16.77 | 46.83 | 9.68 | 204.80 | 0.3855 | 1507.8 | 865.4 | |
| 0 | 4 | 0 | 2 | -17.32 | 46.73 | 9.58 | 203.97 | 0.3928 | 875.0 | 717.5 | |
| 0 | 4 | 0 | 2 | -18.64 | 46.42 | 9.27 | 201.95 | 0.4102 | 624.0 | 540.5 | |
| 2 | 60 | 1 | 33 | -20.40 | 46.01 | 8.86 | 199.52 | 0.4339 | 1347.0 | 888.9 | |
| 4 | -30 | 2 | -30 | -20.66 | 45.90 | 8.75 | 199.08 | 0.4371 | 1118.5 | 999999 | |
| 0 | 8 | 0 | 5 | -19.28 | 45.82 | 8.67 | 200.08 | 0.4162 | 1058.0 | 961.8 | |
| 0 | 3 | 0 | 1 | -18.93 | 45.80 | 8.65 | 200.35 | 0.4110 | 754.0 | 606.2 | |
| 0 | 9 | 0 | 5 | -19.23 | 45.40 | 8.25 | 199.21 | 0.4132 | 984.0 | 785.7 | |
| 5 | -30 | 3 | -30 | -20.70 | 45.43 | 8.28 | 198.11 | 0.4353 | 1214.0 | 999999 | |
| 0 | 7 | 0 | 4 | -19.92 | 45.09 | 7.94 | 198.01 | 0.4220 | 1339.0 | 970.2 | |
| 0 | 4 | 0 | 2 | -19.44 | 44.77 | 7.62 | 197.69 | 0.4132 | 1270.0 | 959.4 | |
| 0 | 6 | 0 | 3 | -18.11 | 44.54 | 7.39 | 198.26 | 0.3919 | 588.0 | 637.8 | |
| 0 | 8 | 0 | 4 | -20.52 | 44.53 | 7.37 | 196.37 | 0.4284 | 1149.0 | 1048.2 | |
| 0 | 12 | 0 | 6 | -19.56 | 44.44 | 7.29 | 196.87 | 0.4135 | 1506.0 | 1121.5 | |
| 0 | 14 | 0 | 8 | -21.30 | 44.44 | 7.28 | 195.65 | 0.4398 | 687.0 | 629.2 | |
| 3 | 8 | 2 | 4 | -20.43 | 44.18 | 7.03 | 195.70 | 0.4255 | 1106.6 | 900.5 | |
| 0 | 9 | 0 | 5 | -18.14 | 43.96 | 6.80 | 196.87 | 0.3896 | 916.0 | 826.9 | |
| 0 | 4 | 0 | 2 | -22.66 | 44.07 | 6.92 | 194.09 | 0.4588 | 722.0 | 572.3 | |
| 0 | 8 | 0 | 4 | -20.99 | 43.86 | 6.71 | 194.67 | 0.4328 | 1194.0 | 905.5 | |
| 0 | 5 | 0 | 3 | -20.21 | 43.58 | 6.42 | 194.55 | 0.4196 | 1421.0 | 979.3 | |
| 0 | 13 | 0 | 7 | -17.88 | 43.15 | 6.00 | 195.16 | 0.3820 | 1069.0 | 748.8 | |
| 0 | 5 | 0 | 3 | -20.85 | 43.05 | 5.90 | 193.03 | 0.4276 | 770.0 | 701.3 | |
| 0 | 5 | 0 | 3 | -22.10 | 37.62 | 0.47 | 180.99 | 0.4368 | 819.0 | 748.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
