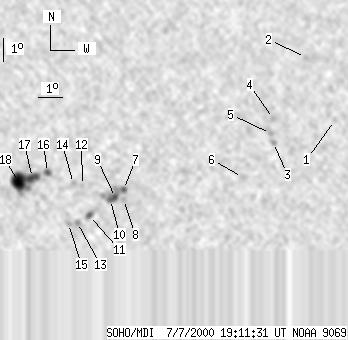

SOHO MDI 2000-07-07 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42 | 172 | 22 | 92 | -17.40 | 32.14 | -4.13 | 169.75 | 0.3725 | 785.5 | 36.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -14.88 | 42.01 | 5.74 | 196.92 | 0.3338 | -566.0 | -399.8 | |
| 0 | 3 | 0 | 2 | -12.26 | 40.77 | 4.50 | 195.61 | 0.2862 | -716.0 | -837.4 | |
| 0 | 4 | 0 | 2 | -15.79 | 39.52 | 3.25 | 189.30 | 0.3391 | -900.0 | -751.1 | |
| 0 | 6 | 0 | 3 | -14.78 | 39.50 | 3.24 | 189.78 | 0.3227 | -845.0 | -747.1 | |
| 0 | 4 | 0 | 2 | -15.41 | 39.39 | 3.12 | 189.12 | 0.3326 | -960.0 | -752.6 | |
| 0 | 7 | 0 | 4 | -17.26 | 38.26 | 1.99 | 185.30 | 0.3605 | -477.0 | -516.1 | |
| 2 | 38 | 1 | 20 | -17.77 | 33.31 | -2.95 | 172.36 | 0.3705 | -1057.1 | -790.0 | |
| 0 | 4 | 0 | 2 | -18.20 | 33.31 | -2.96 | 172.50 | 0.3774 | -859.0 | -702.8 | |
| 3 | -7 | 1 | -7 | -18.12 | 32.97 | -3.29 | 171.63 | 0.3768 | -1230.0 | 999999 | |
| 2 | -7 | 1 | -7 | -18.20 | 32.76 | -3.50 | 171.14 | 0.3787 | -981.0 | 999999 | |
| 3 | 8 | 2 | 4 | -18.89 | 31.87 | -4.40 | 169.29 | 0.3921 | -804.6 | -512.1 | |
| 0 | 2 | 0 | 1 | -17.61 | 31.61 | -4.66 | 167.96 | 0.3727 | 577.0 | 483.5 | |
| 0 | 5 | 0 | 3 | -19.19 | 31.36 | -4.91 | 168.24 | 0.3985 | -480.0 | -402.1 | |
| 0 | 4 | 0 | 2 | -17.53 | 31.24 | -5.03 | 166.98 | 0.3727 | -508.0 | -333.8 | |
| 0 | 5 | 0 | 3 | -19.24 | 30.98 | -5.29 | 167.39 | 0.4005 | -673.0 | -619.7 | |
| 3 | 8 | 2 | 4 | -17.07 | 30.17 | -6.10 | 163.98 | 0.3698 | 1048.0 | 848.1 | |
| 8 | 70 | 4 | 38 | -17.28 | 29.53 | -6.73 | 162.61 | 0.3761 | 1432.0 | 849.2 | |
| 21 | -17 | 11 | -17 | -17.46 | 28.94 | -7.33 | 161.34 | 0.3818 | 1576.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
