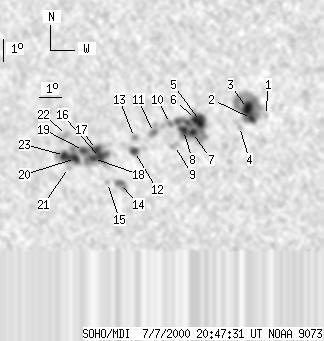

SOHO MDI 2000-07-07 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74 | 416 | 42 | 238 | -19.84 | 16.60 | -18.79 | 142.89 | 0.5009 | -125.0 | -34.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | -18.86 | 21.35 | -14.03 | 148.98 | 0.4472 | -558.0 | -510.0 | |
| 4 | 100 | 2 | 55 | -19.00 | 20.73 | -14.65 | 148.06 | 0.4540 | -1191.6 | -752.1 | |
| 11 | -2 | 6 | -2 | -18.57 | 20.60 | -14.79 | 147.30 | 0.4496 | -1670.3 | 999999 | |
| 0 | 3 | 0 | 2 | -19.35 | 20.18 | -15.21 | 147.55 | 0.4631 | -657.0 | -607.8 | |
| 10 | 104 | 5 | 58 | -19.17 | 18.50 | -16.89 | 144.57 | 0.4754 | -1672.1 | -768.7 | |
| 4 | -5 | 2 | -5 | -19.09 | 18.29 | -17.10 | 144.14 | 0.4763 | -1477.3 | 999999 | |
| 4 | -5 | 2 | -5 | -19.65 | 18.09 | -17.29 | 144.56 | 0.4848 | -1014.7 | 999999 | |
| 6 | -5 | 4 | -5 | -19.57 | 17.70 | -17.68 | 143.87 | 0.4873 | -841.8 | 999999 | |
| 0 | 7 | 0 | 4 | -20.23 | 17.23 | -18.16 | 144.00 | 0.4994 | 864.0 | 583.7 | |
| 0 | 10 | 0 | 6 | -19.28 | 17.16 | -18.22 | 142.68 | 0.4888 | -564.0 | -516.1 | |
| 0 | 14 | 0 | 8 | -19.69 | 16.36 | -19.03 | 142.04 | 0.5010 | -431.0 | -261.6 | |
| 5 | 13 | 3 | 7 | -20.53 | 15.40 | -19.99 | 141.79 | 0.5195 | 905.5 | 651.0 | |
| 0 | 7 | 0 | 4 | -19.92 | 15.48 | -19.90 | 141.11 | 0.5119 | -662.0 | -355.5 | |
| 0 | 15 | 0 | 9 | -21.95 | 14.56 | -20.83 | 142.43 | 0.5430 | 769.0 | 787.8 | |
| 0 | 3 | 0 | 2 | -21.92 | 13.97 | -21.42 | 141.64 | 0.5480 | -669.0 | -406.3 | |
| 5 | 125 | 3 | 74 | -20.83 | 13.82 | -21.57 | 140.09 | 0.5376 | 1220.2 | 911.6 | |
| 5 | -16 | 3 | -16 | -20.48 | 13.69 | -21.70 | 139.48 | 0.5352 | 1494.3 | 999999 | |
| 4 | -16 | 2 | -16 | -20.88 | 13.49 | -21.90 | 139.74 | 0.5413 | 1108.8 | 999999 | |
| 4 | -16 | 3 | -16 | -20.54 | 13.08 | -22.30 | 138.80 | 0.5416 | 1302.8 | 999999 | |
| 7 | -16 | 4 | -16 | -20.90 | 12.66 | -22.73 | 138.74 | 0.5494 | 925.4 | 999999 | |
| 0 | 4 | 0 | 2 | -21.30 | 12.27 | -23.12 | 138.79 | 0.5573 | 493.0 | 400.4 | |
| 0 | 9 | 0 | 6 | -19.91 | 12.40 | -22.98 | 137.13 | 0.5418 | 891.0 | 790.3 | |
| 5 | -16 | 3 | -16 | -20.78 | 12.17 | -23.21 | 138.01 | 0.5529 | 1011.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
