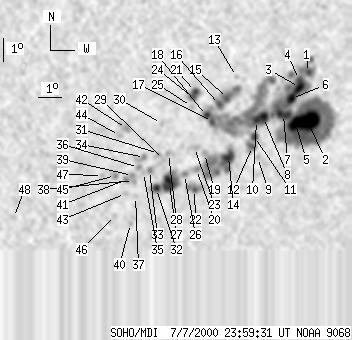

SOHO MDI 2000-07-07 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168 | 1235 | 93 | 688 | -18.21 | 49.52 | 15.90 | 214.99 | 0.4566 | -756.8 | -291.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 826 | 2 | 460 | -15.95 | 51.54 | 17.92 | 221.60 | 0.4475 | -1290.1 | -564.8 | |
| 51 | -1 | 29 | -1 | -17.98 | 51.70 | 18.08 | 218.85 | 0.4725 | -1838.4 | 999999 | |
| 9 | -1 | 5 | -1 | -16.57 | 51.21 | 17.59 | 220.13 | 0.4513 | -1537.9 | 999999 | |
| 3 | -1 | 2 | -1 | -16.24 | 51.18 | 17.56 | 220.59 | 0.4471 | -1676.5 | 999999 | |
| -2 | -1 | -2 | -1 | -18.10 | 51.19 | 17.57 | 217.90 | 0.4690 | 999999 | 999999 | |
| 8 | -1 | 4 | -1 | -17.03 | 50.91 | 17.29 | 218.97 | 0.4537 | -1769.8 | 999999 | |
| 13 | -1 | 7 | -1 | -17.71 | 50.63 | 17.01 | 217.56 | 0.4589 | -1678.8 | 999999 | |
| 9 | -1 | 5 | -1 | -17.82 | 49.77 | 16.15 | 216.01 | 0.4523 | -1488.2 | 999999 | |
| 0 | 3 | 0 | 2 | -19.53 | 49.68 | 16.06 | 213.62 | 0.4727 | -746.0 | -621.5 | |
| 5 | -1 | 3 | -1 | -17.94 | 49.48 | 15.86 | 215.35 | 0.4512 | -1543.7 | 999999 | |
| 5 | 28 | 3 | 16 | -18.62 | 49.45 | 15.83 | 214.41 | 0.4595 | -1075.8 | -824.2 | |
| 2 | -11 | 1 | -11 | -19.05 | 49.41 | 15.79 | 213.78 | 0.4644 | -931.6 | 999999 | |
| 0 | 3 | 0 | 2 | -16.06 | 48.46 | 14.84 | 216.22 | 0.4183 | 851.0 | 697.9 | |
| 12 | 100 | 7 | 56 | -19.46 | 48.40 | 14.78 | 211.58 | 0.4613 | -1249.4 | -742.5 | |
| 4 | 48 | 2 | 26 | -16.98 | 48.15 | 14.53 | 214.33 | 0.4271 | 1202.9 | 963.5 | |
| 4 | -15 | 2 | -15 | -17.23 | 47.82 | 14.20 | 213.40 | 0.4275 | 1389.2 | 999999 | |
| 2 | -1 | 1 | -1 | -17.95 | 47.58 | 13.96 | 212.01 | 0.4348 | 1054.2 | 999999 | |
| 4 | -1 | 2 | -1 | -17.69 | 47.30 | 13.68 | 211.84 | 0.4291 | 1358.6 | 999999 | |
| 0 | 7 | 0 | 4 | -19.31 | 47.35 | 13.73 | 209.92 | 0.4510 | -448.0 | -573.4 | |
| 0 | 7 | 0 | 4 | -20.00 | 47.06 | 13.44 | 208.62 | 0.4579 | 234.0 | 220.9 | |
| 4 | 19 | 2 | 10 | -16.66 | 46.76 | 13.14 | 212.16 | 0.4109 | 1499.1 | 1040.8 | |
| 2 | 17 | 1 | 10 | -20.87 | 47.06 | 13.44 | 207.66 | 0.4695 | 852.2 | 515.9 | |
| 0 | 6 | 0 | 3 | -19.05 | 46.90 | 13.28 | 209.41 | 0.4439 | 124.0 | 128.3 | |
| 3 | -21 | 2 | -21 | -16.91 | 46.65 | 13.03 | 211.61 | 0.4133 | 1472.5 | 999999 | |
| 0 | 3 | 0 | 2 | -17.30 | 46.63 | 13.01 | 211.08 | 0.4183 | 809.0 | 697.8 | |
| 0 | 6 | 0 | 3 | -20.21 | 46.56 | 12.94 | 207.50 | 0.4571 | 584.0 | 234.8 | |
| 19 | 69 | 10 | 38 | -20.59 | 45.95 | 12.32 | 205.98 | 0.4580 | 1288.1 | 773.9 | |
| 0 | 8 | 0 | 4 | -19.29 | 45.80 | 12.18 | 207.09 | 0.4390 | 1158.0 | 795.5 | |
| 0 | 7 | 0 | 4 | -19.55 | 45.60 | 11.98 | 206.44 | 0.4412 | 908.0 | 843.0 | |
| 0 | 3 | 0 | 2 | -18.00 | 45.41 | 11.79 | 207.80 | 0.4183 | 984.0 | 807.3 | |
| 0 | 3 | 0 | 2 | -19.29 | 45.37 | 11.75 | 206.28 | 0.4359 | 1236.0 | 1078.6 | |
| 5 | -27 | 3 | -27 | -20.80 | 45.40 | 11.78 | 204.78 | 0.4573 | 1234.7 | 999999 | |
| 0 | 6 | 0 | 3 | -20.01 | 45.04 | 11.42 | 204.88 | 0.4439 | 1226.0 | 950.5 | |
| 0 | 10 | 0 | 5 | -19.45 | 44.78 | 11.16 | 204.97 | 0.4342 | 913.0 | 789.8 | |
| 0 | 3 | 0 | 2 | -20.10 | 44.79 | 11.16 | 204.32 | 0.4434 | 922.0 | 851.1 | |
| 0 | 4 | 0 | 2 | -19.88 | 44.55 | 10.93 | 204.09 | 0.4388 | 894.0 | 848.2 | |
| 0 | 3 | 0 | 2 | -21.14 | 44.52 | 10.90 | 202.82 | 0.4565 | 874.0 | 860.5 | |
| 0 | 2 | 0 | 1 | -20.44 | 44.38 | 10.76 | 203.21 | 0.4457 | 1202.0 | 1079.9 | |
| 0 | 5 | 0 | 3 | -20.22 | 44.32 | 10.70 | 203.31 | 0.4422 | 1051.0 | 928.7 | |
| 0 | 3 | 0 | 2 | -22.32 | 44.39 | 10.77 | 201.55 | 0.4725 | 684.0 | 617.3 | |
| 0 | 4 | 0 | 2 | -20.39 | 44.08 | 10.45 | 202.67 | 0.4432 | 788.0 | 720.8 | |
| 0 | 7 | 0 | 4 | -18.19 | 43.93 | 10.31 | 204.57 | 0.4107 | 1100.0 | 998.8 | |
| 0 | 4 | 0 | 2 | -21.00 | 44.08 | 10.45 | 202.11 | 0.4519 | 925.0 | 774.4 | |
| 0 | 4 | 0 | 2 | -18.49 | 43.65 | 10.03 | 203.68 | 0.4132 | 767.0 | 705.1 | |
| 0 | 7 | 0 | 4 | -20.21 | 43.59 | 9.97 | 201.89 | 0.4377 | 1092.0 | 895.0 | |
| 0 | 3 | 0 | 2 | -21.96 | 43.67 | 10.05 | 200.53 | 0.4633 | 92.0 | 307.8 | |
| 0 | 3 | 0 | 2 | -20.21 | 43.03 | 9.41 | 200.78 | 0.4344 | 627.0 | 576.9 | |
| 0 | 4 | 0 | 2 | -22.01 | 39.31 | 5.69 | 191.98 | 0.4450 | 842.0 | 698.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
