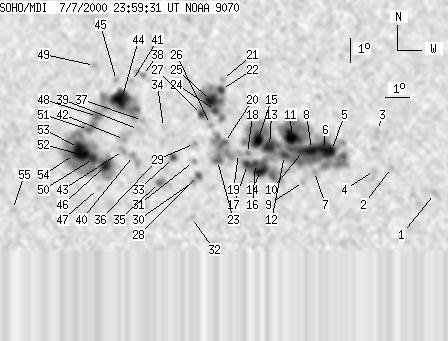

SOHO MDI 2000-07-07 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 230 | 1402 | 118 | 720 | 18.24 | 33.06 | -0.56 | 2.14 | 0.2513 | 160.2 | 204.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 16.15 | 42.15 | 8.53 | 326.62 | 0.2600 | -526.0 | -515.8 | |
| 0 | 4 | 0 | 2 | 17.22 | 40.40 | 6.78 | 334.30 | 0.2610 | 781.0 | 668.8 | |
| 0 | 9 | 0 | 5 | 18.73 | 39.87 | 6.24 | 338.36 | 0.2806 | 772.0 | 726.4 | |
| 0 | 15 | 0 | 8 | 17.10 | 39.68 | 6.06 | 336.49 | 0.2542 | 907.0 | 735.7 | |
| 8 | 630 | 4 | 322 | 17.92 | 37.91 | 4.29 | 343.84 | 0.2571 | 1481.2 | 743.0 | |
| 11 | -5 | 6 | -5 | 17.93 | 37.58 | 3.96 | 345.04 | 0.2556 | 1895.6 | 999999 | |
| 0 | 5 | 0 | 3 | 17.07 | 37.19 | 3.57 | 345.58 | 0.2399 | 1043.0 | 547.4 | |
| 16 | -5 | 8 | -5 | 17.97 | 37.08 | 3.46 | 346.89 | 0.2543 | 2066.2 | 999999 | |
| 0 | 10 | 0 | 5 | 16.67 | 36.72 | 3.10 | 346.98 | 0.2314 | 830.0 | 550.2 | |
| -8 | -5 | -8 | -5 | 17.93 | 36.75 | 3.13 | 348.08 | 0.2524 | 999999 | 999999 | |
| 18 | -5 | 9 | -5 | 18.50 | 36.26 | 2.63 | 350.32 | 0.2604 | 1805.1 | 999999 | |
| 5 | -5 | 3 | -5 | 17.73 | 35.95 | 2.33 | 350.92 | 0.2466 | 912.0 | 999999 | |
| 14 | -5 | 7 | -5 | 18.10 | 35.33 | 1.71 | 353.49 | 0.2514 | 1882.6 | 999999 | |
| 13 | -5 | 7 | -5 | 17.12 | 34.95 | 1.33 | 354.54 | 0.2341 | -903.4 | 999999 | |
| 12 | -5 | 6 | -5 | 18.34 | 34.83 | 1.21 | 355.45 | 0.2547 | 1728.8 | 999999 | |
| 4 | -5 | 2 | -5 | 17.40 | 34.74 | 1.12 | 355.48 | 0.2387 | 1478.6 | 999999 | |
| 6 | -5 | 3 | -5 | 17.36 | 34.41 | 0.79 | 356.80 | 0.2376 | 1571.1 | 999999 | |
| 0 | 6 | 0 | 3 | 17.81 | 34.41 | 0.79 | 356.90 | 0.2452 | 1267.0 | 1058.9 | |
| 0 | 5 | 0 | 3 | 17.81 | 34.04 | 0.42 | 358.36 | 0.2450 | 866.0 | 1003.2 | |
| 3 | 68 | 1 | 35 | 18.26 | 33.46 | -0.16 | 0.62 | 0.2525 | 1070.9 | 536.0 | |
| 0 | 5 | 0 | 3 | 20.86 | 33.37 | -0.25 | 0.79 | 0.2963 | 613.0 | 496.7 | |
| 4 | 128 | 2 | 66 | 20.44 | 33.33 | -0.29 | 0.95 | 0.2893 | 984.6 | 661.6 | |
| 4 | -20 | 2 | -20 | 17.53 | 33.17 | -0.45 | 1.81 | 0.2401 | -662.1 | 999999 | |
| 3 | -22 | 2 | -22 | 19.58 | 33.08 | -0.54 | 1.87 | 0.2749 | 1509.8 | 999999 | |
| 13 | -22 | 7 | -22 | 19.99 | 32.87 | -0.75 | 2.53 | 0.2819 | 1589.2 | 999999 | |
| 0 | 5 | 0 | 2 | 19.00 | 32.87 | -0.75 | 2.69 | 0.2653 | -745.0 | -632.5 | |
| 4 | -22 | 2 | -22 | 19.41 | 32.49 | -1.13 | 3.93 | 0.2726 | -611.8 | 999999 | |
| 4 | 8 | 2 | 4 | 16.91 | 32.38 | -1.24 | 5.17 | 0.2305 | -1196.6 | -743.0 | |
| 0 | 5 | 0 | 3 | 18.22 | 32.21 | -1.41 | 5.34 | 0.2529 | -848.0 | -627.0 | |
| 0 | 5 | 0 | 3 | 16.67 | 32.18 | -1.44 | 6.13 | 0.2267 | -770.0 | -641.5 | |
| 0 | 4 | 0 | 2 | 17.48 | 32.17 | -1.45 | 5.78 | 0.2405 | 577.0 | 446.1 | |
| 0 | 5 | 0 | 3 | 15.21 | 32.11 | -1.51 | 7.28 | 0.2021 | -916.0 | -681.2 | |
| 4 | 11 | 2 | 6 | 17.65 | 31.34 | -2.28 | 8.95 | 0.2451 | 850.7 | 667.0 | |
| 0 | 4 | 0 | 2 | 18.87 | 30.90 | -2.72 | 9.72 | 0.2668 | 502.0 | 422.9 | |
| 2 | 12 | 1 | 6 | 16.63 | 30.77 | -2.85 | 12.01 | 0.2298 | -1494.6 | -1076.4 | |
| 0 | 10 | 0 | 5 | 17.48 | 30.59 | -3.03 | 11.94 | 0.2446 | 1048.0 | 525.3 | |
| 0 | 4 | 0 | 2 | 19.16 | 30.02 | -3.60 | 12.55 | 0.2743 | -679.0 | -499.0 | |
| 0 | 9 | 0 | 5 | 21.01 | 29.97 | -3.65 | 11.28 | 0.3049 | -693.0 | -586.0 | |
| 0 | 2 | 0 | 1 | 18.79 | 29.86 | -3.76 | 13.42 | 0.2689 | 637.0 | 562.6 | |
| 0 | 18 | 0 | 9 | 17.72 | 29.67 | -3.95 | 15.14 | 0.2522 | -336.0 | 180.1 | |
| 0 | 5 | 0 | 2 | 20.76 | 29.51 | -4.11 | 12.85 | 0.3024 | -902.0 | -716.3 | |
| 0 | 22 | 0 | 11 | 18.37 | 29.28 | -4.34 | 15.82 | 0.2646 | -1243.0 | -807.8 | |
| 0 | 9 | 0 | 5 | 17.92 | 29.25 | -4.37 | 16.43 | 0.2575 | -1271.0 | -928.3 | |
| 28 | 105 | 15 | 54 | 20.02 | 29.11 | -4.51 | 14.72 | 0.2919 | -1663.4 | -736.2 | |
| 0 | 4 | 0 | 2 | 20.80 | 28.88 | -4.75 | 14.73 | 0.3056 | 497.0 | 414.6 | |
| 12 | 222 | 6 | 114 | 17.31 | 28.52 | -5.10 | 19.83 | 0.2515 | -1763.0 | -889.0 | |
| 0 | 3 | 0 | 1 | 16.37 | 28.25 | -5.37 | 22.23 | 0.2383 | -359.0 | -297.9 | |
| 4 | 30 | 2 | 16 | 19.31 | 28.12 | -5.50 | 18.56 | 0.2854 | -676.4 | -611.5 | |
| 0 | 5 | 0 | 2 | 21.42 | 27.92 | -5.70 | 16.90 | 0.3198 | 659.0 | 597.0 | |
| 6 | -46 | 3 | -46 | 17.59 | 28.01 | -5.61 | 21.20 | 0.2589 | -1838.2 | 999999 | |
| 2 | -48 | 1 | -48 | 18.78 | 27.76 | -5.86 | 20.37 | 0.2790 | -846.3 | 999999 | |
| 30 | -46 | 15 | -46 | 17.71 | 27.59 | -6.03 | 22.44 | 0.2634 | -1823.2 | 999999 | |
| -52 | -46 | -52 | -46 | 18.04 | 27.37 | -6.25 | 22.67 | 0.2699 | 999999 | 999999 | |
| -52 | -46 | -52 | -46 | 17.75 | 27.21 | -6.41 | 23.63 | 0.2665 | 999999 | 999999 | |
| 0 | 5 | 0 | 2 | 15.49 | 24.71 | -8.91 | 36.03 | 0.2547 | -703.0 | -747.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
