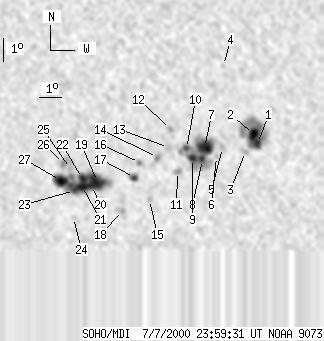

SOHO MDI 2000-07-07 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109 | 456 | 60 | 256 | -19.76 | 16.67 | -16.95 | 145.63 | 0.4839 | 122.2 | 2.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-07 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 102 | 4 | 56 | -18.91 | 20.88 | -12.74 | 151.42 | 0.4380 | -1308.0 | -724.3 | |
| 10 | -1 | 5 | -1 | -18.53 | 20.74 | -12.89 | 150.70 | 0.4339 | -1711.0 | 999999 | |
| 0 | 6 | 0 | 3 | -19.26 | 20.33 | -13.29 | 150.82 | 0.4469 | -751.0 | -528.0 | |
| 0 | 3 | 0 | 2 | -15.62 | 19.67 | -13.95 | 144.80 | 0.4045 | 689.0 | 501.9 | |
| 0 | 4 | 0 | 2 | -19.11 | 19.35 | -14.27 | 148.89 | 0.4525 | -1020.0 | -820.4 | |
| 0 | 3 | 0 | 2 | -19.50 | 19.06 | -14.56 | 148.84 | 0.4600 | -467.0 | -448.1 | |
| 19 | 121 | 10 | 67 | -19.12 | 18.57 | -15.05 | 147.55 | 0.4591 | -1566.3 | -671.2 | |
| 4 | -7 | 2 | -7 | -19.64 | 18.43 | -15.19 | 147.95 | 0.4669 | -1003.1 | 999999 | |
| 5 | -7 | 3 | -7 | -19.61 | 18.00 | -15.62 | 147.19 | 0.4700 | -944.1 | 999999 | |
| 3 | -7 | 1 | -7 | -19.18 | 17.78 | -15.84 | 146.30 | 0.4665 | -1063.3 | 999999 | |
| 0 | 7 | 0 | 4 | -20.18 | 17.28 | -16.34 | 146.73 | 0.4832 | 788.0 | 558.1 | |
| 0 | 4 | 0 | 2 | -18.38 | 17.17 | -16.46 | 144.25 | 0.4620 | 561.0 | 362.6 | |
| 0 | 9 | 0 | 5 | -19.15 | 17.00 | -16.62 | 145.00 | 0.4730 | -507.0 | -461.6 | |
| 0 | 6 | 0 | 3 | -19.59 | 16.47 | -17.15 | 144.73 | 0.4830 | -543.0 | -386.2 | |
| 0 | 6 | 0 | 3 | -21.43 | 15.90 | -17.72 | 146.11 | 0.5102 | 658.0 | 465.0 | |
| 0 | 5 | 0 | 3 | -19.82 | 15.65 | -17.97 | 143.77 | 0.4932 | -842.0 | -572.7 | |
| 4 | 10 | 2 | 6 | -20.48 | 15.35 | -18.27 | 144.15 | 0.5036 | 866.0 | 560.3 | |
| 0 | 7 | 0 | 4 | -21.94 | 14.62 | -19.00 | 144.88 | 0.5271 | 956.0 | 732.9 | |
| 20 | 143 | 12 | 83 | -20.69 | 13.66 | -19.96 | 142.04 | 0.5213 | 1549.1 | 903.8 | |
| 4 | -19 | 2 | -19 | -20.87 | 13.37 | -20.26 | 141.87 | 0.5260 | 1092.4 | 999999 | |
| 9 | -19 | 5 | -19 | -20.93 | 12.95 | -20.67 | 141.39 | 0.5304 | 955.0 | 999999 | |
| 6 | -19 | 3 | -19 | -20.58 | 13.00 | -20.62 | 141.01 | 0.5261 | 1499.9 | 999999 | |
| 3 | -19 | 2 | -19 | -21.11 | 12.56 | -21.06 | 141.11 | 0.5361 | 519.5 | 999999 | |
| 0 | 3 | 0 | 2 | -22.30 | 12.33 | -21.29 | 142.28 | 0.5512 | 659.0 | 503.1 | |
| 0 | 8 | 0 | 4 | -20.16 | 12.52 | -21.10 | 139.83 | 0.5261 | 897.0 | 891.9 | |
| 0 | 9 | 0 | 5 | -19.95 | 12.23 | -21.39 | 139.18 | 0.5266 | 996.0 | 860.4 | |
| 15 | -19 | 9 | -19 | -20.69 | 11.98 | -21.64 | 139.84 | 0.5369 | 1087.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
