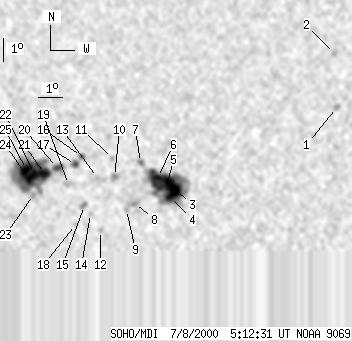

SOHO MDI 2000-07-08 05:12:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90 | 468 | 47 | 249 | -17.51 | 31.53 | 0.79 | 182.03 | 0.3671 | -83.5 | 36.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 05:12:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | -14.54 | 41.03 | 10.29 | 208.95 | 0.3586 | -899.0 | -743.4 | |
| 0 | 5 | 0 | 2 | -12.30 | 40.85 | 10.11 | 211.93 | 0.3256 | -766.0 | -769.2 | |
| 14 | 184 | 8 | 98 | -17.99 | 34.45 | 3.71 | 189.45 | 0.3765 | -1697.0 | -777.5 | |
| 7 | -3 | 4 | -3 | -18.29 | 34.21 | 3.47 | 188.72 | 0.3807 | -1026.2 | 999999 | |
| 17 | -3 | 9 | -3 | -17.65 | 34.11 | 3.37 | 188.75 | 0.3702 | -1951.5 | 999999 | |
| 6 | -3 | 3 | -3 | -17.43 | 33.69 | 2.95 | 187.76 | 0.3657 | -1785.2 | 999999 | |
| 0 | 6 | 0 | 3 | -16.79 | 32.98 | 2.24 | 186.09 | 0.3540 | -1237.0 | -858.1 | |
| 0 | 8 | 0 | 4 | -18.54 | 32.75 | 2.01 | 185.02 | 0.3819 | -504.0 | -260.7 | |
| 0 | 3 | 0 | 2 | -18.79 | 32.42 | 1.68 | 184.14 | 0.3856 | -430.0 | -191.2 | |
| 0 | 8 | 0 | 4 | -17.38 | 31.91 | 1.17 | 183.09 | 0.3622 | 1065.0 | 712.7 | |
| 0 | 3 | 0 | 2 | -16.62 | 31.82 | 1.08 | 182.97 | 0.3497 | 385.0 | 385.6 | |
| 0 | 4 | 0 | 2 | -19.70 | 31.34 | 0.59 | 181.41 | 0.3993 | -595.0 | -426.3 | |
| 0 | 11 | 0 | 6 | -17.43 | 31.20 | 0.46 | 181.22 | 0.3625 | -601.0 | -316.5 | |
| 0 | 4 | 0 | 2 | -18.96 | 30.91 | 0.17 | 180.42 | 0.3874 | 282.0 | 282.6 | |
| 0 | 7 | 0 | 4 | -18.62 | 30.66 | -0.08 | 179.80 | 0.3818 | 1063.0 | 756.8 | |
| 0 | 5 | 0 | 3 | -16.54 | 30.54 | -0.20 | 179.44 | 0.3478 | -1033.0 | -663.9 | |
| 3 | 8 | 2 | 4 | -16.88 | 30.29 | -0.45 | 178.77 | 0.3535 | 809.9 | 797.0 | |
| 0 | 3 | 0 | 2 | -19.44 | 30.29 | -0.46 | 178.90 | 0.3951 | -655.0 | -440.0 | |
| 0 | 9 | 0 | 5 | -17.72 | 30.00 | -0.74 | 178.06 | 0.3675 | 269.0 | 304.9 | |
| 5 | 190 | 2 | 101 | -17.00 | 29.55 | -1.20 | 176.77 | 0.3560 | 1115.9 | 847.0 | |
| 12 | -20 | 6 | -20 | -17.26 | 29.01 | -1.74 | 175.38 | 0.3608 | 1563.3 | 999999 | |
| 6 | -20 | 3 | -20 | -17.26 | 28.59 | -2.15 | 174.28 | 0.3614 | 1943.6 | 999999 | |
| 0 | 4 | 0 | 2 | -18.15 | 28.54 | -2.20 | 174.40 | 0.3760 | 693.0 | 555.0 | |
| 8 | -20 | 4 | -20 | -17.51 | 28.38 | -2.36 | 173.81 | 0.3659 | 1386.2 | 999999 | |
| 12 | -20 | 6 | -20 | -17.09 | 28.26 | -2.48 | 173.36 | 0.3593 | 2068.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
