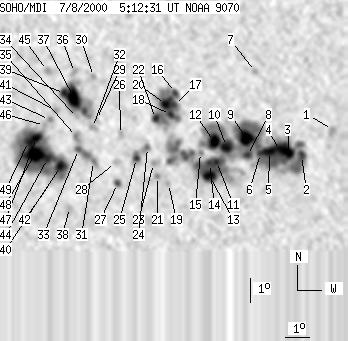

SOHO MDI 2000-07-08 05:12:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 236 | 1460 | 120 | 748 | 18.29 | 32.95 | 2.21 | 351.70 | 0.2541 | 73.3 | 177.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 05:12:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 10 | 0 | 5 | 18.77 | 39.86 | 9.12 | 330.05 | 0.3019 | 921.0 | 813.3 | |
| 5 | 747 | 2 | 383 | 17.72 | 38.50 | 7.76 | 332.06 | 0.2757 | 1307.8 | 681.3 | |
| 34 | -2 | 17 | -2 | 17.77 | 38.00 | 7.26 | 333.67 | 0.2725 | 1781.3 | 999999 | |
| -3 | -2 | -3 | -2 | 17.93 | 37.59 | 6.85 | 335.24 | 0.2720 | 999999 | 999999 | |
| -3 | -2 | -3 | -2 | 17.90 | 37.17 | 6.42 | 336.53 | 0.2685 | 999999 | 999999 | |
| 2 | -2 | 1 | -2 | 17.82 | 36.79 | 6.05 | 337.65 | 0.2648 | 1771.6 | 999999 | |
| 0 | 4 | 0 | 2 | 21.19 | 36.70 | 5.96 | 342.14 | 0.3171 | 762.0 | 637.3 | |
| 4 | -2 | 2 | -2 | 17.74 | 36.24 | 5.50 | 339.37 | 0.2602 | 1370.6 | 999999 | |
| 18 | -2 | 9 | -2 | 18.47 | 36.22 | 5.48 | 340.43 | 0.2717 | 1760.3 | 999999 | |
| 14 | -2 | 7 | -2 | 18.11 | 35.38 | 4.63 | 342.84 | 0.2614 | 1792.1 | 999999 | |
| 4 | -2 | 2 | -2 | 17.50 | 34.94 | 4.20 | 343.66 | 0.2494 | 1731.5 | 999999 | |
| 14 | -2 | 7 | -2 | 18.32 | 34.88 | 4.14 | 344.80 | 0.2624 | 1734.2 | 999999 | |
| 14 | -2 | 7 | -2 | 16.93 | 34.64 | 3.90 | 344.12 | 0.2387 | -1099.9 | 999999 | |
| 3 | -2 | 2 | -2 | 17.42 | 34.65 | 3.91 | 344.65 | 0.2468 | 1520.3 | 999999 | |
| 0 | 5 | 0 | 3 | 17.87 | 34.28 | 3.54 | 346.48 | 0.2526 | 1099.0 | 898.9 | |
| 3 | 132 | 2 | 68 | 20.34 | 33.28 | 2.54 | 351.74 | 0.2903 | 841.1 | 618.9 | |
| 3 | -16 | 2 | -16 | 19.84 | 33.23 | 2.49 | 351.63 | 0.2819 | 1305.4 | 999999 | |
| 3 | -16 | 2 | -16 | 19.43 | 33.06 | 2.31 | 351.99 | 0.2746 | 1669.2 | 999999 | |
| 0 | 4 | 0 | 2 | 16.61 | 32.94 | 2.19 | 350.66 | 0.2271 | -587.0 | -717.3 | |
| 7 | -16 | 3 | -16 | 19.84 | 32.85 | 2.11 | 352.89 | 0.2811 | 1641.1 | 999999 | |
| 0 | 4 | 0 | 2 | 16.90 | 32.49 | 1.74 | 352.72 | 0.2308 | -1081.0 | -858.5 | |
| 5 | -16 | 3 | -16 | 19.27 | 32.42 | 1.68 | 354.10 | 0.2706 | -1005.6 | 999999 | |
| 0 | 8 | 0 | 4 | 17.43 | 32.32 | 1.58 | 353.66 | 0.2394 | 322.0 | 296.5 | |
| 0 | 11 | 0 | 5 | 18.08 | 32.08 | 1.34 | 354.89 | 0.2501 | -903.0 | -687.0 | |
| 4 | 13 | 2 | 7 | 17.63 | 31.62 | 0.88 | 356.53 | 0.2419 | 764.0 | 505.5 | |
| 0 | 6 | 0 | 3 | 18.61 | 30.96 | 0.21 | 359.21 | 0.2581 | 1033.0 | 722.1 | |
| 3 | 8 | 1 | 4 | 16.61 | 30.83 | 0.09 | 359.63 | 0.2241 | -1307.6 | -978.7 | |
| 0 | 7 | 0 | 4 | 17.47 | 30.75 | 0.00 | 359.98 | 0.2387 | 629.0 | 467.5 | |
| 0 | 5 | 0 | 2 | 19.23 | 29.95 | -0.79 | 2.80 | 0.2688 | -488.0 | -415.4 | |
| 0 | 4 | 0 | 2 | 21.00 | 29.81 | -0.93 | 2.92 | 0.2987 | -464.0 | -516.5 | |
| 0 | 8 | 0 | 4 | 17.51 | 29.83 | -0.91 | 3.63 | 0.2398 | 970.0 | 520.4 | |
| 0 | 5 | 0 | 2 | 18.90 | 29.78 | -0.96 | 3.46 | 0.2634 | 517.0 | 384.0 | |
| 2 | 17 | 1 | 8 | 18.00 | 29.21 | -1.54 | 5.90 | 0.2490 | -1526.0 | -713.1 | |
| 0 | 3 | 0 | 2 | 19.31 | 29.15 | -1.59 | 5.57 | 0.2712 | -828.0 | -768.1 | |
| 0 | 10 | 0 | 5 | 18.53 | 29.12 | -1.62 | 6.00 | 0.2581 | -1080.0 | -890.6 | |
| 0 | 6 | 0 | 3 | 21.17 | 29.01 | -1.74 | 5.38 | 0.3025 | 748.0 | 526.3 | |
| 26 | 119 | 13 | 62 | 20.17 | 28.98 | -1.77 | 5.84 | 0.2859 | -1633.5 | -608.1 | |
| 0 | 10 | 0 | 5 | 15.64 | 28.86 | -1.89 | 8.73 | 0.2099 | -723.0 | -692.8 | |
| 6 | -37 | 3 | -37 | 20.30 | 28.59 | -2.15 | 7.03 | 0.2887 | 608.4 | 999999 | |
| 10 | 288 | 5 | 147 | 17.30 | 28.47 | -2.28 | 9.17 | 0.2389 | -1804.2 | -842.3 | |
| 0 | 5 | 0 | 2 | 19.60 | 28.22 | -2.52 | 8.60 | 0.2779 | -609.0 | -371.8 | |
| 0 | 3 | 0 | 2 | 16.65 | 28.06 | -2.68 | 11.33 | 0.2292 | -564.0 | -410.0 | |
| 0 | 4 | 0 | 2 | 19.22 | 27.98 | -2.76 | 9.67 | 0.2724 | -865.0 | -756.0 | |
| 7 | -40 | 4 | -40 | 17.63 | 27.92 | -2.82 | 11.04 | 0.2460 | -1811.8 | 999999 | |
| 0 | 7 | 0 | 4 | 21.25 | 27.86 | -2.89 | 8.85 | 0.3062 | 725.0 | 705.4 | |
| 0 | 7 | 0 | 4 | 18.98 | 27.77 | -2.97 | 10.54 | 0.2689 | -614.0 | -594.9 | |
| 8 | -40 | 4 | -40 | 18.48 | 27.45 | -3.29 | 12.07 | 0.2618 | -1160.7 | 999999 | |
| 29 | -40 | 15 | -40 | 17.79 | 27.38 | -3.37 | 12.95 | 0.2506 | -2013.4 | 999999 | |
| 8 | -40 | 4 | -40 | 18.32 | 27.12 | -3.63 | 13.40 | 0.2603 | -1278.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
