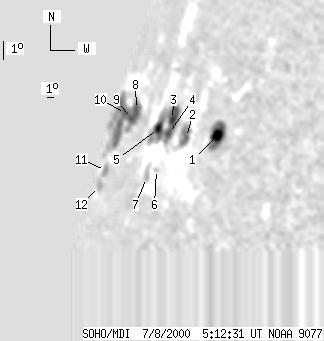

SOHO MDI 2000-07-08 05:12:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43 | 361 | 84 | 782 | 18.59 | 313.46 | -77.29 | 71.70 | 0.9714 | -154.8 | -107.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 05:12:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 53 | 15 | 68 | 18.84 | 323.48 | -67.27 | 71.12 | 0.9242 | 473.1 | 212.4 | |
| 0 | 32 | 0 | 47 | 18.56 | 320.07 | -70.67 | 71.62 | 0.9441 | -15.0 | -130.3 | |
| 7 | 105 | 11 | 185 | 19.16 | 317.51 | -73.23 | 71.10 | 0.9573 | -374.6 | -196.1 | |
| 4 | -3 | 6 | -3 | 18.57 | 317.59 | -73.15 | 71.70 | 0.9568 | -596.8 | 999999 | |
| 7 | -3 | 14 | -3 | 18.68 | 315.92 | -74.82 | 71.63 | 0.9645 | -112.5 | 999999 | |
| 0 | 2 | 0 | 4 | 17.07 | 317.46 | -73.28 | 73.28 | 0.9573 | -468.0 | -403.0 | |
| 0 | 9 | 0 | 15 | 16.67 | 316.37 | -74.37 | 73.71 | 0.9623 | -264.0 | -297.0 | |
| 11 | 141 | 30 | 396 | 19.17 | 310.87 | -79.87 | 71.19 | 0.9832 | -244.4 | -123.0 | |
| -8 | -8 | -8 | -8 | 18.76 | 310.43 | -80.31 | 71.59 | 0.9845 | 999999 | 999999 | |
| 2 | -8 | 8 | -8 | 18.85 | 308.52 | -82.22 | 71.48 | 0.9895 | -437.3 | 999999 | |
| 0 | 10 | 0 | 34 | 16.44 | 307.94 | -82.80 | 73.90 | 0.9910 | -77.0 | -32.1 | |
| 0 | 9 | 0 | 33 | 15.75 | 307.51 | -83.24 | 74.59 | 0.9920 | 77.0 | -10.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
