group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9070	234	1412	122	727	18.27	32.57	2.48	350.70	0.2544	115.5	164.0

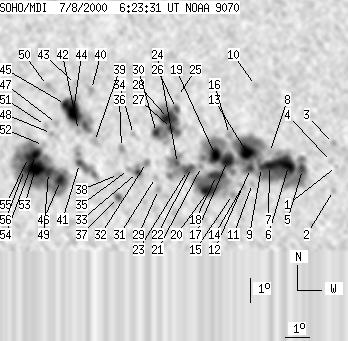

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-07-08 06:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	2	0	1	17.83	39.96	9.87	326.29	0.2952	917.0	862.6
2	0	3	0	1	16.85	39.78	9.69	324.76	0.2803	876.0	693.2
3	0	5	0	3	18.77	39.88	9.79	328.27	0.3075	880.0	728.7
4	0	3	0	2	18.04	39.76	9.67	327.22	0.2962	1052.0	770.9
5	5	599	3	308	17.72	38.52	8.43	330.06	0.2810	1405.9	762.5
6	12	-5	6	-5	17.89	37.94	7.85	332.08	0.2787	1740.5	999999
7	6	-5	3	-5	17.90	37.14	7.05	334.53	0.2728	2051.8	999999
8	0	3	0	2	18.43	37.16	7.07	335.32	0.2810	573.0	576.4
9	3	-5	2	-5	17.82	36.80	6.71	335.47	0.2692	1641.4	999999
10	0	4	0	2	21.19	36.69	6.60	340.38	0.3204	935.0	723.0
11	0	3	0	2	17.17	36.40	6.31	335.71	0.2565	858.0	679.5
12	3	-5	2	-5	17.78	36.34	6.25	336.90	0.2655	1470.8	999999
13	16	-5	8	-5	18.48	36.20	6.11	338.40	0.2753	1758.0	999999
14	0	4	0	2	17.05	35.98	5.89	336.95	0.2518	1054.0	782.0
15	0	5	0	3	16.73	35.56	5.47	337.94	0.2440	-78.0	-394.8
16	0	5	0	3	19.18	35.51	5.42	341.51	0.2824	-54.0	78.7
17	15	-5	8	-5	18.11	35.39	5.30	340.55	0.2649	1728.2	999999
18	11	-5	6	-5	17.50	34.91	4.82	341.40	0.2525	1679.2	999999
19	13	-5	7	-5	18.32	34.89	4.80	342.50	0.2655	1696.0	999999
20	15	-5	8	-5	16.89	34.56	4.47	341.86	0.2409	-1151.0	999999
21	0	4	0	2	17.87	34.30	4.21	344.06	0.2554	1184.0	957.1
22	2	74	1	38	17.83	33.88	3.79	345.53	0.2529	1260.3	600.7
23	4	-22	2	-22	17.71	33.71	3.62	346.03	0.2502	1450.8	999999
24	2	-22	1	-22	18.00	33.30	3.21	347.82	0.2534	1109.7	999999
25	0	3	0	2	20.75	33.35	3.26	349.70	0.2990	452.0	368.6
26	3	124	1	64	20.26	33.30	3.21	349.54	0.2907	898.4	534.2
27	4	-26	2	-26	19.43	33.07	2.98	349.72	0.2764	1635.0	999999
28	15	-26	8	-26	19.85	32.96	2.87	350.39	0.2829	1497.2	999999
29	0	4	0	2	16.94	32.49	2.40	350.05	0.2331	-982.0	-821.5
30	6	-26	3	-26	19.27	32.44	2.35	351.78	0.2720	-863.8	999999
31	0	4	0	2	17.43	32.37	2.28	350.88	0.2410	393.0	346.2
32	0	9	0	4	18.04	32.01	1.92	352.67	0.2504	-958.0	-753.9
33	4	14	2	7	17.64	31.63	1.54	353.92	0.2428	923.0	532.6
34	0	4	0	2	19.19	31.48	1.39	355.10	0.2688	-822.0	-622.4
35	0	4	0	2	17.76	31.26	1.17	355.43	0.2443	1045.0	774.4
36	0	5	0	3	18.66	30.97	0.88	356.77	0.2592	951.0	827.1
37	3	9	2	5	16.62	30.84	0.75	356.80	0.2244	-1282.9	-957.4
38	0	6	0	3	17.56	30.84	0.75	357.01	0.2404	570.0	569.4
39	0	16	0	8	18.91	29.84	-0.25	0.90	0.2630	490.0	37.7
40	0	7	0	3	21.05	29.71	-0.38	1.19	0.2991	-668.0	-691.5
41	3	52	2	26	18.00	29.22	-0.87	3.36	0.2481	-1461.3	-515.7
42	0	3	0	2	19.36	29.17	-0.92	3.22	0.2710	-920.0	-724.3
43	0	4	0	2	21.26	29.03	-1.06	3.28	0.3030	801.0	621.6
44	23	100	12	52	20.14	28.95	-1.14	3.77	0.2844	-1686.5	-748.8
45	8	-44	4	-44	20.43	28.61	-1.48	4.80	0.2896	703.0	999999
46	9	307	4	157	17.31	28.43	-1.66	6.70	0.2375	-1876.8	-823.8
47	0	5	0	2	19.64	28.24	-1.85	6.32	0.2771	-506.0	-312.3
48	0	3	0	2	19.23	28.04	-2.05	7.21	0.2706	-868.0	-729.4
49	7	-46	4	-46	17.63	27.93	-2.16	8.49	0.2441	-1821.6	999999
50	0	5	0	3	21.21	27.84	-2.25	6.94	0.3040	954.0	727.2
51	0	5	0	3	19.56	27.78	-2.31	7.92	0.2767	104.0	20.8
52	0	5	0	2	18.74	27.71	-2.38	8.64	0.2632	-715.0	-565.1
53	24	-46	12	-46	17.80	27.39	-2.70	10.46	0.2483	-2107.0	999999
54	9	-46	4	-46	18.37	27.38	-2.71	10.07	0.2579	-1309.6	999999
55	5	-46	3	-46	18.25	27.09	-3.00	11.22	0.2567	-1329.7	999999
56	4	-46	2	-46	17.75	26.93	-3.16	12.21	0.2492	-1445.8	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
