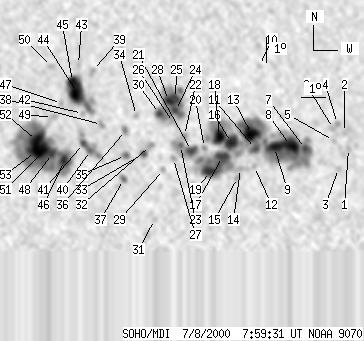

SOHO MDI 2000-07-08 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 253 | 1391 | 129 | 718 | 18.26 | 32.79 | 3.58 | 346.66 | 0.2578 | 243.6 | 152.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 17.78 | 40.30 | 11.09 | 323.08 | 0.3063 | 877.0 | 769.2 | |
| 0 | 10 | 0 | 5 | 18.44 | 40.17 | 10.96 | 324.71 | 0.3136 | 849.0 | 688.8 | |
| 0 | 5 | 0 | 3 | 16.97 | 39.83 | 10.62 | 322.53 | 0.2910 | 896.0 | 636.6 | |
| 0 | 4 | 0 | 2 | 18.81 | 39.90 | 10.69 | 326.08 | 0.3160 | 863.0 | 731.7 | |
| 0 | 4 | 0 | 2 | 18.11 | 39.68 | 10.48 | 325.27 | 0.3047 | 956.0 | 732.1 | |
| 0 | 4 | 0 | 2 | 18.61 | 39.71 | 10.51 | 326.15 | 0.3116 | 1123.0 | 865.8 | |
| 3 | 613 | 2 | 315 | 17.80 | 38.48 | 9.28 | 327.81 | 0.2894 | 1390.4 | 710.3 | |
| 26 | -7 | 14 | -7 | 17.93 | 37.86 | 8.65 | 329.80 | 0.2857 | 1578.5 | 999999 | |
| 15 | -7 | 8 | -7 | 17.85 | 37.18 | 7.97 | 331.63 | 0.2791 | 1913.3 | 999999 | |
| 0 | 5 | 0 | 2 | 21.23 | 36.71 | 7.50 | 338.00 | 0.3262 | 700.0 | 560.8 | |
| 4 | -7 | 2 | -7 | 17.82 | 36.38 | 7.18 | 334.00 | 0.2725 | 1398.9 | 999999 | |
| 0 | 3 | 0 | 2 | 17.09 | 36.31 | 7.10 | 332.93 | 0.2610 | 575.0 | 529.3 | |
| 19 | -7 | 10 | -7 | 18.43 | 36.24 | 7.03 | 335.44 | 0.2807 | 1745.6 | 999999 | |
| 0 | 9 | 0 | 5 | 17.01 | 35.72 | 6.52 | 334.73 | 0.2554 | 501.0 | 482.4 | |
| 0 | 5 | 0 | 3 | 16.64 | 35.59 | 6.38 | 334.55 | 0.2489 | -528.0 | -413.6 | |
| 16 | -7 | 8 | -7 | 18.07 | 35.39 | 6.18 | 337.57 | 0.2694 | 1767.1 | 999999 | |
| 10 | -7 | 5 | -7 | 17.50 | 34.99 | 5.78 | 338.03 | 0.2581 | 1706.0 | 999999 | |
| 13 | -7 | 7 | -7 | 18.32 | 34.89 | 5.68 | 339.54 | 0.2703 | 1738.7 | 999999 | |
| 14 | -7 | 7 | -7 | 16.90 | 34.47 | 5.27 | 338.93 | 0.2453 | -1165.7 | 999999 | |
| 0 | 4 | 0 | 2 | 17.87 | 34.25 | 5.04 | 341.11 | 0.2596 | 883.0 | 793.8 | |
| 9 | 15 | 4 | 8 | 17.75 | 33.71 | 4.50 | 342.88 | 0.2548 | 1440.3 | 1116.3 | |
| 0 | 5 | 0 | 3 | 18.37 | 33.43 | 4.22 | 344.55 | 0.2634 | 1073.0 | 906.5 | |
| 2 | 6 | 1 | 3 | 17.96 | 33.25 | 4.04 | 344.74 | 0.2560 | 1023.4 | 654.9 | |
| 4 | 127 | 2 | 66 | 19.40 | 33.08 | 3.87 | 346.74 | 0.2787 | 1620.7 | 574.5 | |
| 6 | -24 | 3 | -24 | 19.89 | 33.09 | 3.88 | 347.12 | 0.2868 | 1354.5 | 999999 | |
| 0 | 5 | 0 | 3 | 18.90 | 32.98 | 3.77 | 346.62 | 0.2703 | -313.0 | -222.1 | |
| 0 | 5 | 0 | 3 | 17.43 | 32.95 | 3.74 | 345.28 | 0.2460 | -458.0 | -428.1 | |
| 8 | -24 | 4 | -24 | 19.81 | 32.79 | 3.58 | 348.01 | 0.2844 | 1541.3 | 999999 | |
| 0 | 4 | 0 | 2 | 16.99 | 32.52 | 3.32 | 346.43 | 0.2369 | -873.0 | -710.6 | |
| 5 | -24 | 3 | -24 | 19.28 | 32.40 | 3.19 | 348.90 | 0.2743 | -1061.6 | 999999 | |
| 0 | 3 | 0 | 2 | 14.96 | 32.12 | 2.91 | 345.84 | 0.2017 | -950.0 | -887.5 | |
| 0 | 8 | 0 | 4 | 17.97 | 32.00 | 2.79 | 349.32 | 0.2513 | -1035.0 | -533.2 | |
| 3 | 8 | 2 | 4 | 17.64 | 31.70 | 2.50 | 350.20 | 0.2450 | 1104.5 | 592.3 | |
| 0 | 4 | 0 | 2 | 19.20 | 31.43 | 2.23 | 352.16 | 0.2703 | -983.0 | -749.4 | |
| 0 | 9 | 0 | 5 | 17.56 | 30.96 | 1.75 | 353.06 | 0.2418 | 613.0 | 558.2 | |
| 0 | 10 | 0 | 5 | 18.58 | 30.97 | 1.76 | 353.52 | 0.2590 | 994.0 | 733.5 | |
| 0 | 9 | 0 | 5 | 16.58 | 30.86 | 1.66 | 352.90 | 0.2251 | -1373.0 | -1016.4 | |
| 0 | 6 | 0 | 3 | 18.83 | 29.96 | 0.76 | 357.25 | 0.2618 | 473.0 | 414.4 | |
| 0 | 9 | 0 | 5 | 21.06 | 29.59 | 0.39 | 358.79 | 0.2991 | -731.0 | -724.3 | |
| 2 | 42 | 1 | 21 | 17.77 | 29.50 | 0.29 | 358.84 | 0.2435 | -650.8 | -567.8 | |
| 3 | -40 | 1 | -40 | 18.05 | 29.21 | 0.00 | 0.00 | 0.2484 | -1464.7 | 999999 | |
| 0 | 4 | 0 | 2 | 19.28 | 29.17 | -0.04 | 0.13 | 0.2692 | -876.0 | -718.1 | |
| 0 | 4 | 0 | 2 | 21.31 | 29.00 | -0.21 | 0.64 | 0.3032 | 626.0 | 556.6 | |
| 26 | 96 | 13 | 50 | 20.15 | 28.96 | -0.25 | 0.83 | 0.2838 | -1624.7 | -685.2 | |
| 9 | -44 | 4 | -44 | 20.60 | 28.75 | -0.46 | 1.49 | 0.2915 | 622.6 | 999999 | |
| 8 | 316 | 4 | 162 | 17.36 | 28.42 | -0.78 | 3.18 | 0.2369 | -1882.7 | -781.0 | |
| 0 | 4 | 0 | 2 | 19.69 | 28.29 | -0.92 | 3.15 | 0.2765 | -457.0 | -331.0 | |
| 7 | -46 | 3 | -46 | 17.64 | 27.92 | -1.28 | 5.08 | 0.2424 | -1831.3 | 999999 | |
| 0 | 16 | 0 | 8 | 19.12 | 27.91 | -1.30 | 4.60 | 0.2673 | -779.0 | -452.9 | |
| 0 | 6 | 0 | 3 | 21.22 | 27.85 | -1.36 | 4.20 | 0.3026 | 849.0 | 686.8 | |
| 41 | -46 | 21 | -46 | 17.81 | 27.59 | -1.62 | 6.31 | 0.2457 | -1930.6 | 999999 | |
| -51 | -46 | -51 | -46 | 18.17 | 27.25 | -1.95 | 7.41 | 0.2525 | 999999 | 999999 | |
| -51 | -46 | -51 | -46 | 17.72 | 27.22 | -1.99 | 7.80 | 0.2451 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
