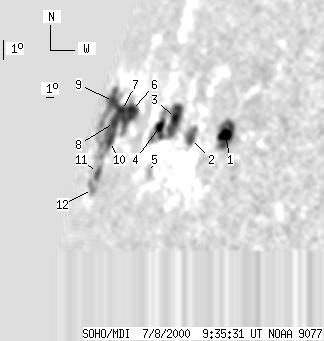

SOHO MDI 2000-07-08 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62 | 466 | 135 | 997 | 18.58 | 311.25 | -77.07 | 71.71 | 0.9700 | -130.2 | -127.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 59 | 14 | 69 | 18.82 | 323.47 | -64.86 | 70.96 | 0.9082 | 607.3 | 285.6 | |
| 0 | 25 | 0 | 33 | 18.46 | 320.03 | -68.29 | 71.61 | 0.9303 | 352.0 | 29.4 | |
| 6 | 117 | 9 | 183 | 19.19 | 317.54 | -70.78 | 70.97 | 0.9448 | -534.3 | -240.7 | |
| 6 | -3 | 10 | -3 | 18.75 | 315.84 | -72.48 | 71.50 | 0.9536 | -164.1 | 999999 | |
| 0 | 13 | 0 | 20 | 16.87 | 316.37 | -71.96 | 73.46 | 0.9506 | -446.0 | -310.9 | |
| 10 | 221 | 21 | 604 | 19.11 | 310.75 | -77.57 | 71.25 | 0.9755 | -8.4 | -154.1 | |
| 8 | -6 | 20 | -6 | 18.98 | 308.80 | -79.52 | 71.38 | 0.9821 | -431.5 | 999999 | |
| 4 | -6 | 10 | -6 | 18.44 | 308.15 | -80.18 | 71.93 | 0.9841 | -398.1 | 999999 | |
| 12 | -6 | 39 | -6 | 19.20 | 306.16 | -82.16 | 71.14 | 0.9894 | -57.2 | 999999 | |
| 4 | -6 | 12 | -6 | 17.66 | 308.39 | -79.94 | 72.72 | 0.9834 | -385.6 | 999999 | |
| 0 | 14 | 0 | 39 | 16.30 | 307.85 | -80.47 | 74.10 | 0.9850 | -256.0 | -159.7 | |
| 0 | 17 | 0 | 49 | 15.63 | 307.74 | -80.59 | 74.77 | 0.9854 | -71.0 | 36.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
