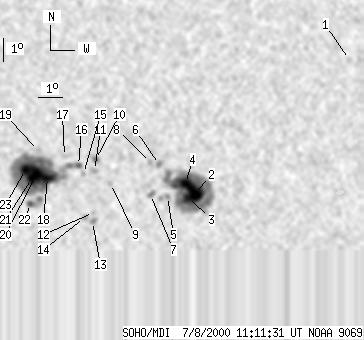

SOHO MDI 2000-07-08 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91 | 585 | 48 | 314 | -17.52 | 31.34 | 3.90 | 189.84 | 0.3732 | 90.9 | 68.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -12.45 | 41.12 | 13.67 | 219.78 | 0.3623 | -876.0 | -741.4 | |
| 31 | 230 | 17 | 124 | -18.03 | 34.88 | 7.43 | 198.37 | 0.3921 | -1808.1 | -747.2 | |
| -2 | -2 | -2 | -2 | -18.16 | 34.63 | 7.19 | 197.70 | 0.3928 | 999999 | 999999 | |
| 10 | -2 | 5 | -2 | -17.56 | 34.52 | 7.08 | 197.94 | 0.3831 | -2076.4 | 999999 | |
| 0 | 11 | 0 | 6 | -18.11 | 33.79 | 6.35 | 195.78 | 0.3881 | -462.0 | -451.5 | |
| 0 | 7 | 0 | 4 | -16.74 | 33.41 | 5.97 | 195.88 | 0.3653 | -1264.0 | -1059.2 | |
| 0 | 7 | 0 | 4 | -18.02 | 33.07 | 5.63 | 194.14 | 0.3838 | -564.0 | -505.5 | |
| 0 | 4 | 0 | 2 | -16.66 | 33.03 | 5.59 | 194.99 | 0.3623 | -541.0 | -426.5 | |
| 0 | 4 | 0 | 2 | -17.54 | 31.39 | 3.95 | 190.26 | 0.3704 | -698.0 | -408.1 | |
| 0 | 6 | 0 | 3 | -16.52 | 30.75 | 3.31 | 189.07 | 0.3522 | -1278.0 | -786.4 | |
| 0 | 5 | 0 | 3 | -16.98 | 30.72 | 3.27 | 188.77 | 0.3597 | 871.0 | 792.0 | |
| 0 | 3 | 0 | 2 | -18.77 | 30.71 | 3.27 | 188.02 | 0.3884 | 449.0 | 302.8 | |
| 0 | 4 | 0 | 2 | -19.16 | 30.67 | 3.23 | 187.79 | 0.3945 | 860.0 | 637.4 | |
| 0 | 5 | 0 | 3 | -18.99 | 30.33 | 2.89 | 187.04 | 0.3910 | 587.0 | 698.0 | |
| 0 | 3 | 0 | 2 | -17.11 | 30.26 | 2.82 | 187.52 | 0.3607 | 691.0 | 473.3 | |
| 2 | 11 | 1 | 6 | -16.77 | 30.05 | 2.61 | 187.09 | 0.3547 | 960.1 | 1043.7 | |
| 0 | 8 | 0 | 4 | -16.39 | 29.47 | 2.02 | 185.62 | 0.3474 | 631.0 | 472.7 | |
| 11 | 250 | 6 | 133 | -17.28 | 28.77 | 1.33 | 183.53 | 0.3610 | 1470.7 | 787.7 | |
| 0 | 4 | 0 | 2 | -16.13 | 28.39 | 0.95 | 182.68 | 0.3420 | 886.0 | 801.5 | |
| 17 | -18 | 9 | -18 | -17.10 | 28.31 | 0.87 | 182.34 | 0.3579 | 2115.2 | 999999 | |
| 8 | -18 | 4 | -18 | -17.32 | 28.11 | 0.67 | 181.77 | 0.3612 | 1563.7 | 999999 | |
| 2 | 19 | 1 | 10 | -18.38 | 28.07 | 0.63 | 181.58 | 0.3785 | 815.2 | 686.2 | |
| 10 | -18 | 5 | -18 | -16.93 | 27.86 | 0.42 | 181.13 | 0.3548 | 1997.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
