SOHO MDI 2000-07-08 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117 | 616 | 64 | 339 | -19.73 | 15.56 | -11.00 | 156.27 | 0.4405 | -49.2 | 77.0 | |
|
previous
or next observation for the same group /

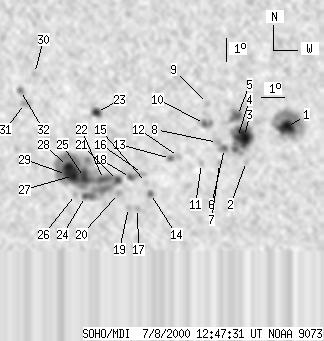

back to the solar disc SOHO MDI 2000-07-08 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 105 | 9 | 56 | -18.52 | 21.17 | -5.39 | 166.77 | 0.3908 | -1638.4 | -681.5 | |
| 0 | 3 | 0 | 2 | -20.00 | 19.42 | -7.14 | 163.82 | 0.4207 | -672.0 | -520.2 | |
| 21 | 84 | 11 | 45 | -18.92 | 19.39 | -7.17 | 162.95 | 0.4045 | -1647.2 | -870.0 | |
| 4 | -3 | 2 | -3 | -18.97 | 19.09 | -7.47 | 162.32 | 0.4066 | -1444.0 | 999999 | |
| 7 | 22 | 4 | 12 | -18.02 | 19.13 | -7.43 | 161.65 | 0.3921 | -1248.7 | -836.4 | |
| 3 | 12 | 2 | 7 | -19.44 | 18.52 | -8.04 | 161.46 | 0.4166 | -790.9 | -601.8 | |
| 0 | 4 | 0 | 2 | -20.09 | 18.27 | -8.29 | 161.46 | 0.4276 | 638.0 | 286.4 | |
| 0 | 7 | 0 | 4 | -19.19 | 18.23 | -8.33 | 160.64 | 0.4143 | -714.0 | -687.7 | |
| 0 | 4 | 0 | 2 | -17.52 | 17.89 | -8.67 | 158.37 | 0.3914 | 824.0 | 618.4 | |
| 2 | 14 | 1 | 8 | -18.38 | 17.72 | -8.83 | 158.82 | 0.4050 | 1202.1 | 873.8 | |
| 0 | 4 | 0 | 2 | -20.10 | 17.50 | -9.06 | 159.89 | 0.4318 | -864.0 | -580.1 | |
| 0 | 4 | 0 | 2 | -19.81 | 16.54 | -10.02 | 157.68 | 0.4330 | -1029.0 | -854.9 | |
| 0 | 7 | 0 | 4 | -19.90 | 16.19 | -10.37 | 157.08 | 0.4364 | -790.0 | -628.8 | |
| 2 | 6 | 1 | 3 | -21.44 | 15.21 | -11.34 | 156.67 | 0.4642 | 933.4 | 773.5 | |
| 0 | 5 | 0 | 3 | -20.96 | 15.08 | -11.48 | 155.97 | 0.4583 | 86.0 | 278.2 | |
| 0 | 6 | 0 | 3 | -20.57 | 14.94 | -11.62 | 155.33 | 0.4538 | 864.0 | 683.7 | |
| 0 | 4 | 0 | 2 | -22.10 | 14.59 | -11.97 | 156.17 | 0.4774 | 702.0 | 615.3 | |
| 3 | 10 | 2 | 6 | -20.75 | 14.40 | -12.16 | 154.53 | 0.4598 | 815.0 | 641.6 | |
| 0 | 4 | 0 | 2 | -22.07 | 14.20 | -12.36 | 155.45 | 0.4793 | -366.0 | -356.8 | |
| 0 | 4 | 0 | 2 | -21.46 | 13.82 | -12.74 | 154.20 | 0.4734 | 465.0 | 411.1 | |
| 4 | 269 | 2 | 151 | -20.89 | 13.83 | -12.73 | 153.64 | 0.4656 | -333.5 | 688.8 | |
| 7 | -21 | 4 | -21 | -20.86 | 13.22 | -13.34 | 152.54 | 0.4694 | 1365.0 | 999999 | |
| 6 | 15 | 3 | 8 | -17.97 | 13.16 | -13.40 | 149.12 | 0.4312 | -1109.1 | -704.0 | |
| 2 | -21 | 1 | -21 | -21.61 | 12.36 | -14.20 | 151.87 | 0.4857 | 850.8 | 999999 | |
| 12 | -21 | 7 | -21 | -20.78 | 12.40 | -14.16 | 151.05 | 0.4744 | 1426.9 | 999999 | |
| 0 | 4 | 0 | 2 | -21.53 | 11.93 | -14.63 | 151.08 | 0.4878 | 737.0 | 565.4 | |
| 27 | -21 | 15 | -21 | -20.70 | 11.93 | -14.63 | 150.17 | 0.4770 | 1496.3 | 999999 | |
| -27 | -21 | -27 | -21 | -20.32 | 11.70 | -14.86 | 149.35 | 0.4737 | 999999 | 999999 | |
| -27 | -21 | -27 | -21 | -20.66 | 11.62 | -14.94 | 149.62 | 0.4788 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -16.36 | 10.63 | -15.92 | 142.38 | 0.4330 | 659.0 | 419.1 | |
| 0 | 10 | 0 | 6 | -17.64 | 10.09 | -16.47 | 143.29 | 0.4538 | 849.0 | 812.1 | |
| 0 | 6 | 0 | 3 | -17.09 | 9.97 | -16.59 | 142.31 | 0.4483 | 1161.0 | 811.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
