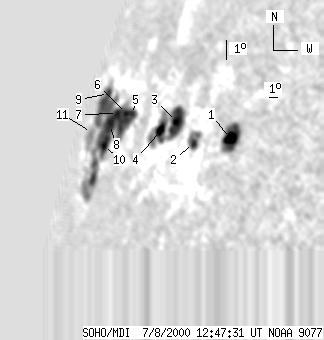

SOHO MDI 2000-07-08 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80 | 537 | 149 | 1051 | 18.68 | 310.86 | -75.70 | 71.58 | 0.9648 | -173.8 | -159.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 63 | 20 | 70 | 18.84 | 323.43 | -63.13 | 70.78 | 0.8959 | 682.1 | 278.4 | |
| 3 | 28 | 4 | 35 | 18.44 | 320.04 | -66.52 | 71.51 | 0.9191 | 244.3 | -16.1 | |
| 6 | 116 | 8 | 168 | 19.21 | 317.49 | -69.07 | 70.86 | 0.9352 | -594.4 | -250.9 | |
| 9 | -3 | 13 | -3 | 18.74 | 315.96 | -70.60 | 71.44 | 0.9437 | -228.0 | 999999 | |
| 5 | 309 | 9 | 712 | 19.14 | 311.48 | -75.08 | 71.18 | 0.9656 | 301.8 | -202.1 | |
| 3 | -5 | 6 | -5 | 19.12 | 310.48 | -76.08 | 71.22 | 0.9698 | -217.2 | 999999 | |
| 8 | -5 | 19 | -5 | 19.02 | 308.93 | -77.63 | 71.34 | 0.9757 | -447.8 | 999999 | |
| 17 | -5 | 40 | -5 | 18.51 | 308.11 | -78.45 | 71.86 | 0.9786 | -482.7 | 999999 | |
| 4 | -5 | 13 | -5 | 19.65 | 305.64 | -80.92 | 70.69 | 0.9861 | 90.8 | 999999 | |
| 7 | -5 | 17 | -5 | 17.64 | 308.25 | -78.31 | 72.75 | 0.9781 | -448.2 | 999999 | |
| 0 | 21 | 0 | 66 | 17.96 | 304.66 | -81.90 | 72.40 | 0.9888 | 38.0 | -0.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
