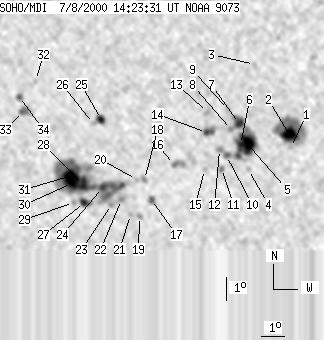

SOHO MDI 2000-07-08 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104 | 584 | 57 | 325 | -19.64 | 15.53 | -10.15 | 157.90 | 0.4344 | -82.0 | 59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -19.07 | 21.23 | -4.44 | 169.31 | 0.3964 | -471.0 | -370.5 | |
| 18 | 100 | 9 | 54 | -18.51 | 21.21 | -4.47 | 168.96 | 0.3877 | -1641.7 | -688.1 | |
| 0 | 4 | 0 | 2 | -15.55 | 19.83 | -5.84 | 163.47 | 0.3462 | 823.0 | 690.1 | |
| 0 | 3 | 0 | 2 | -20.03 | 19.43 | -6.25 | 165.77 | 0.4176 | -622.0 | -481.9 | |
| 23 | 71 | 12 | 38 | -18.91 | 19.43 | -6.25 | 165.04 | 0.4003 | -1621.1 | -972.6 | |
| 3 | -5 | 2 | -5 | -18.95 | 19.13 | -6.54 | 164.39 | 0.4023 | -1394.2 | 999999 | |
| 6 | 19 | 3 | 10 | -18.05 | 19.13 | -6.55 | 163.72 | 0.3884 | -1382.3 | -951.9 | |
| 0 | 5 | 0 | 3 | -18.31 | 18.78 | -6.90 | 163.11 | 0.3940 | -646.0 | -457.1 | |
| 0 | 7 | 0 | 4 | -17.46 | 18.69 | -6.99 | 162.20 | 0.3814 | -370.0 | -252.6 | |
| 0 | 6 | 0 | 3 | -19.43 | 18.52 | -7.15 | 163.38 | 0.4123 | -958.0 | -784.6 | |
| 0 | 4 | 0 | 2 | -20.00 | 18.28 | -7.39 | 163.28 | 0.4219 | 261.0 | 247.3 | |
| 0 | 8 | 0 | 5 | -19.18 | 18.24 | -7.44 | 162.56 | 0.4097 | -866.0 | -651.6 | |
| 0 | 5 | 0 | 3 | -17.60 | 17.80 | -7.87 | 160.25 | 0.3881 | 755.0 | 683.8 | |
| 3 | 13 | 2 | 7 | -18.45 | 17.72 | -7.95 | 160.83 | 0.4014 | 1214.6 | 972.9 | |
| 0 | 3 | 0 | 2 | -20.05 | 17.56 | -8.12 | 161.78 | 0.4261 | -410.0 | -465.7 | |
| 0 | 13 | 0 | 7 | -19.84 | 16.29 | -9.39 | 159.00 | 0.4299 | -868.0 | -843.2 | |
| 0 | 6 | 0 | 4 | -21.38 | 15.20 | -10.48 | 158.23 | 0.4583 | 1029.0 | 872.5 | |
| 0 | 5 | 0 | 3 | -20.51 | 14.96 | -10.71 | 156.99 | 0.4473 | 1002.0 | 850.6 | |
| 0 | 5 | 0 | 3 | -22.13 | 14.62 | -11.05 | 157.82 | 0.4724 | 689.0 | 515.5 | |
| 0 | 2 | 0 | 1 | -20.51 | 14.62 | -11.06 | 156.34 | 0.4495 | 919.0 | 843.5 | |
| 0 | 3 | 0 | 2 | -22.05 | 14.24 | -11.44 | 157.06 | 0.4735 | -243.0 | -225.9 | |
| 0 | 5 | 0 | 3 | -21.40 | 13.90 | -11.78 | 155.85 | 0.4664 | 826.0 | 575.5 | |
| 0 | 4 | 0 | 2 | -21.62 | 13.44 | -12.23 | 155.25 | 0.4725 | 657.0 | 460.2 | |
| 4 | 238 | 2 | 133 | -20.88 | 13.12 | -12.56 | 153.95 | 0.4645 | 1289.8 | 666.3 | |
| 5 | 11 | 3 | 6 | -17.95 | 13.30 | -12.37 | 151.05 | 0.4229 | -1193.1 | -790.8 | |
| 0 | 4 | 0 | 2 | -18.13 | 12.95 | -12.73 | 150.58 | 0.4281 | -561.0 | -451.3 | |
| 5 | 14 | 3 | 8 | -21.55 | 12.27 | -13.41 | 153.15 | 0.4794 | 936.9 | 708.9 | |
| 11 | -24 | 6 | -24 | -20.77 | 12.30 | -13.38 | 152.39 | 0.4686 | 1309.9 | 999999 | |
| 0 | 3 | 0 | 2 | -21.56 | 11.79 | -13.89 | 152.34 | 0.4829 | 865.0 | 608.8 | |
| 12 | -24 | 7 | -24 | -20.73 | 11.78 | -13.90 | 151.45 | 0.4719 | 1162.0 | 999999 | |
| 14 | -24 | 8 | -24 | -20.38 | 11.81 | -13.86 | 151.12 | 0.4670 | 1873.9 | 999999 | |
| 0 | 3 | 0 | 2 | -16.34 | 10.61 | -15.07 | 143.86 | 0.4248 | 536.0 | 406.1 | |
| 0 | 10 | 0 | 6 | -17.67 | 9.94 | -15.74 | 144.55 | 0.4475 | 1015.0 | 759.8 | |
| 0 | 7 | 0 | 4 | -17.03 | 9.86 | -15.81 | 143.54 | 0.4403 | 1066.0 | 748.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
