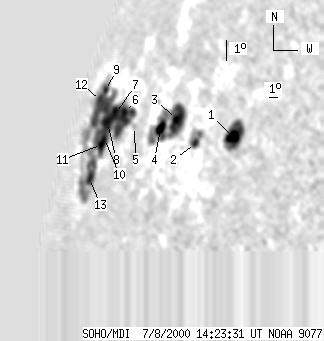

SOHO MDI 2000-07-08 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85 | 601 | 157 | 1108 | 18.43 | 310.96 | -74.72 | 71.83 | 0.9610 | -288.4 | -142.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 65 | 12 | 70 | 18.81 | 323.48 | -62.20 | 70.72 | 0.8889 | 701.4 | 338.5 | |
| 3 | 25 | 3 | 30 | 18.37 | 320.14 | -65.54 | 71.52 | 0.9125 | 60.3 | -12.3 | |
| 4 | 134 | 6 | 187 | 19.21 | 317.41 | -68.26 | 70.80 | 0.9304 | -526.9 | -222.0 | |
| 9 | -3 | 13 | -3 | 18.75 | 315.94 | -69.74 | 71.39 | 0.9389 | -171.9 | 999999 | |
| 0 | 4 | 0 | 7 | 18.63 | 312.60 | -73.08 | 71.65 | 0.9564 | 165.0 | 147.0 | |
| 4 | 373 | 8 | 814 | 19.09 | 310.48 | -75.19 | 71.23 | 0.9661 | -236.0 | -173.4 | |
| 12 | -6 | 25 | -6 | 18.96 | 309.09 | -76.59 | 71.39 | 0.9718 | -439.3 | 999999 | |
| 17 | -6 | 37 | -6 | 18.53 | 308.21 | -77.47 | 71.84 | 0.9751 | -542.5 | 999999 | |
| 3 | -6 | 7 | -6 | 19.71 | 305.67 | -80.01 | 70.64 | 0.9835 | 177.4 | 999999 | |
| 5 | -6 | 10 | -6 | 17.88 | 308.59 | -77.09 | 72.50 | 0.9737 | -548.1 | 999999 | |
| 7 | -6 | 14 | -6 | 17.62 | 308.39 | -77.29 | 72.77 | 0.9744 | -485.0 | 999999 | |
| 2 | -6 | 6 | -6 | 19.27 | 305.33 | -80.35 | 71.09 | 0.9846 | -27.3 | 999999 | |
| 7 | -6 | 16 | -6 | 16.19 | 308.04 | -77.64 | 74.24 | 0.9757 | -277.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
