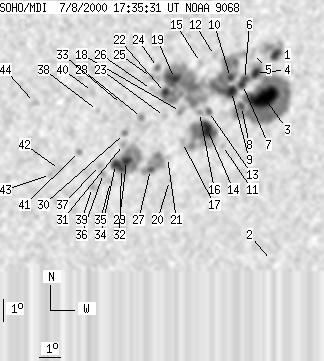

SOHO MDI 2000-07-08 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143 | 1146 | 85 | 686 | -18.43 | 49.48 | 25.57 | 227.65 | 0.5563 | -716.1 | -179.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 43 | 5 | 26 | -16.27 | 51.87 | 27.96 | 233.31 | 0.5635 | -1079.5 | -820.5 | |
| 0 | 4 | 0 | 2 | -25.29 | 53.53 | 29.61 | 223.07 | 0.6566 | 765.0 | 590.7 | |
| 50 | 709 | 30 | 425 | -18.08 | 51.61 | 27.70 | 230.43 | 0.5754 | -1563.6 | -296.0 | |
| 7 | -3 | 4 | -3 | -17.04 | 51.01 | 27.10 | 231.33 | 0.5600 | -1263.1 | 999999 | |
| 0 | 9 | 0 | 5 | -16.23 | 50.75 | 26.84 | 232.27 | 0.5502 | -825.0 | -743.8 | |
| 3 | -3 | 2 | -3 | -17.28 | 50.54 | 26.63 | 230.51 | 0.5567 | -1584.9 | 999999 | |
| 4 | -3 | 2 | -3 | -17.49 | 50.48 | 26.57 | 230.14 | 0.5579 | -1433.6 | 999999 | |
| 3 | -3 | 2 | -3 | -18.43 | 50.59 | 26.68 | 228.91 | 0.5673 | -1098.5 | 999999 | |
| 10 | -3 | 6 | -3 | -17.78 | 50.01 | 26.10 | 229.25 | 0.5552 | -1456.7 | 999999 | |
| 5 | -3 | 3 | -3 | -17.18 | 49.88 | 25.96 | 229.97 | 0.5484 | -1557.0 | 999999 | |
| 0 | 4 | 0 | 2 | -20.09 | 49.99 | 26.07 | 226.02 | 0.5758 | -440.0 | -421.5 | |
| 0 | 4 | 0 | 2 | -16.22 | 49.00 | 25.09 | 230.47 | 0.5301 | -683.0 | -486.8 | |
| 2 | 8 | 1 | 5 | -18.60 | 49.08 | 25.17 | 227.08 | 0.5526 | -1018.3 | -857.8 | |
| 17 | 109 | 10 | 65 | -19.38 | 49.16 | 25.25 | 226.10 | 0.5606 | -1391.9 | -684.6 | |
| 0 | 6 | 0 | 3 | -16.50 | 48.41 | 24.49 | 229.38 | 0.5258 | 547.0 | 454.4 | |
| 0 | 4 | 0 | 3 | -18.63 | 48.67 | 24.76 | 226.58 | 0.5485 | -1015.0 | -953.7 | |
| 0 | 6 | 0 | 4 | -19.91 | 48.09 | 24.18 | 224.18 | 0.5547 | -597.0 | -561.8 | |
| 0 | 7 | 0 | 4 | -18.56 | 47.79 | 23.88 | 225.67 | 0.5385 | 509.0 | 85.4 | |
| 4 | -3 | 3 | -3 | -17.15 | 47.31 | 23.40 | 227.16 | 0.5197 | 1422.7 | 999999 | |
| 0 | 3 | 0 | 2 | -21.55 | 47.76 | 23.85 | 221.67 | 0.5679 | -491.0 | -363.1 | |
| 0 | 2 | 0 | 1 | -20.54 | 47.50 | 23.59 | 222.66 | 0.5551 | -470.0 | -405.8 | |
| 5 | -3 | 3 | -3 | -17.73 | 46.99 | 23.08 | 225.91 | 0.5218 | 1367.8 | 999999 | |
| 0 | 5 | 0 | 3 | -18.76 | 47.09 | 23.18 | 224.57 | 0.5331 | 856.0 | 738.8 | |
| 0 | 8 | 0 | 5 | -16.66 | 46.49 | 22.57 | 226.88 | 0.5058 | 1291.0 | 902.4 | |
| 0 | 9 | 0 | 5 | -17.08 | 46.27 | 22.36 | 225.99 | 0.5076 | 1021.0 | 762.3 | |
| 0 | 3 | 0 | 2 | -17.59 | 46.34 | 22.42 | 225.32 | 0.5134 | 951.0 | 774.0 | |
| 3 | 46 | 2 | 28 | -21.04 | 46.80 | 22.89 | 221.18 | 0.5534 | 950.5 | 330.9 | |
| 0 | 8 | 0 | 4 | -18.77 | 46.05 | 22.13 | 223.27 | 0.5225 | 1269.0 | 1055.5 | |
| 8 | 95 | 4 | 56 | -20.62 | 45.63 | 21.72 | 220.28 | 0.5378 | 1352.6 | 525.3 | |
| 0 | 4 | 0 | 2 | -19.44 | 45.37 | 21.46 | 221.49 | 0.5227 | 1131.0 | 903.0 | |
| 0 | 4 | 0 | 3 | -19.92 | 45.39 | 21.48 | 220.89 | 0.5280 | 1089.0 | 963.3 | |
| 5 | -29 | 3 | -29 | -20.96 | 45.46 | 21.54 | 219.62 | 0.5398 | 1113.0 | 999999 | |
| 0 | 3 | 0 | 2 | -18.19 | 45.07 | 21.16 | 222.83 | 0.5064 | 861.0 | 726.9 | |
| 8 | -29 | 5 | -29 | -20.78 | 45.16 | 21.24 | 219.47 | 0.5351 | 1431.4 | 999999 | |
| 0 | 5 | 0 | 3 | -21.52 | 45.04 | 21.13 | 218.39 | 0.5421 | 640.0 | 596.9 | |
| 0 | 4 | 0 | 3 | -21.16 | 44.67 | 20.75 | 218.35 | 0.5347 | 846.0 | 803.7 | |
| 0 | 5 | 0 | 3 | -20.81 | 44.43 | 20.52 | 218.49 | 0.5286 | 843.0 | 912.9 | |
| 0 | 2 | 0 | 1 | -18.42 | 44.03 | 20.12 | 221.10 | 0.4984 | 917.0 | 707.8 | |
| 0 | 6 | 0 | 4 | -21.76 | 44.25 | 20.34 | 217.07 | 0.5377 | 896.0 | 692.0 | |
| 0 | 6 | 0 | 4 | -17.61 | 43.71 | 19.80 | 221.81 | 0.4862 | 790.0 | 696.8 | |
| 0 | 5 | 0 | 3 | -20.17 | 43.45 | 19.53 | 217.95 | 0.5124 | 1047.0 | 918.5 | |
| 0 | 3 | 0 | 2 | -20.94 | 42.65 | 18.74 | 215.87 | 0.5140 | 1024.0 | 845.8 | |
| 0 | 3 | 0 | 2 | -21.15 | 42.27 | 18.36 | 215.08 | 0.5132 | 644.0 | 580.3 | |
| 0 | 4 | 0 | 2 | -18.02 | 41.21 | 17.30 | 217.49 | 0.4664 | 1008.0 | 865.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
