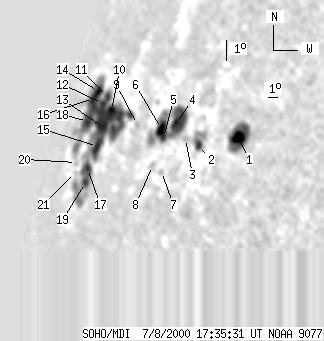

SOHO MDI 2000-07-08 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115 | 718 | 205 | 1267 | 18.47 | 309.94 | -73.97 | 71.76 | 0.9571 | -237.2 | -193.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 72 | 13 | 73 | 18.88 | 323.43 | -60.48 | 70.46 | 0.8756 | 723.7 | 312.1 | |
| 4 | 32 | 5 | 36 | 18.36 | 320.15 | -63.76 | 71.39 | 0.9001 | 176.1 | 23.1 | |
| 0 | 5 | 0 | 6 | 18.57 | 318.73 | -65.18 | 71.28 | 0.9102 | -299.0 | -270.4 | |
| 7 | 137 | 8 | 177 | 19.11 | 317.28 | -66.63 | 70.81 | 0.9201 | -662.5 | -238.4 | |
| 3 | -4 | 4 | -4 | 18.48 | 316.49 | -67.42 | 71.54 | 0.9249 | -632.9 | 999999 | |
| 11 | -4 | 15 | -4 | 18.82 | 315.98 | -67.93 | 71.20 | 0.9282 | -249.5 | 999999 | |
| 0 | 4 | 0 | 5 | 17.12 | 317.31 | -66.60 | 72.97 | 0.9190 | -315.0 | -325.6 | |
| 0 | 4 | 0 | 6 | 17.30 | 316.21 | -67.71 | 72.83 | 0.9262 | -427.0 | -360.5 | |
| 0 | 3 | 0 | 5 | 18.82 | 313.10 | -70.81 | 71.37 | 0.9448 | 228.0 | 179.1 | |
| 7 | 456 | 12 | 948 | 19.15 | 308.96 | -74.95 | 71.17 | 0.9651 | -95.0 | -238.0 | |
| 4 | -10 | 8 | -10 | 19.65 | 307.57 | -76.34 | 70.68 | 0.9709 | 179.3 | 999999 | |
| 5 | -10 | 10 | -10 | 19.33 | 307.13 | -76.78 | 71.01 | 0.9725 | -168.9 | 999999 | |
| 15 | -10 | 30 | -10 | 18.43 | 308.22 | -75.69 | 71.92 | 0.9681 | -615.9 | 999999 | |
| 5 | -10 | 11 | -10 | 19.74 | 305.66 | -78.25 | 70.61 | 0.9779 | 192.2 | 999999 | |
| 10 | -10 | 20 | -10 | 17.62 | 308.58 | -75.33 | 72.75 | 0.9666 | -576.1 | 999999 | |
| 5 | -10 | 12 | -10 | 19.42 | 305.16 | -78.75 | 70.94 | 0.9796 | 23.5 | 999999 | |
| 5 | -10 | 10 | -10 | 16.68 | 308.04 | -75.88 | 73.74 | 0.9688 | -244.8 | 999999 | |
| 15 | -10 | 36 | -10 | 18.47 | 305.50 | -78.41 | 71.90 | 0.9784 | -321.7 | 999999 | |
| 6 | -10 | 11 | -10 | 16.12 | 308.35 | -75.56 | 74.31 | 0.9675 | -417.1 | 999999 | |
| 0 | 3 | 0 | 6 | 16.79 | 305.83 | -78.08 | 73.63 | 0.9773 | 365.0 | 302.6 | |
| 0 | 2 | 0 | 5 | 16.40 | 306.18 | -77.73 | 74.03 | 0.9760 | 431.0 | 356.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
