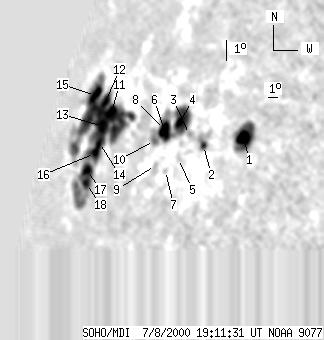

SOHO MDI 2000-07-08 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132 | 765 | 224 | 1279 | 18.45 | 310.04 | -72.99 | 71.77 | 0.9529 | -248.6 | -202.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 71 | 13 | 71 | 18.89 | 323.39 | -59.64 | 70.35 | 0.8688 | 809.5 | 342.5 | |
| 2 | 26 | 2 | 29 | 18.38 | 320.20 | -62.83 | 71.29 | 0.8932 | 293.4 | 75.5 | |
| 0 | 4 | 0 | 5 | 18.74 | 318.62 | -64.41 | 71.03 | 0.9049 | -361.0 | -354.3 | |
| 6 | 108 | 7 | 135 | 19.17 | 317.30 | -65.72 | 70.68 | 0.9142 | -726.4 | -334.9 | |
| 0 | 4 | 0 | 4 | 17.73 | 318.26 | -64.77 | 72.18 | 0.9069 | -226.0 | -208.0 | |
| 4 | -4 | 5 | -4 | 18.53 | 316.44 | -66.59 | 71.43 | 0.9196 | -662.3 | 999999 | |
| 0 | 2 | 0 | 3 | 17.18 | 317.33 | -65.70 | 72.85 | 0.9130 | -373.0 | -349.0 | |
| 14 | -4 | 17 | -4 | 18.80 | 316.01 | -67.02 | 71.17 | 0.9224 | -316.4 | 999999 | |
| 0 | 10 | 0 | 12 | 17.31 | 316.19 | -66.84 | 72.77 | 0.9206 | -423.0 | -286.1 | |
| 0 | 17 | 0 | 22 | 18.30 | 315.32 | -67.71 | 71.76 | 0.9266 | 84.0 | 118.4 | |
| 10 | 523 | 18 | 998 | 19.12 | 308.92 | -74.10 | 71.18 | 0.9613 | -155.4 | -235.7 | |
| 11 | -11 | 21 | -11 | 19.45 | 307.51 | -75.52 | 70.87 | 0.9675 | 36.3 | 999999 | |
| 20 | -11 | 37 | -11 | 18.46 | 308.32 | -74.71 | 71.88 | 0.9639 | -652.0 | 999999 | |
| 9 | -11 | 16 | -11 | 17.81 | 308.62 | -74.41 | 72.55 | 0.9625 | -677.2 | 999999 | |
| 18 | -11 | 41 | -11 | 19.58 | 305.48 | -77.55 | 70.77 | 0.9754 | 67.3 | 999999 | |
| 8 | -11 | 15 | -11 | 17.34 | 308.38 | -74.65 | 73.04 | 0.9636 | -525.8 | 999999 | |
| 13 | -11 | 24 | -11 | 16.61 | 308.08 | -74.95 | 73.80 | 0.9648 | -301.1 | 999999 | |
| 4 | -11 | 8 | -11 | 16.10 | 308.48 | -74.55 | 74.33 | 0.9630 | -457.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
