SOHO MDI 2000-07-08 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137 | 788 | 217 | 1235 | 18.31 | 310.41 | -71.73 | 71.87 | 0.9466 | -281.6 | -222.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-08 20:47:31 UT |

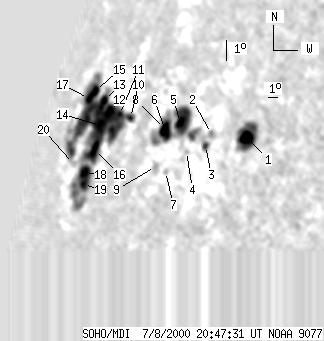

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 71 | 11 | 69 | 18.90 | 323.41 | -58.74 | 70.23 | 0.8614 | 922.1 | 373.5 | |
| 0 | 6 | 0 | 7 | 18.90 | 320.43 | -61.71 | 70.59 | 0.8852 | 187.0 | 233.9 | |
| 1 | 13 | 1 | 14 | 18.39 | 320.22 | -61.92 | 71.19 | 0.8864 | 308.0 | 122.0 | |
| 0 | 3 | 0 | 3 | 18.05 | 318.70 | -63.45 | 71.71 | 0.8976 | -43.0 | 33.2 | |
| 8 | 151 | 10 | 182 | 19.18 | 317.33 | -64.82 | 70.59 | 0.9080 | -747.4 | -264.0 | |
| 4 | -5 | 5 | -5 | 18.55 | 316.48 | -65.66 | 71.35 | 0.9134 | -651.0 | 999999 | |
| 0 | 4 | 0 | 4 | 17.14 | 317.27 | -64.87 | 72.83 | 0.9072 | -339.0 | -356.0 | |
| 11 | -5 | 13 | -5 | 18.85 | 315.94 | -66.20 | 71.06 | 0.9172 | -370.4 | 999999 | |
| 0 | 11 | 0 | 14 | 17.28 | 316.17 | -65.98 | 72.75 | 0.9149 | -340.0 | -281.0 | |
| 3 | 526 | 4 | 936 | 19.06 | 311.87 | -70.28 | 71.09 | 0.9420 | 514.9 | -269.6 | |
| 4 | -10 | 6 | -10 | 19.10 | 310.39 | -71.75 | 71.12 | 0.9499 | -55.4 | 999999 | |
| 8 | -10 | 13 | -10 | 19.13 | 308.94 | -73.21 | 71.14 | 0.9571 | -23.5 | 999999 | |
| 6 | -10 | 11 | -10 | 19.52 | 307.70 | -74.45 | 70.77 | 0.9629 | 160.7 | 999999 | |
| 23 | -10 | 40 | -10 | 18.51 | 308.31 | -73.83 | 71.81 | 0.9599 | -691.8 | 999999 | |
| 7 | -10 | 14 | -10 | 19.82 | 305.75 | -76.40 | 70.51 | 0.9711 | 272.8 | 999999 | |
| 16 | -10 | 27 | -10 | 17.53 | 308.52 | -73.62 | 72.83 | 0.9588 | -607.8 | 999999 | |
| 9 | -10 | 18 | -10 | 19.44 | 305.02 | -77.12 | 70.91 | 0.9738 | -58.0 | 999999 | |
| 17 | -10 | 29 | -10 | 16.55 | 308.06 | -74.09 | 73.86 | 0.9609 | -371.0 | 999999 | |
| 9 | -10 | 15 | -10 | 16.07 | 308.40 | -73.75 | 74.35 | 0.9593 | -490.5 | 999999 | |
| 0 | 3 | 0 | 6 | 16.79 | 305.98 | -76.17 | 73.63 | 0.9700 | 243.0 | 304.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
