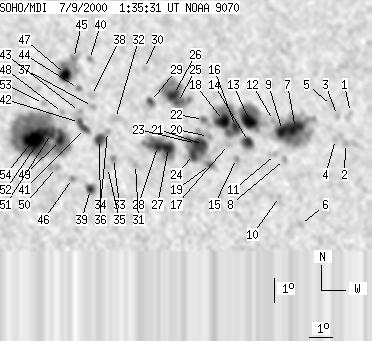

SOHO MDI 2000-07-09 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 216 | 1225 | 114 | 644 | 18.00 | 32.37 | 12.87 | 320.59 | 0.3305 | 279.4 | 124.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 10 | 0 | 6 | 18.58 | 40.61 | 21.12 | 307.19 | 0.4304 | 630.0 | 601.9 | |
| 0 | 21 | 0 | 11 | 17.32 | 40.23 | 20.74 | 305.11 | 0.4149 | 746.0 | 657.1 | |
| 0 | 4 | 0 | 2 | 18.47 | 40.02 | 20.52 | 307.71 | 0.4220 | 871.0 | 744.6 | |
| 0 | 3 | 0 | 2 | 17.49 | 39.81 | 20.31 | 305.99 | 0.4109 | 853.0 | 747.1 | |
| 0 | 9 | 0 | 5 | 18.89 | 39.80 | 20.30 | 308.79 | 0.4230 | 922.0 | 590.6 | |
| 0 | 5 | 0 | 3 | 14.09 | 37.94 | 18.44 | 300.63 | 0.3582 | 761.0 | 652.9 | |
| 17 | 143 | 9 | 77 | 17.98 | 38.10 | 18.60 | 309.26 | 0.3936 | 1539.2 | 784.5 | |
| 0 | 5 | 0 | 3 | 16.73 | 37.49 | 17.99 | 307.45 | 0.3742 | 1179.0 | 935.8 | |
| 12 | -7 | 6 | -7 | 17.91 | 37.52 | 18.03 | 309.95 | 0.3857 | 1851.3 | 999999 | |
| 0 | 3 | 0 | 1 | 15.23 | 37.14 | 17.64 | 304.51 | 0.3563 | 724.0 | 622.5 | |
| 0 | 3 | 0 | 2 | 16.94 | 37.12 | 17.62 | 308.46 | 0.3714 | 910.0 | 889.5 | |
| 0 | 4 | 0 | 2 | 18.32 | 37.17 | 17.68 | 311.34 | 0.3855 | 998.0 | 813.1 | |
| 22 | 178 | 12 | 95 | 18.34 | 36.13 | 16.63 | 313.03 | 0.3732 | 1610.7 | 710.8 | |
| 5 | 22 | 3 | 12 | 17.49 | 36.00 | 16.50 | 311.42 | 0.3629 | 1507.2 | 1091.2 | |
| 0 | 5 | 0 | 2 | 16.81 | 35.42 | 15.92 | 310.87 | 0.3488 | 789.0 | 725.9 | |
| 9 | -13 | 5 | -13 | 18.11 | 35.50 | 16.00 | 313.59 | 0.3632 | 1503.9 | 999999 | |
| 0 | 3 | 0 | 1 | 17.38 | 35.13 | 15.63 | 312.66 | 0.3512 | 854.0 | 875.4 | |
| 17 | -13 | 9 | -13 | 18.36 | 35.00 | 15.50 | 314.99 | 0.3602 | 1661.5 | 999999 | |
| 0 | 11 | 0 | 6 | 16.58 | 34.29 | 14.79 | 312.36 | 0.3326 | -1144.0 | -986.2 | |
| 0 | 17 | 0 | 9 | 17.72 | 34.30 | 14.80 | 314.90 | 0.3450 | 348.0 | 149.8 | |
| 3 | 86 | 2 | 45 | 17.40 | 34.05 | 14.56 | 314.65 | 0.3386 | 1436.2 | 629.2 | |
| 0 | 9 | 0 | 5 | 18.42 | 34.14 | 14.64 | 316.67 | 0.3510 | 1170.0 | 877.7 | |
| 6 | -21 | 3 | -21 | 17.45 | 33.76 | 14.26 | 315.32 | 0.3357 | 1598.7 | 999999 | |
| 8 | -21 | 4 | -21 | 17.00 | 33.59 | 14.10 | 314.64 | 0.3288 | -813.2 | 999999 | |
| 3 | 87 | 2 | 46 | 19.13 | 33.08 | 13.58 | 320.17 | 0.3479 | 1531.0 | 755.5 | |
| 12 | -25 | 6 | -25 | 19.46 | 32.94 | 13.44 | 321.10 | 0.3504 | 1518.9 | 999999 | |
| 12 | 81 | 6 | 42 | 17.30 | 32.55 | 13.05 | 317.44 | 0.3202 | 1574.8 | 742.1 | |
| 6 | -27 | 3 | -27 | 17.35 | 32.09 | 12.59 | 318.55 | 0.3156 | 1655.7 | 999999 | |
| 4 | 13 | 2 | 7 | 19.19 | 31.92 | 12.42 | 322.69 | 0.3367 | -853.3 | -445.5 | |
| 0 | 5 | 0 | 3 | 20.55 | 31.77 | 12.27 | 325.48 | 0.3528 | 562.0 | 553.2 | |
| 0 | 5 | 0 | 2 | 16.63 | 31.11 | 11.61 | 319.16 | 0.2962 | -233.0 | -298.8 | |
| 0 | 16 | 0 | 8 | 18.51 | 30.38 | 10.88 | 324.92 | 0.3128 | 673.0 | 397.7 | |
| 0 | 5 | 0 | 3 | 16.88 | 30.20 | 10.70 | 321.99 | 0.2897 | -945.0 | -822.8 | |
| 0 | 6 | 0 | 3 | 17.99 | 30.01 | 10.51 | 324.80 | 0.3023 | -791.0 | -579.4 | |
| 0 | 2 | 0 | 1 | 16.52 | 29.92 | 10.42 | 321.87 | 0.2822 | -1014.0 | -853.2 | |
| 8 | 17 | 4 | 9 | 17.66 | 29.65 | 10.15 | 325.06 | 0.2945 | -1393.4 | -983.6 | |
| 0 | 6 | 0 | 3 | 19.02 | 29.43 | 9.93 | 328.21 | 0.3110 | -949.0 | -738.1 | |
| 0 | 10 | 0 | 5 | 19.47 | 29.42 | 9.92 | 329.04 | 0.3172 | -763.0 | -636.4 | |
| 5 | 14 | 3 | 7 | 15.64 | 29.17 | 9.67 | 321.84 | 0.2629 | 766.6 | 258.3 | |
| 0 | 5 | 0 | 3 | 20.96 | 29.43 | 9.93 | 331.42 | 0.3382 | -1004.0 | -677.5 | |
| 4 | 19 | 2 | 10 | 18.12 | 29.04 | 9.54 | 327.57 | 0.2951 | -1268.1 | -1002.3 | |
| 3 | -41 | 1 | -41 | 18.37 | 28.84 | 9.35 | 328.56 | 0.2968 | -1376.3 | 999999 | |
| 0 | 4 | 0 | 2 | 18.82 | 28.87 | 9.37 | 329.31 | 0.3034 | -1000.0 | -893.8 | |
| 0 | 5 | 0 | 3 | 19.76 | 28.88 | 9.38 | 330.90 | 0.3169 | -865.0 | -743.3 | |
| 0 | 3 | 0 | 2 | 21.00 | 28.74 | 9.25 | 333.16 | 0.3336 | 682.0 | 520.7 | |
| 0 | 4 | 0 | 2 | 16.09 | 28.44 | 8.94 | 325.03 | 0.2616 | -885.0 | -713.1 | |
| 13 | 29 | 7 | 15 | 20.35 | 28.36 | 8.86 | 333.15 | 0.3212 | -1471.9 | -649.0 | |
| 0 | 4 | 0 | 2 | 18.78 | 28.15 | 8.65 | 331.20 | 0.2969 | -744.0 | -541.2 | |
| 5 | 328 | 3 | 169 | 17.64 | 28.01 | 8.51 | 329.53 | 0.2793 | -1817.1 | -789.7 | |
| 0 | 12 | 0 | 6 | 16.54 | 27.79 | 8.29 | 327.98 | 0.2619 | -1006.0 | -777.3 | |
| 6 | -49 | 3 | -49 | 17.93 | 27.64 | 8.14 | 331.14 | 0.2804 | -1462.7 | 999999 | |
| 5 | -49 | 3 | -49 | 18.01 | 27.39 | 7.90 | 332.02 | 0.2797 | -1454.0 | 999999 | |
| 0 | 4 | 0 | 2 | 19.16 | 27.36 | 7.86 | 334.02 | 0.2964 | -703.0 | -578.9 | |
| 31 | -49 | 16 | -49 | 17.69 | 26.88 | 7.38 | 333.03 | 0.2709 | -2227.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
