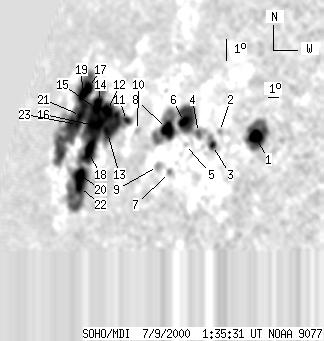

SOHO MDI 2000-07-09 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186 | 927 | 269 | 1298 | 18.39 | 310.14 | -69.36 | 71.68 | 0.9337 | -397.8 | -233.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 77 | 11 | 70 | 18.89 | 323.35 | -56.14 | 69.88 | 0.8389 | 968.9 | 409.6 | |
| 0 | 4 | 0 | 4 | 18.94 | 320.49 | -59.00 | 70.23 | 0.8636 | 466.0 | 353.7 | |
| 4 | 17 | 3 | 16 | 18.34 | 320.26 | -59.24 | 70.94 | 0.8650 | 419.8 | 31.9 | |
| 0 | 11 | 0 | 11 | 18.80 | 318.81 | -60.69 | 70.59 | 0.8771 | -515.0 | -300.2 | |
| 0 | 2 | 0 | 2 | 18.26 | 318.01 | -61.49 | 71.30 | 0.8829 | -565.0 | -542.3 | |
| 9 | 63 | 10 | 67 | 19.17 | 317.25 | -62.25 | 70.35 | 0.8895 | -811.4 | -415.1 | |
| 0 | 6 | 0 | 7 | 17.06 | 317.30 | -62.19 | 72.72 | 0.8875 | -425.0 | -335.2 | |
| 11 | 79 | 12 | 89 | 18.80 | 315.92 | -63.58 | 70.90 | 0.8990 | -525.9 | -184.8 | |
| 0 | 8 | 0 | 9 | 17.24 | 316.10 | -63.40 | 72.62 | 0.8967 | -469.0 | -402.2 | |
| 0 | 5 | 0 | 6 | 18.56 | 313.20 | -66.30 | 71.39 | 0.9176 | 295.0 | 216.6 | |
| 3 | 655 | 4 | 1017 | 18.89 | 311.74 | -67.76 | 71.14 | 0.9271 | 497.0 | -275.6 | |
| 6 | -11 | 8 | -11 | 19.16 | 309.25 | -70.25 | 71.00 | 0.9418 | 76.2 | 999999 | |
| 10 | -11 | 14 | -11 | 18.29 | 310.06 | -69.44 | 71.88 | 0.9369 | -647.7 | 999999 | |
| 8 | -11 | 12 | -11 | 19.44 | 307.78 | -71.72 | 70.76 | 0.9497 | 232.9 | 999999 | |
| 6 | -11 | 10 | -11 | 19.11 | 307.86 | -71.64 | 71.11 | 0.9492 | -487.3 | 999999 | |
| 39 | -11 | 59 | -11 | 18.47 | 308.25 | -71.25 | 71.77 | 0.9470 | -789.7 | 999999 | |
| 10 | -11 | 17 | -11 | 19.91 | 305.80 | -73.70 | 70.35 | 0.9595 | 358.8 | 999999 | |
| 21 | -11 | 31 | -11 | 17.41 | 308.49 | -71.01 | 72.89 | 0.9455 | -682.0 | 999999 | |
| 8 | -11 | 15 | -11 | 19.58 | 305.28 | -74.22 | 70.71 | 0.9618 | 44.8 | 999999 | |
| 16 | -11 | 24 | -11 | 16.41 | 308.35 | -71.15 | 73.95 | 0.9461 | -517.9 | 999999 | |
| 9 | -11 | 16 | -11 | 18.75 | 305.99 | -73.51 | 71.56 | 0.9584 | -618.5 | 999999 | |
| 7 | -11 | 11 | -11 | 15.93 | 308.63 | -70.87 | 74.45 | 0.9445 | -627.3 | 999999 | |
| 7 | -11 | 12 | -11 | 18.37 | 305.98 | -73.52 | 71.95 | 0.9584 | -499.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
