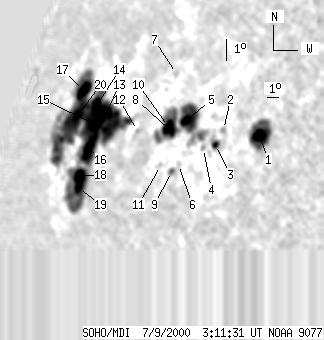

SOHO MDI 2000-07-09 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168 | 984 | 231 | 1323 | 18.34 | 310.21 | -68.40 | 71.69 | 0.9281 | -428.4 | -261.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-09 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 78 | 10 | 69 | 18.90 | 323.36 | -55.26 | 69.72 | 0.8309 | 995.2 | 433.6 | |
| 0 | 5 | 0 | 5 | 18.99 | 320.55 | -58.07 | 70.04 | 0.8558 | 521.0 | 322.1 | |
| 3 | 10 | 3 | 9 | 18.36 | 320.26 | -58.36 | 70.82 | 0.8576 | 335.1 | 249.6 | |
| 0 | 3 | 0 | 3 | 18.14 | 319.40 | -59.21 | 71.18 | 0.8645 | 133.0 | 249.1 | |
| 9 | 101 | 10 | 106 | 19.18 | 317.25 | -61.37 | 70.24 | 0.8827 | -836.9 | -378.8 | |
| 0 | 2 | 0 | 2 | 17.39 | 317.72 | -60.89 | 72.23 | 0.8775 | -705.0 | -590.1 | |
| 0 | 4 | 0 | 5 | 21.03 | 315.11 | -63.50 | 68.42 | 0.9001 | -23.0 | -68.4 | |
| 5 | 77 | 5 | 83 | 18.64 | 316.44 | -62.18 | 70.95 | 0.8885 | -796.5 | -184.0 | |
| 0 | 7 | 0 | 7 | 17.08 | 317.29 | -61.32 | 72.63 | 0.8807 | -411.0 | -407.4 | |
| 13 | -8 | 15 | -8 | 18.86 | 315.93 | -62.69 | 70.75 | 0.8925 | -507.3 | 999999 | |
| 0 | 2 | 0 | 2 | 17.26 | 316.21 | -62.40 | 72.52 | 0.8892 | -499.0 | -443.9 | |
| 0 | 2 | 0 | 3 | 18.53 | 313.16 | -65.45 | 71.36 | 0.9119 | 256.0 | 295.0 | |
| 8 | 693 | 11 | 1029 | 19.09 | 309.29 | -69.33 | 71.02 | 0.9365 | 65.6 | -311.4 | |
| 9 | -13 | 14 | -13 | 19.26 | 307.88 | -70.74 | 70.92 | 0.9445 | -48.2 | 999999 | |
| 39 | -13 | 57 | -13 | 18.49 | 308.37 | -70.24 | 71.70 | 0.9415 | -849.6 | 999999 | |
| 19 | -13 | 27 | -13 | 17.51 | 308.52 | -70.09 | 72.75 | 0.9404 | -777.7 | 999999 | |
| 19 | -13 | 32 | -13 | 19.74 | 305.56 | -73.05 | 70.50 | 0.9564 | 240.2 | 999999 | |
| 18 | -13 | 26 | -13 | 16.34 | 308.41 | -70.21 | 73.99 | 0.9408 | -585.2 | 999999 | |
| 10 | -13 | 14 | -13 | 15.86 | 308.67 | -69.95 | 74.49 | 0.9393 | -631.6 | 999999 | |
| 4 | -13 | 7 | -13 | 18.72 | 305.87 | -72.74 | 71.57 | 0.9547 | -664.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
