SOHO MDI 2000-07-09 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 130 | 1070 | 82 | 675 | -18.32 | 49.05 | 31.32 | 233.22 | 0.6183 | -568.8 | -193.3 | |
|
previous
or next observation for the same group /

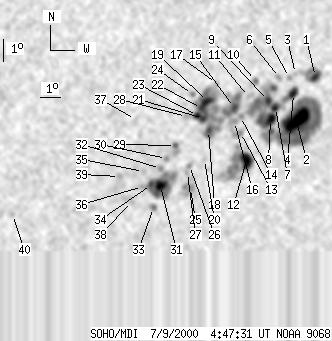

back to the solar disc SOHO MDI 2000-07-09 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 33 | 5 | 21 | -16.25 | 52.12 | 34.39 | 238.52 | 0.6381 | -930.9 | -804.2 | |
| 39 | 457 | 25 | 293 | -18.09 | 51.55 | 33.82 | 235.59 | 0.6436 | -1403.8 | -557.0 | |
| 0 | 7 | 0 | 5 | -16.08 | 51.09 | 33.36 | 238.02 | 0.6252 | -707.0 | -646.0 | |
| 9 | -2 | 5 | -2 | -16.93 | 51.16 | 33.43 | 236.88 | 0.6315 | -1081.4 | 999999 | |
| 0 | 3 | 0 | 2 | -16.24 | 50.83 | 33.09 | 237.60 | 0.6231 | -770.0 | -790.4 | |
| 0 | 5 | 0 | 3 | -16.22 | 50.33 | 32.60 | 237.25 | 0.6173 | -780.0 | -879.1 | |
| 4 | -2 | 3 | -2 | -17.49 | 50.38 | 32.65 | 235.51 | 0.6265 | -1397.0 | 999999 | |
| 9 | -2 | 6 | -2 | -17.99 | 50.24 | 32.51 | 234.71 | 0.6284 | -1357.2 | 999999 | |
| 5 | -2 | 3 | -2 | -17.18 | 49.97 | 32.24 | 235.63 | 0.6198 | -1484.7 | 999999 | |
| 0 | 11 | 0 | 7 | -16.30 | 49.18 | 31.44 | 236.23 | 0.6045 | -997.0 | -638.9 | |
| 0 | 5 | 0 | 3 | -16.97 | 48.96 | 31.23 | 235.11 | 0.6068 | -227.0 | -296.7 | |
| 16 | 101 | 10 | 64 | -19.72 | 49.42 | 31.69 | 231.73 | 0.6321 | -1137.4 | -751.4 | |
| 0 | 9 | 0 | 6 | -18.50 | 48.87 | 31.13 | 232.91 | 0.6169 | -842.0 | -767.7 | |
| 0 | 5 | 0 | 3 | -17.81 | 48.73 | 31.00 | 233.74 | 0.6103 | -725.0 | -728.0 | |
| 6 | 211 | 4 | 129 | -17.41 | 48.36 | 30.63 | 233.98 | 0.6033 | -266.1 | 401.6 | |
| 0 | 15 | 0 | 9 | -18.01 | 48.48 | 30.75 | 233.24 | 0.6090 | -560.0 | -469.5 | |
| 0 | 4 | 0 | 3 | -16.36 | 47.31 | 29.58 | 234.59 | 0.5834 | 815.0 | 669.9 | |
| 3 | -15 | 2 | -15 | -18.36 | 47.29 | 29.56 | 231.73 | 0.5985 | 300.3 | 999999 | |
| 7 | -15 | 4 | -15 | -17.11 | 47.01 | 29.28 | 233.24 | 0.5857 | 1416.8 | 999999 | |
| 0 | 5 | 0 | 3 | -19.60 | 47.34 | 29.61 | 230.08 | 0.6091 | -809.0 | -510.2 | |
| 3 | -15 | 2 | -15 | -17.83 | 46.95 | 29.22 | 232.16 | 0.5907 | 664.1 | 999999 | |
| 3 | -15 | 2 | -15 | -17.40 | 46.78 | 29.05 | 232.61 | 0.5853 | 1511.0 | 999999 | |
| 5 | -15 | 3 | -15 | -17.69 | 46.64 | 28.91 | 232.07 | 0.5861 | 1173.7 | 999999 | |
| 0 | 3 | 0 | 2 | -16.79 | 46.25 | 28.52 | 233.00 | 0.5745 | 1123.0 | 875.9 | |
| 0 | 25 | 0 | 16 | -20.84 | 46.92 | 29.19 | 228.06 | 0.6149 | -32.0 | 310.3 | |
| 0 | 4 | 0 | 3 | -19.84 | 46.66 | 28.93 | 229.15 | 0.6038 | 409.0 | 311.8 | |
| 0 | 4 | 0 | 2 | -20.14 | 46.63 | 28.89 | 228.71 | 0.6060 | -632.0 | -453.2 | |
| 0 | 7 | 0 | 4 | -17.72 | 46.12 | 28.39 | 231.55 | 0.5805 | 942.0 | 786.0 | |
| 0 | 13 | 0 | 8 | -18.95 | 45.82 | 28.09 | 229.55 | 0.5874 | 1208.0 | 853.5 | |
| 0 | 6 | 0 | 4 | -19.50 | 45.50 | 27.76 | 228.49 | 0.5886 | 648.0 | 642.7 | |
| 9 | 84 | 6 | 52 | -20.66 | 45.43 | 27.70 | 226.88 | 0.5981 | 1243.8 | 516.2 | |
| 0 | 9 | 0 | 5 | -19.92 | 45.29 | 27.56 | 227.71 | 0.5901 | 791.0 | 663.0 | |
| 0 | 5 | 0 | 3 | -21.62 | 45.29 | 27.56 | 225.51 | 0.6052 | 782.0 | 705.2 | |
| 4 | -31 | 2 | -31 | -20.60 | 44.99 | 27.26 | 226.51 | 0.5931 | 1245.5 | 999999 | |
| 0 | 5 | 0 | 3 | -20.02 | 44.50 | 26.77 | 226.78 | 0.5829 | 354.0 | 460.3 | |
| 0 | 6 | 0 | 4 | -20.68 | 44.58 | 26.85 | 226.00 | 0.5896 | 1001.0 | 825.2 | |
| 0 | 8 | 0 | 5 | -17.77 | 43.74 | 26.01 | 229.11 | 0.5546 | 886.0 | 688.0 | |
| 0 | 13 | 0 | 8 | -21.32 | 44.18 | 26.45 | 224.76 | 0.5915 | 616.0 | 750.9 | |
| 0 | 4 | 0 | 3 | -20.21 | 43.41 | 25.67 | 225.39 | 0.5733 | 710.0 | 687.2 | |
| 0 | 3 | 0 | 2 | -21.73 | 38.71 | 20.98 | 217.89 | 0.5436 | 825.0 | 752.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
